RTC6 boards
Doc. Rev. 1.0.21 en-US
16 Appendix A: The RTC6 Ethernet Board
897

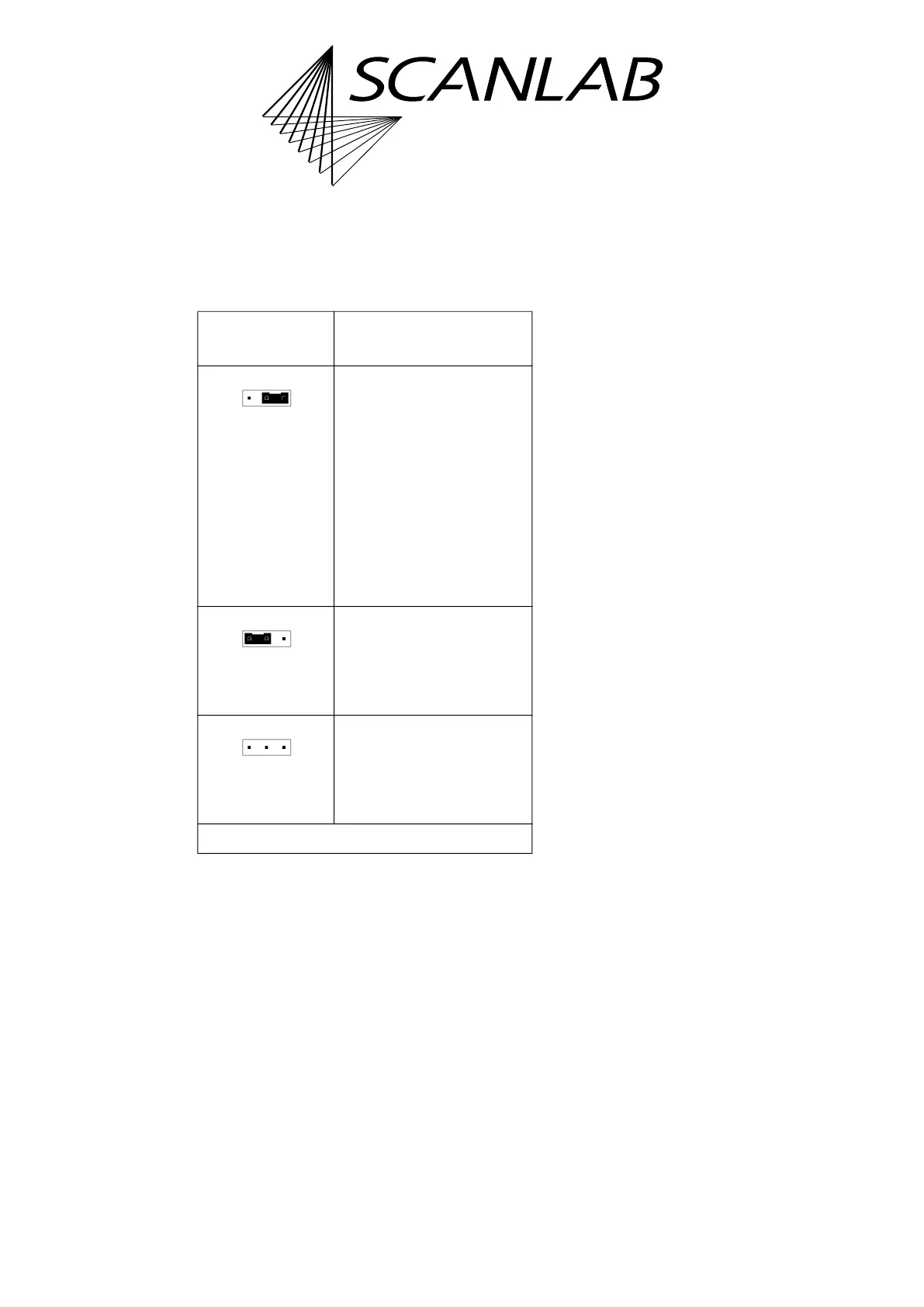

Jumper Field ’Force DHCP’
• Position on the board: lower side, see Figure 72,
number 11.
• Purpose: see the following table.
16.2.15Real-Time Clock
The RTC6 Ethernet Board features a real-time clock.
If the board is without power, the clock continues to
run for about > 1 week. With a Hardware Reset, this
time is automatically adopted (no time_update
required).
By time_update, the real-time clock is automatically
synchronized with the PC time. The accuracy can be
fine-tuned by time_control_eth.
Allowed
jumper setting
Effect
When the RTC6 Ethernet
Board is switched on, an
IP address is to be obtained
by DHCP:
(a)
“Force DHCP position”
For all configurable network
parameters (static IP,
pertaining net mask,
gateway, UDP and TCP ports),
the default settings are used
(instead the ones which are
saved on the board).
(a) See also page 899.
If user-defined network
settings are saved, these are
used when switching on the
RTC6 Ethernet Board.
Same as “open closed”.
*
Position as delivered by the factory.
open closed
closed open*
open open
