3 Function diagrams
3.17 Free function blocks

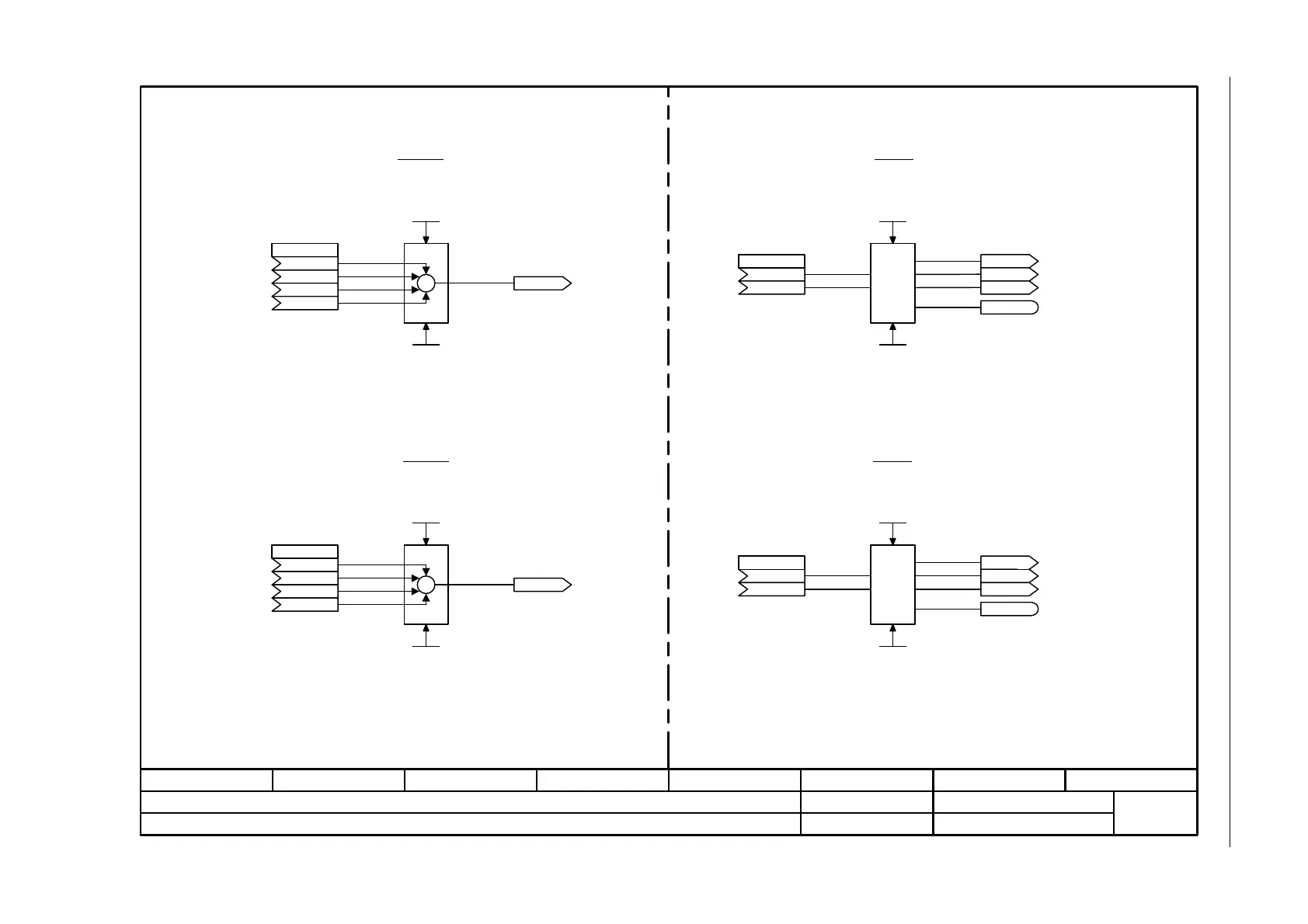

Fig. 3-144 7222 – MUL 0 ... 1, DIV 0 ... 1
- 7222 -
Function diagram
87654321
fp_7222_97_61.vsd
Free function blocks - Arithmetic function blocks
G120 CU240B/E-2
09.12.2015 V4.7.6
MUL 0 … 1, DIV 0 … 1
MUL 0
MUL 1
DIV 0
DIV 1
X1
X0
Y
MUL 0 RTG
5 ... 9999
p20112 (9999)
MUL 0 RunSeq
0 ... 32000
p20113 (270)
r20111
MUL 0 product Y
MUL 0 inputs
[0]
p20110
[1]
[2]
[3]
X2
X3
DIV 0 RTG
5 ... 9999
p20121 (9999)
DIV 0 RunSeq
0 ... 32000
p20122 (300)
r20119
DIV 0 quotient DIV 0 inputs
[0]
p20118
[1]
[0]
[1]
[2]
DIV 0 divisor=0 QF
r20120
Quotient
Multiple integer quotient
Division remainder
X1
X0
Y
MUL 1 RTG
5 ... 9999
p20116 (9999)
MUL 1 RunSeq
0 ... 32000
p20117 (280)
r20115
MUL 1 product Y
MUL 1 inputs
[0]
p20114
[1]
[2]
[3]
X2
X3
DIV 1 RTG
5 ... 9999
p20126 (9999)
DIV 1 RunSeq
0 ... 32000
p20127 (310)
r20124
DIV 1 quotient DIV 1 inputs
[0]
p20123
[1]
DIV 1 divisor=0 QF
r20125
Quotient
Multiple integer quotient
Division remainder
x
x
DIV 0
DIV 0
DIV 0
X2
X1
X1 / X2
YIN
Y
MOD
QF
X2
X1
X1 / X2
YIN
Y
MOD
QF
[0]
[1]
[2] DIV 0
DIV 0
DIV 0
MUL (multiplier) DIV (divider)
