RM0440 Rev 4 1799/2126
RM0440 Serial audio interface (SAI)
1858
FS signal role
The FS signal can have a different meaning depending on the FS function. FSDEF bit in the
SAI_xFRCR register selects which meaning it will have:
• 0: start of frame, like for instance the PCM/DSP, TDM, AC’97, audio protocols,
• 1: start of frame and channel side identification within the audio frame like for the I2S,
the MSB or LSB-justified protocols.
When the FS signal is considered as a start of frame and channel side identification within
the frame, the number of declared slots must be considered to be half the number for the left
channel and half the number for the right channel. If the number of bit clock cycles on half
audio frame is greater than the number of slots dedicated to a channel side, and TRIS = 0, 0
is sent for transmission for the remaining bit clock cycles in the SAI_xCR2 register.
Otherwise if TRIS = 1, the SD line is released to HI-Z. In reception mode, the remaining bit
clock cycles are not considered until the channel side changes.

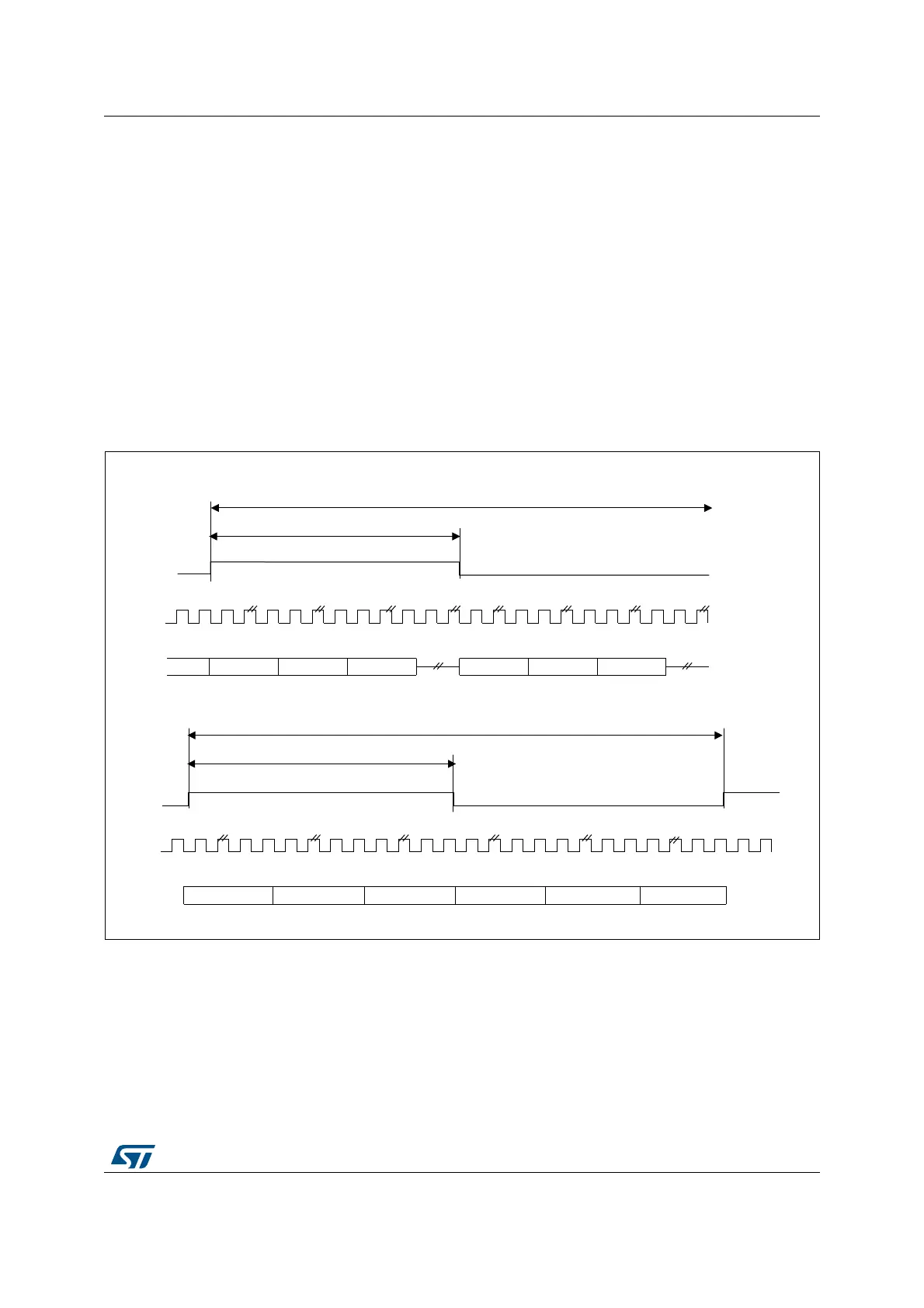

Figure 610. FS role is start of frame + channel side identification (FSDEF = TRIS = 1)
1. The frame length should be even.
If FSDEF bit in SAI_xFRCR is kept clear, so FS signal is equivalent to a start of frame, and if
the number of slots defined in NBSLOT[3:0] in SAI_xSLOTR multiplied by the number of bits
by slot configured in SLOTSZ[1:0] in SAI_xSLOTR is less than the frame size (bit FRL[7:0]
in the SAI_xFRCR register), then:
sck
slot
Audio frame
FS
Half of frame
Audio frame
FS
Half of frame
Number of slots not aligned with the audio frame
Number of slots aligned with the audio frame
MS30038V1
Slot 0
sck
slot
Slot 1 Slot 2
Slot 3 Slot 5Slot 4
Slot 0 ON Slot 1 OFF
Slot 2 ON
Slot 3 ON Slot 4 OFF Slot 5 ON
