RM0440 Rev 4 1375/2126
RM0440 General-purpose timers (TIM15/TIM16/TIM17)
1445

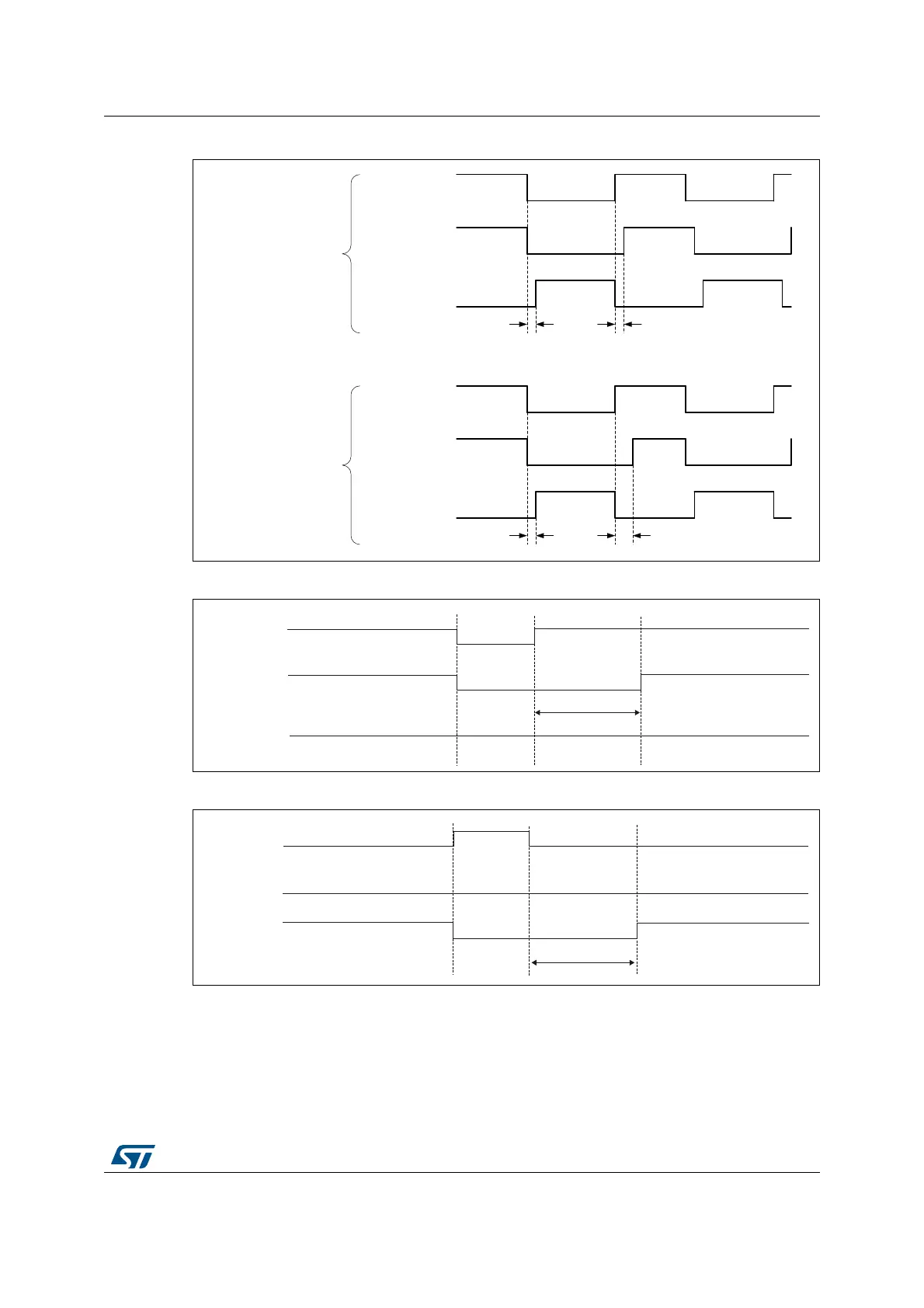

Figure 466. Asymmetrical deadtime
Figure 467. Dead-time waveforms with delay greater than the negative pulse.
Figure 468. Dead-time waveforms with delay greater than the positive pulse.
The dead-time delay is the same for each of the channels and is programmable with the
DTG bits in the TIMx_BDTR register. Refer to Section 30.8.14: TIMx break and dead-time
register (TIMx_BDTR)(x = 16 to 17) on page 1435 for delay calculation.
MSv62333V1
tim_ocxref
tim_ocx
tim_ocxn
tim_ocxref
tim_ocx
tim_ocxn
Symmetrical deadtime
(DTAE = 0)
Asymmetrical deadtime
(DTAE = 1)
DTG[7:0]
DTG[7:0]
DTG[7:0]DTGF[7:0]
MSv62334V1
delay
tim_ocxref
tim_ocx
tim_ocxn
MSv62335V1
delay
tim_ocxref
tim_ocx
tim_ocxn
