RM0440 Flexible static memory controller (FSMC)
571
Mode A - SRAM/FRAM/PSRAM (CRAM) OE toggling

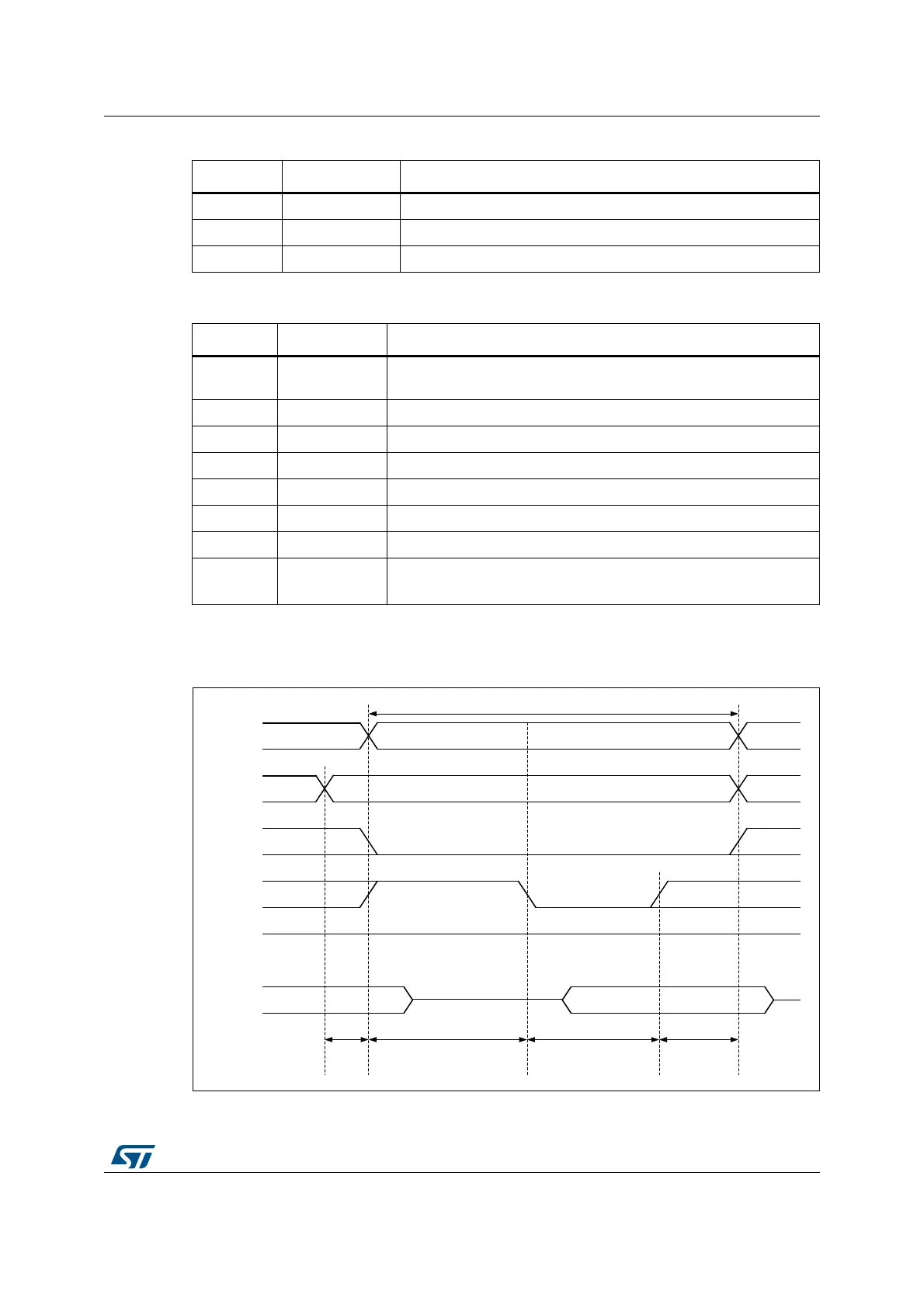

Figure 56. Mode A read access waveforms
1. NBL[1:0] are driven low during the read access
3:2 MTYP As needed, exclude 0x2 (NOR Flash memory)
1 MUXE 0x0
0 MBKEN 0x1
Table 130. FMC_BTRx bitfields (mode 1)
Bit number Bit name Value to set
31:30 DATAHLD
Duration of the data hold phase (DATAHLD HCLK cycles for read
accesses, DATAHLD+1 HCLK cycles for write accesses).
29:28 ACCMOD Don’t care
27:24 DATLAT Don’t care
23:20 CLKDIV Don’t care
19:16 BUSTURN Time between NEx high to NEx low (BUSTURN HCLK).
15:8 DATAST Duration of the second access phase (DATAST HCLK cycles).
7:4 ADDHLD Don’t care
3:0 ADDSET
Duration of the first access phase (ADDSET HCLK cycles).
Minimum value for ADDSET is 0.
Table 129. FMC_BCRx bitfields (mode 1) (continued)
Bit number Bit name Value to set
MSv41681V1
A[25:0]
Memory transaction
NBL[x:0]
NEx
NOE
Data driven by memory
NWE
Data bus
NBLSET
HCLK
cycles
ADDSET HCLK cycles DATAST HCLK cycles DATAHLD
HCLK cycles
High
