Queue of context: Behavior when a queue overflow occurs

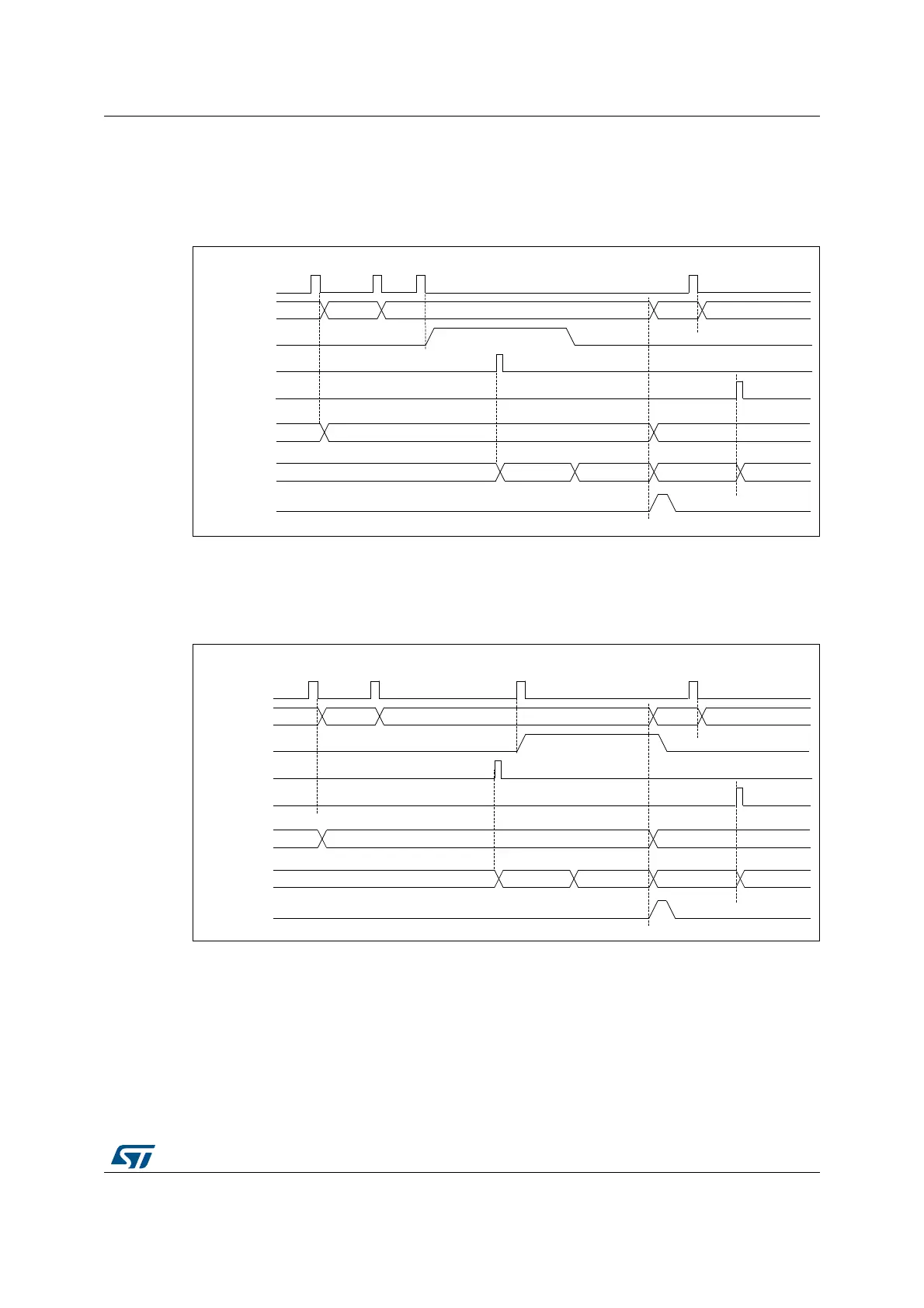

The Figure 101 and Figure 102 show the behavior of the context Queue if an overflow
occurs before or during a conversion.
Figure 101. Example of JSQR queue of context with overflow before conversion
1. Parameters:
P1: sequence of 2 conversions, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 2
P3: sequence of 3 conversions, hardware trigger 1
P4: sequence of 4 conversions, hardware trigger 1
Figure 102. Example of JSQR queue of context with overflow during conversion
1. Parameters:
P1: sequence of 2 conversions, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 2
P3: sequence of 3 conversions, hardware trigger 1
P4: sequence of 4 conversions, hardware trigger 1
