RM0440 Rev 4 879/2126

RM0440 High-resolution timer (HRTIM)

1083

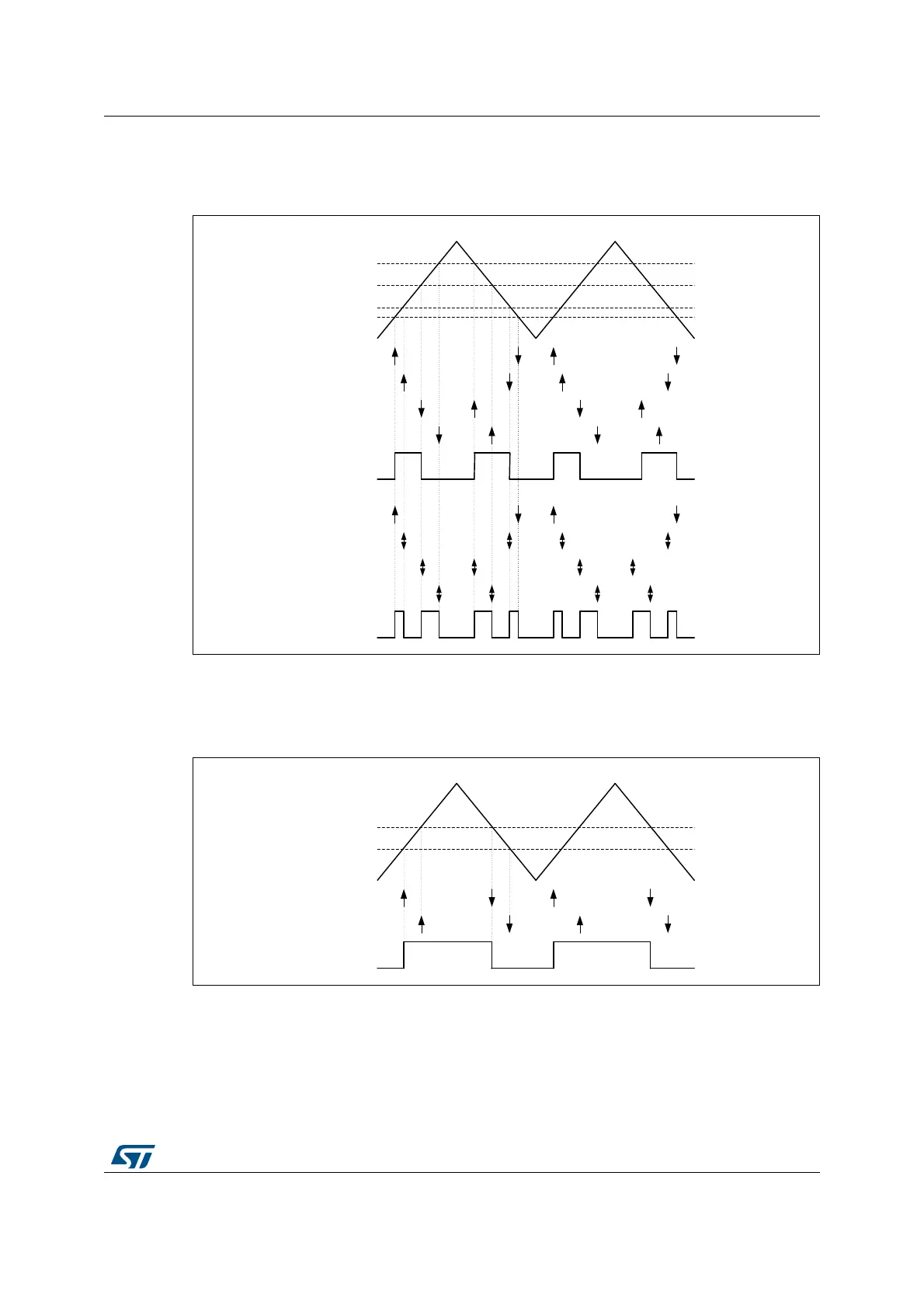

The Figure 206 below shows how to generate some more complex waveforms, using the 4

available compare units and the toggle mode.

Figure 206. Complex symmetric waveform in up-down counting mode

The Figure 207 shows how to generate an asymmetric waveform. In this case, it must be

noticed that it is necessary to have compare 2 value greater than compare 1 value for the

waveform to be asymmetric.

Figure 207. Asymmetric waveform in up-down counting mode

Note: For asymmetric operation, it is required that CMP2 > CMP1.

MSv45798V2

Counter

HRTIM_CHx1

Set on CMP1

Toggle on CMP4

HRTIM_CHx2

CMP1

CMP2

CMP3

CMP4

Set on CMP2

Reset on CMP3

Reset on CMP4

Toggle on CMP2

Toggle on CMP3

MSv47417V2
