RM0440 General-purpose timers (TIM2/TIM3/TIM4/TIM5)
1343
Figure 418. Counter reset Narrow index pulse (closer view, ARR = 0x07)

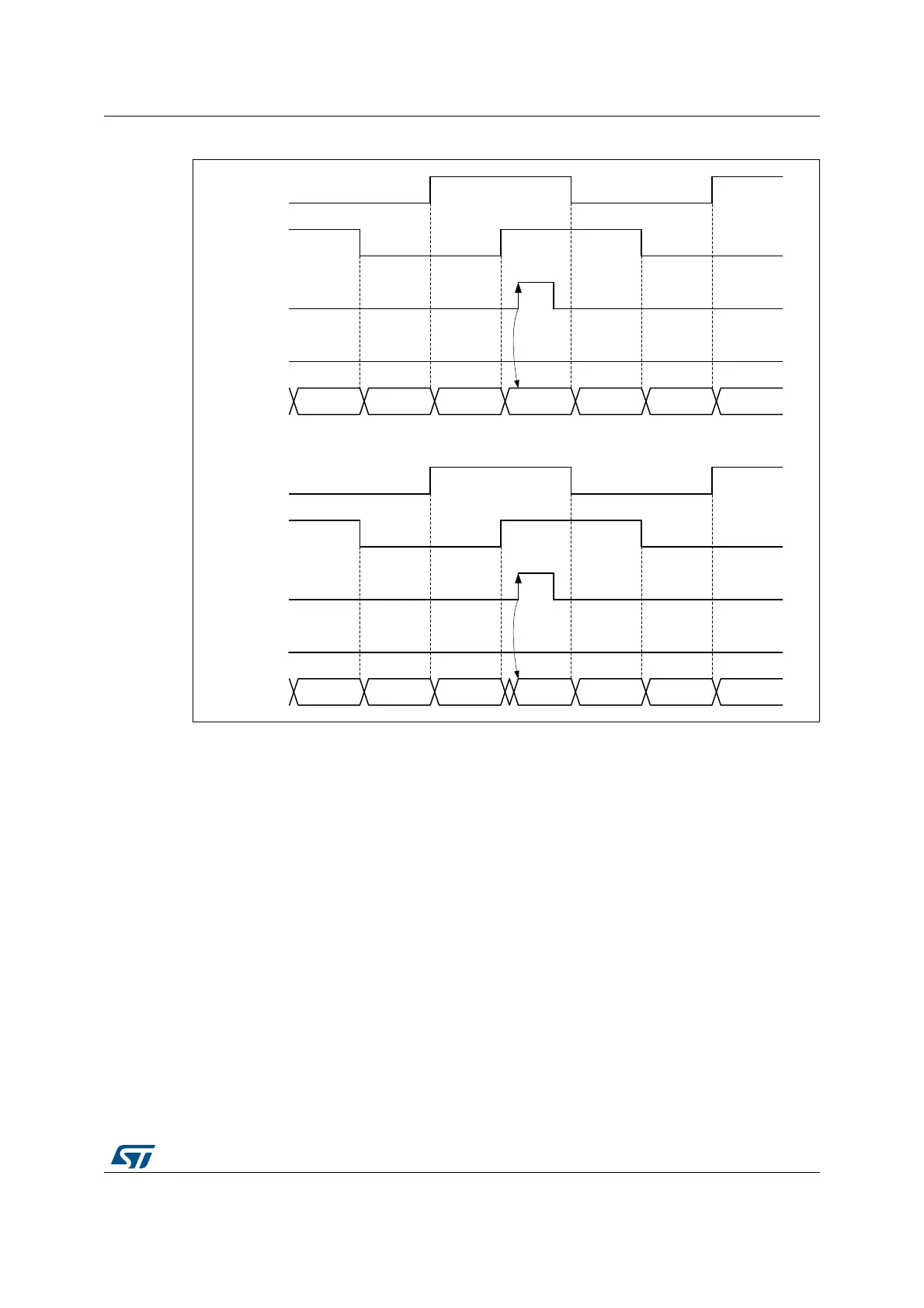

The Figure 419 below shows how the index is managed in x1 and x2 modes.
MSv45772V1
Channel A
Channel B
DIR bit
Index
Counter
4 5 6 1
3
2
7
Channel A
Channel B
DIR bit
Index
Counter
5 6 7 0 1
3
2
0
