Slave receiver
RXNE is set in I2C_ISR when the I2C_RXDR is full, and generates an interrupt if RXIE is
set in I2C_CR1. RXNE is cleared when I2C_RXDR is read.
When a STOP is received and STOPIE is set in I2C_CR1, STOPF is set in I2C_ISR and an
interrupt is generated.

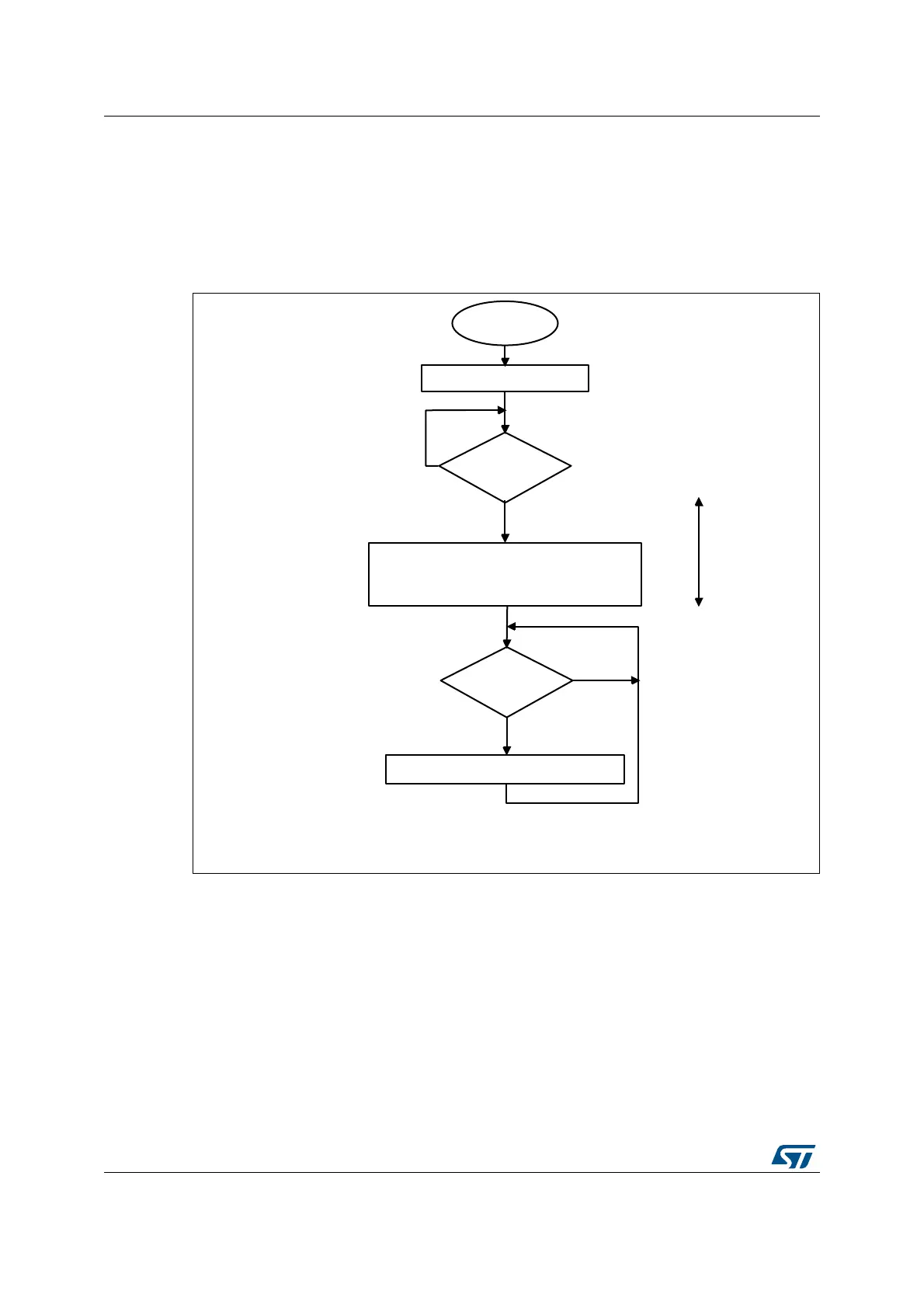

Figure 639. Transfer sequence flowchart for slave receiver with NOSTRETCH=0
MS19855V2
Slave initialization
Slave reception
Read ADDCODE and DIR in I2C_ISR
Set I2C_ICR.ADDRCF
Write I2C_RXDR.RXDATA
I2C_ISR.ADDR
=1?
No
Yes
I2C_ISR.RXNE
=1?
Yes
No
SCL
stretched
To Next Page
