Reset and clock control (RCC) RM0440
278/2126 RM0440 Rev 4
characteristics” section in your device datasheet.
2. The ADC clock can be derived from the AHB clock of the ADC bus interface, divided by a programmable
factor (1, 2 or 4). When the programmable factor is ‘1’, the AHB prescaler must be equal to ‘1’.
7.2.1 HSE clock
The high speed external clock signal (HSE) can be generated from two possible clock
sources:
• HSE external crystal/ceramic resonator
• HSE user external clock
The resonator and the load capacitors have to be placed as close as possible to the
oscillator pins in order to minimize output distortion and startup stabilization time. The
loading capacitance values must be adjusted according to the selected oscillator.

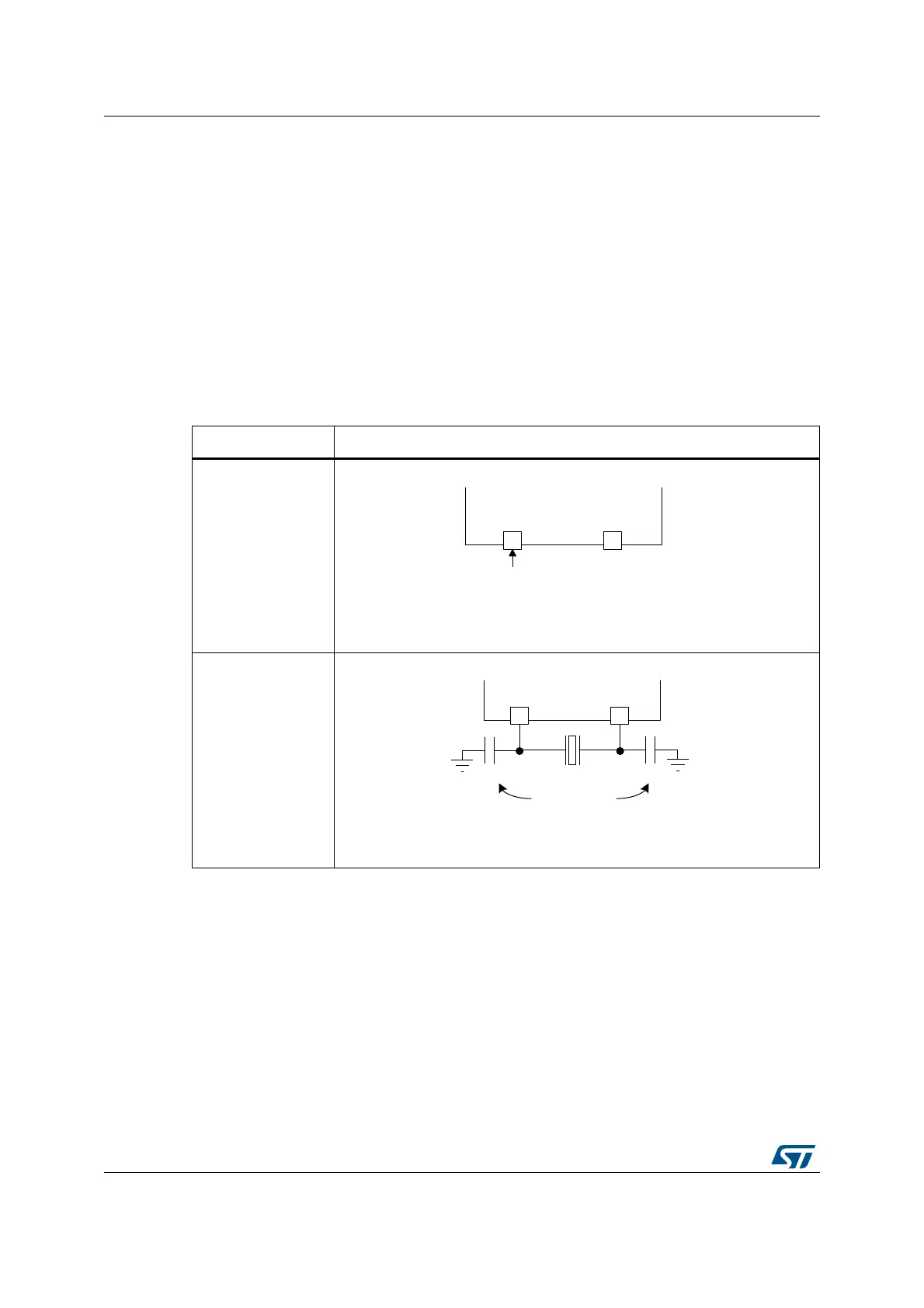

Figure 18. HSE/ LSE clock sources
Clock source Hardware configuration
External clock
Crystal/Ceramic
resonators
MSv31915V1
OSC_IN OSC_OUT
GPIO
External
source
MSv31916V1
OSC_IN OSC_OUT
CL1
CL2
Load
capacitors
