RM0440 Rev 4 2051/2126
RM0440 USB Type-C™ / USB Power Delivery interface (UCPD)
2079
Cable Reset
Cable Reset shown in the following figure is similar in format to Hard Reset, but unlike Hard
Reset it does not require a specific high-priority treatment.

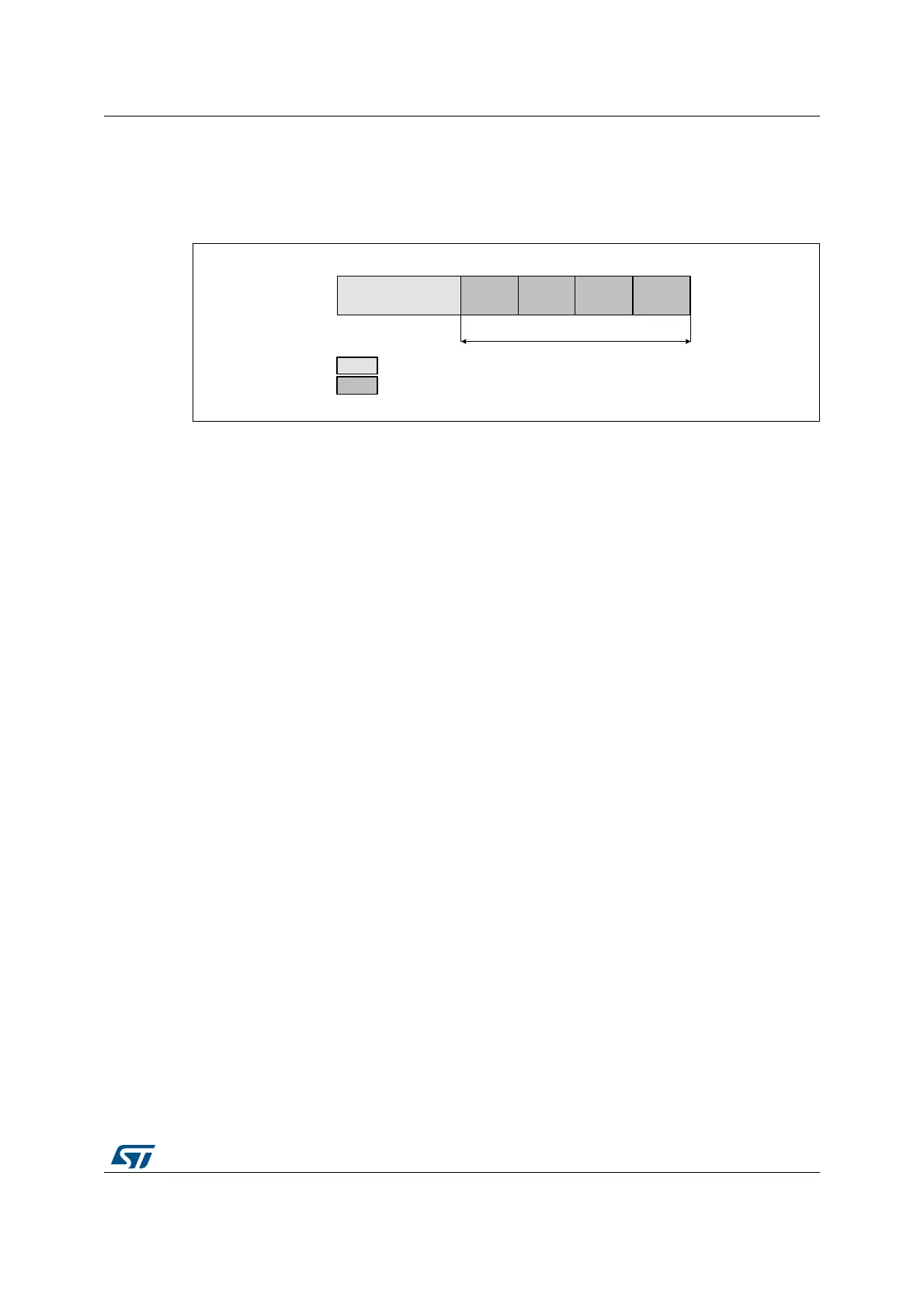

Figure 679. Line format of Cable Reset
Collision avoidance
The physical layer respects the tInterFrameGap delay between end of last-transmitted bit of
a Tx message, and the first bit of a following message.
It also checks the idle state of the CC line before starting transmission. The CC line is
considered idle if it shows less than three (nTransitionCount) transitions within
tTransitionWindow (12 to 20 μs). The Power Delivery specification revision 3.0 also requires
to manage the Rd value (source) and monitor Type-C voltage level for these Rp
modifications (at the sink).
Physical layer signaling schemes
The bit are signaled with bi-phase mark coding (BMC).
BIST
Depending on the BIST action required by the protocol layer, either of the following can be
run:
• a Tx BIST pattern test, achieved by writing TXMODE and TXSEND
• an Rx BIST pattern test, achieved by writing RXMODE to the correct value for RXBIST.
The two possible patterns supported in UCPD (corresponding to “BMC” mode) are:
• BIST Test Data (192 bit pattern), applies to Tx and Rx. In the case of Rx, the message
is received (but discarded rather than passing to the protocol layer, which must
nevertheless still generate a GoodCRC Tx message in acknowledgment).
• BIST Carrier Mode 2 (single pattern, infinite length message), applies to Tx only. As
opposed to Tx, the receiver in this mode simply ignores the CC line during this state.
BIST test data pattern
The test data pattern is not viewed as a special case in UCPD.
MSv45541V2
Preamble
(training for receiver)
RST-1
Legend:
Provided by the physical layer, not 4b5b-encoded
Provided by the physical layer, 4b5b-encoded
Cable Reset ordered set
Sync-1 RST-1 Sync-3
