RM0440 System window watchdog (WWDG)
1943
43.3.1 WWDG block diagram

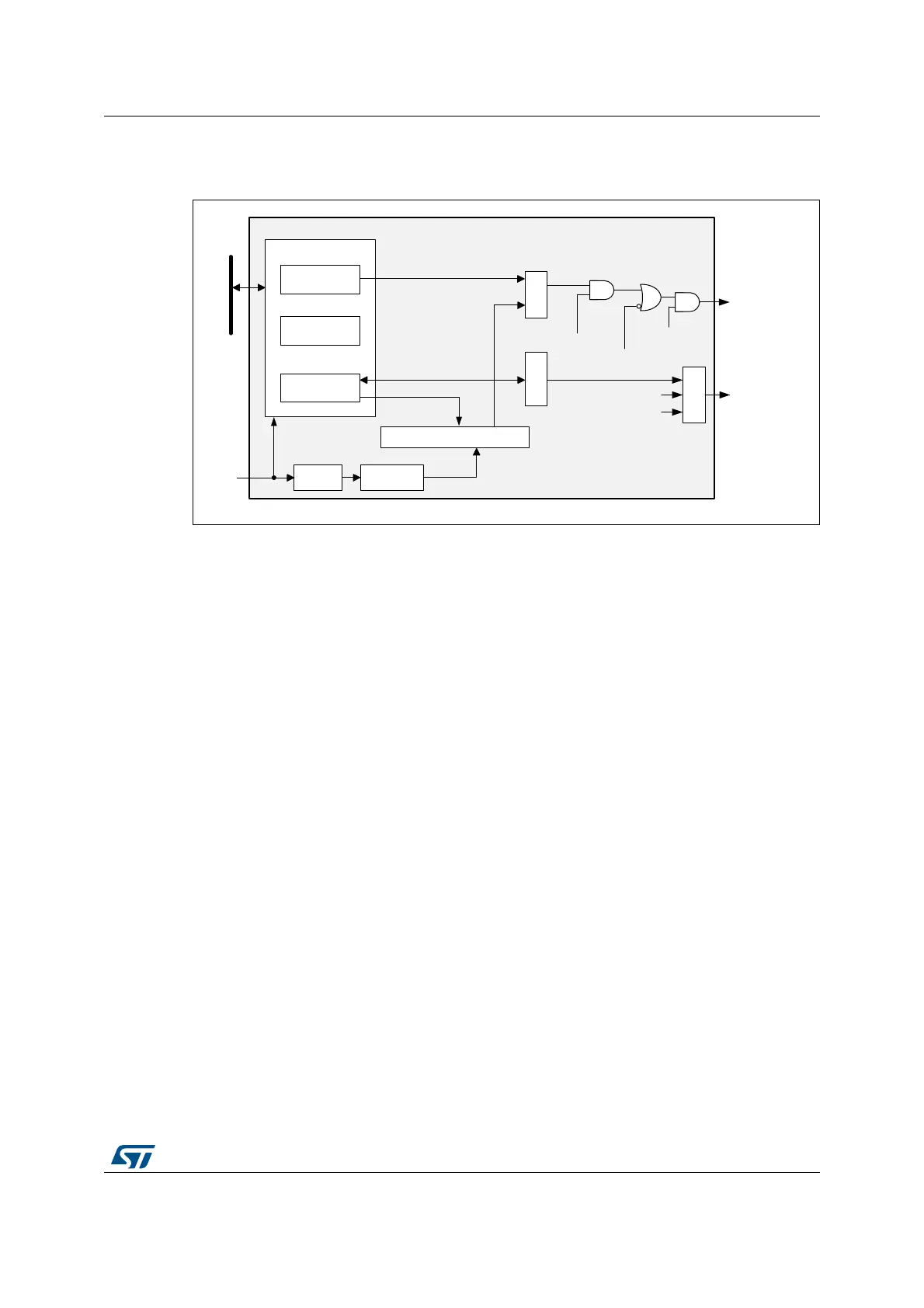

Figure 660. Watchdog block diagram
43.3.2 Enabling the watchdog
When the user option WWDG_SW selects “Software window watchdog”, the watchdog is
always disabled after a reset. It is enabled by setting the WDGA bit in the WWDG_CR
register, then it cannot be disabled again except by a reset.
When the user option WWDG_SW selects “Hardware window watchdog”, the watchdog is
always enabled after a reset, it cannot be disabled.
43.3.3 Controlling the down-counter
This down-counter is free-running, counting down even if the watchdog is disabled. When
the watchdog is enabled, the T6 bit must be set to prevent generating an immediate reset.
The T[5:0] bits contain the number of increments that represent the time delay before the
watchdog produces a reset. The timing varies between a minimum and a maximum value
due to the unknown status of the prescaler when writing to the WWDG_CR register (see
Figure 661). The WWDG configuration register (WWDG_CFR) contains the high limit of the
window: to prevent a reset, the down-counter must be reloaded when its value is lower than
the window register value and greater than 0x3F. Figure 661 describes the window
watchdog process.
Note: The T6 bit can be used to generate a software reset (the WDGA bit is set and the T6 bit is
cleared).
43.3.4 How to program the watchdog timeout
Use the formula in Figure 661 to calculate the WWDG timeout.
MS47214V1
7-bit DownCounter (CNT)
WWDG
pclk
APB bus
÷ 4096 ÷ 2
WDGTB
Write to WWDG_CR
CMP = 1 when
T[6:0] > W[6:0]
CMP
T[6:0]
preload
WWDG_CR
wwdg_out_rst
wwdg_it
= 0x40 ?
readback
WWDG_CFR
W[6:0]
cnt_out
Register interface
WWDG_SR
T6
T[6:0]
WDGA
EWI
Logic
EWIF
