Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 387
Expansion cards and backup units

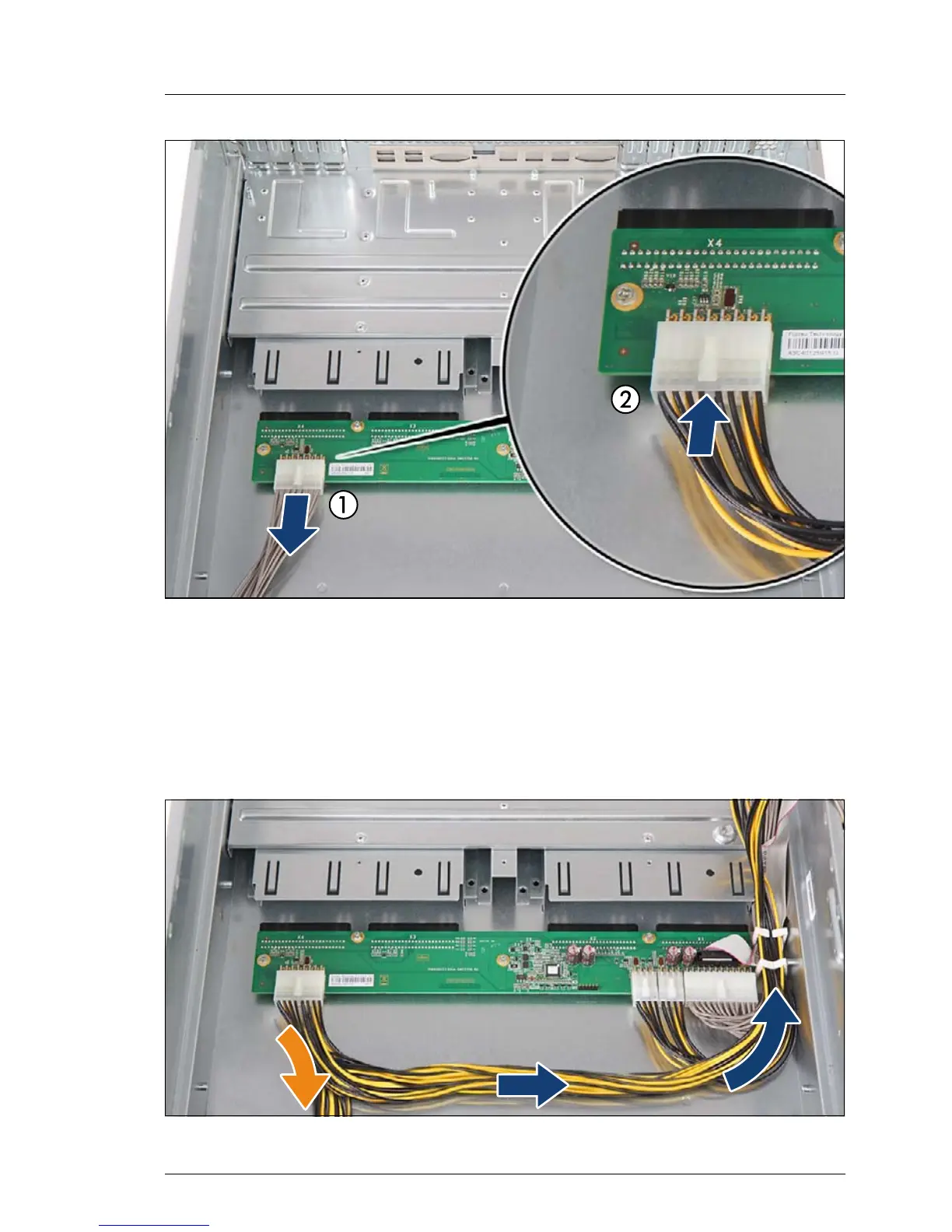

Figure 268: Installing power cable T26139-Y3952-V701 (A)
Ê Disconnect the HDD power cable T26139-Y3952-V601 from power
backplane connector X21 (1) and the SAS backplanes and remove it from
the system.
Ê Connect the HDD / GPGPU / coprocessor card power cable T26139-Y3952-
V701 to power backplane connector X21 (2).
Figure 269: Installing power cable T26139-Y3952-V701 (B)
