Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 443
Expansion cards and backup units
Ê Fit the three spacer bolts on the SAS RAID controller as shown and secure
each with a screw from the TFM kit.

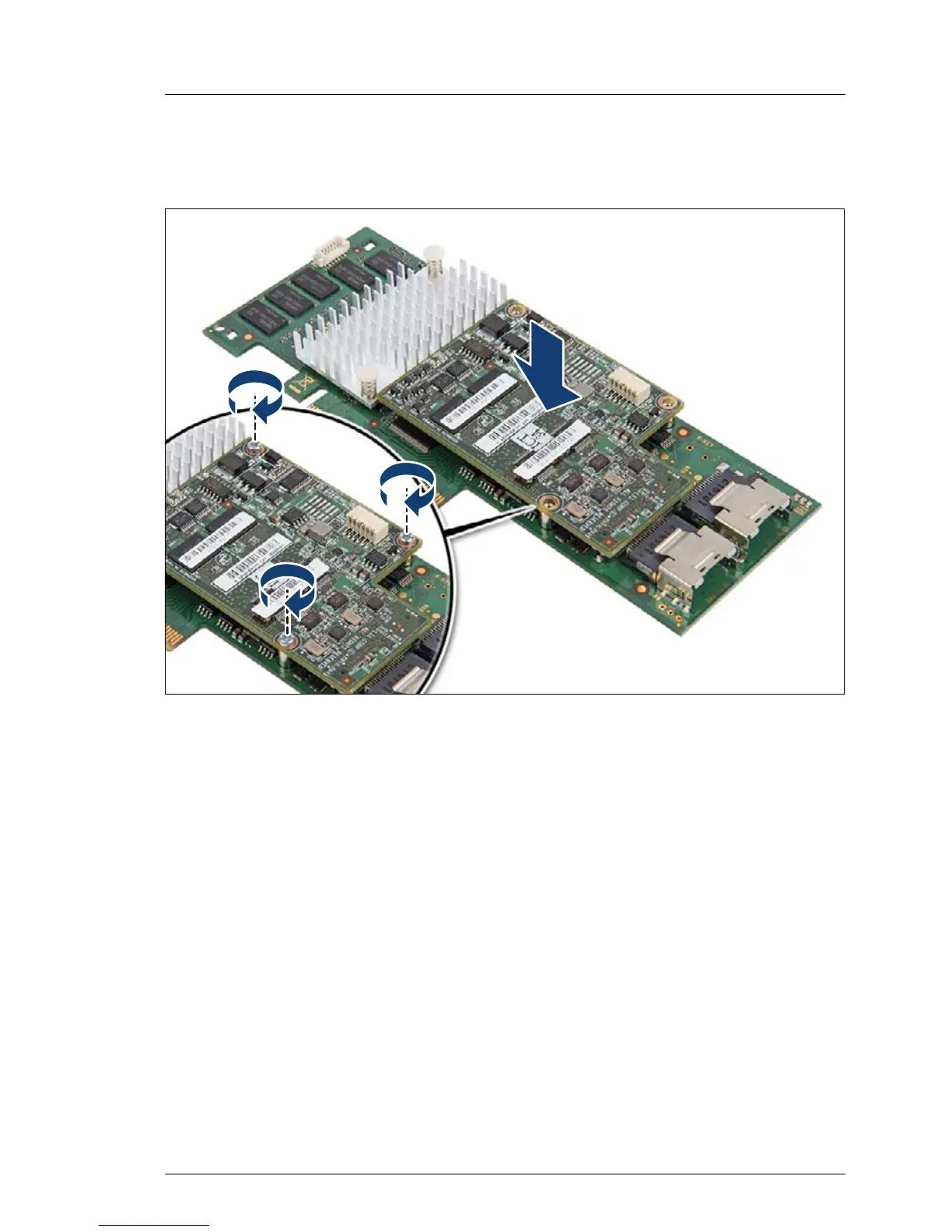

Figure 336: Mounting the TFM module (B)
Ê Attach the TFM module to the RAID controller as shown.
Ê Secure the TFM module on the spacer bolts with three screws from the TFM
kit.
