Fujitsu PRIMERGY RX350 S8

444 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Expansion cards and backup units

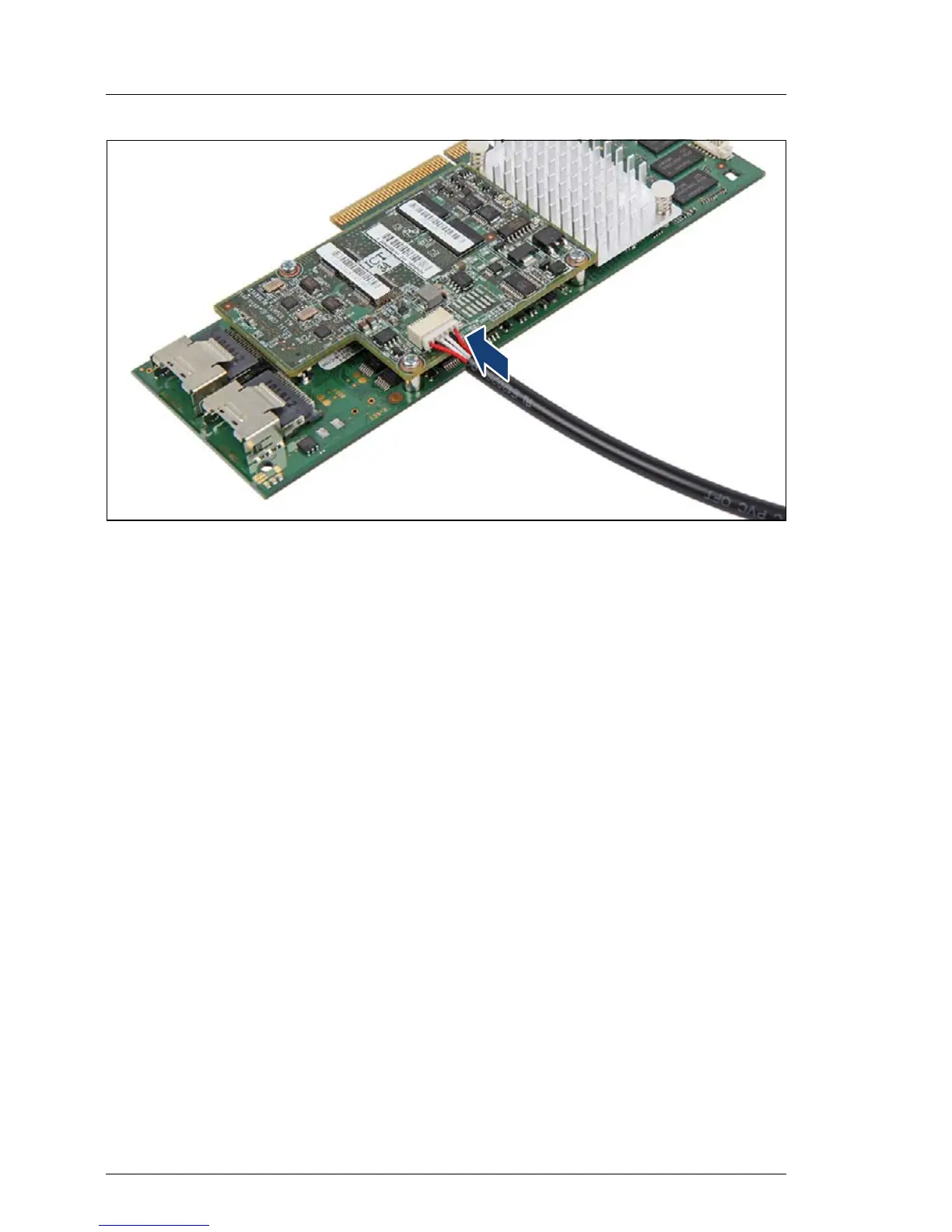

Figure 337: Mounting the TFM module (C)
Ê Connect the FBU adapter cable (T26139-Y4032-V1) to the TFM module.
Ê Reinstall the SAS RAID controller as described in sections "Installing the
SAS RAID controller" on page 426 or "Installing expansion cards" on
page 349.
Ê Connect the SAS cables to their original connectors on the SAS RAID
controller.
