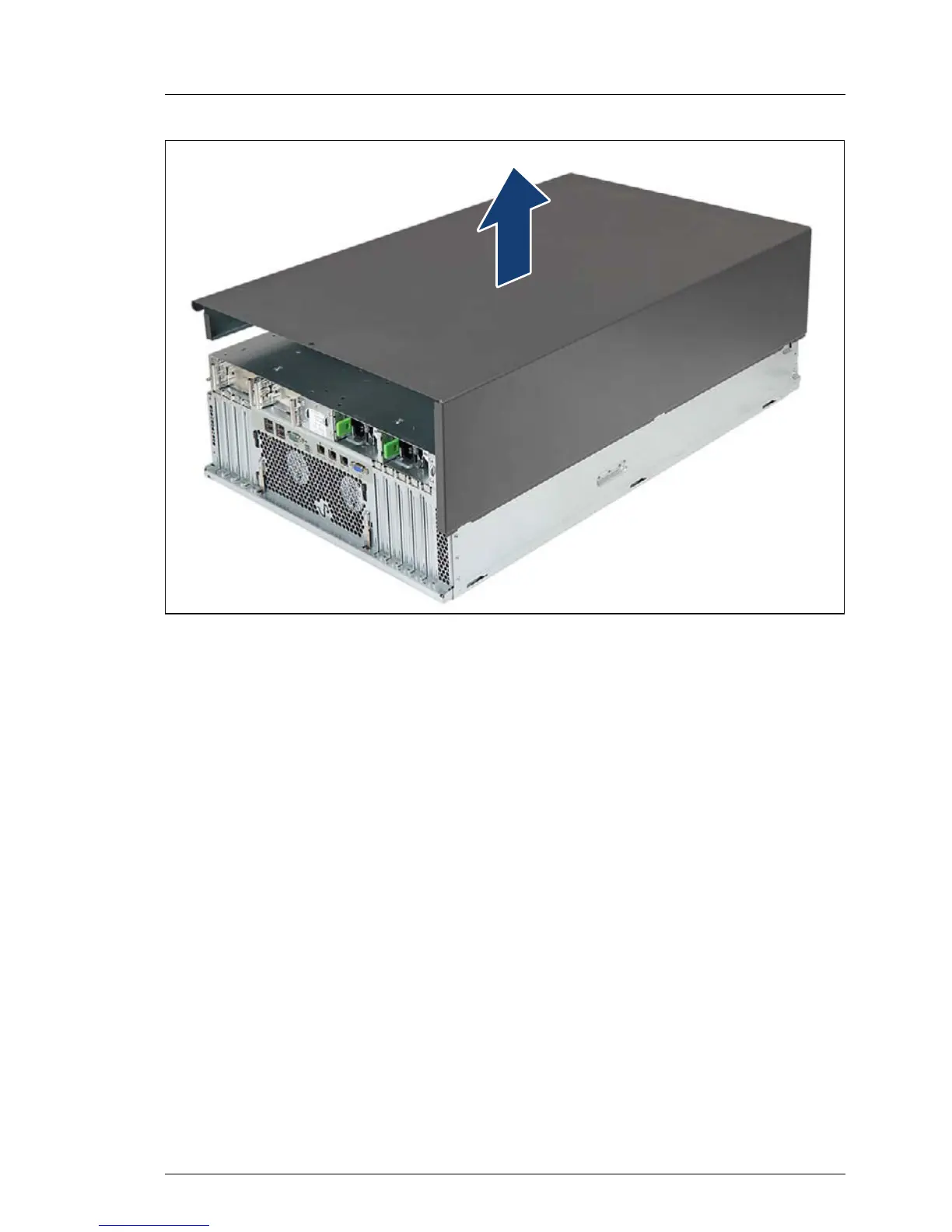

Figure 556: Removing the right side cover (D)
Ê Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
Ê Carefully turn the server upside down.
I At least two people are needed to turn over a fully equipped server.
Remove hard disk drives and power supply modules in order to
facilitate the task.
Ê Lift off and remove the right side cover as shown.
I The right side cover is no longer required.
Ê Leave the server in its upside down position.
