712
Upgrade and Mai
ntenance Manual
TX300 S
8 / RX350 S8
Converting a tower server to a rack server

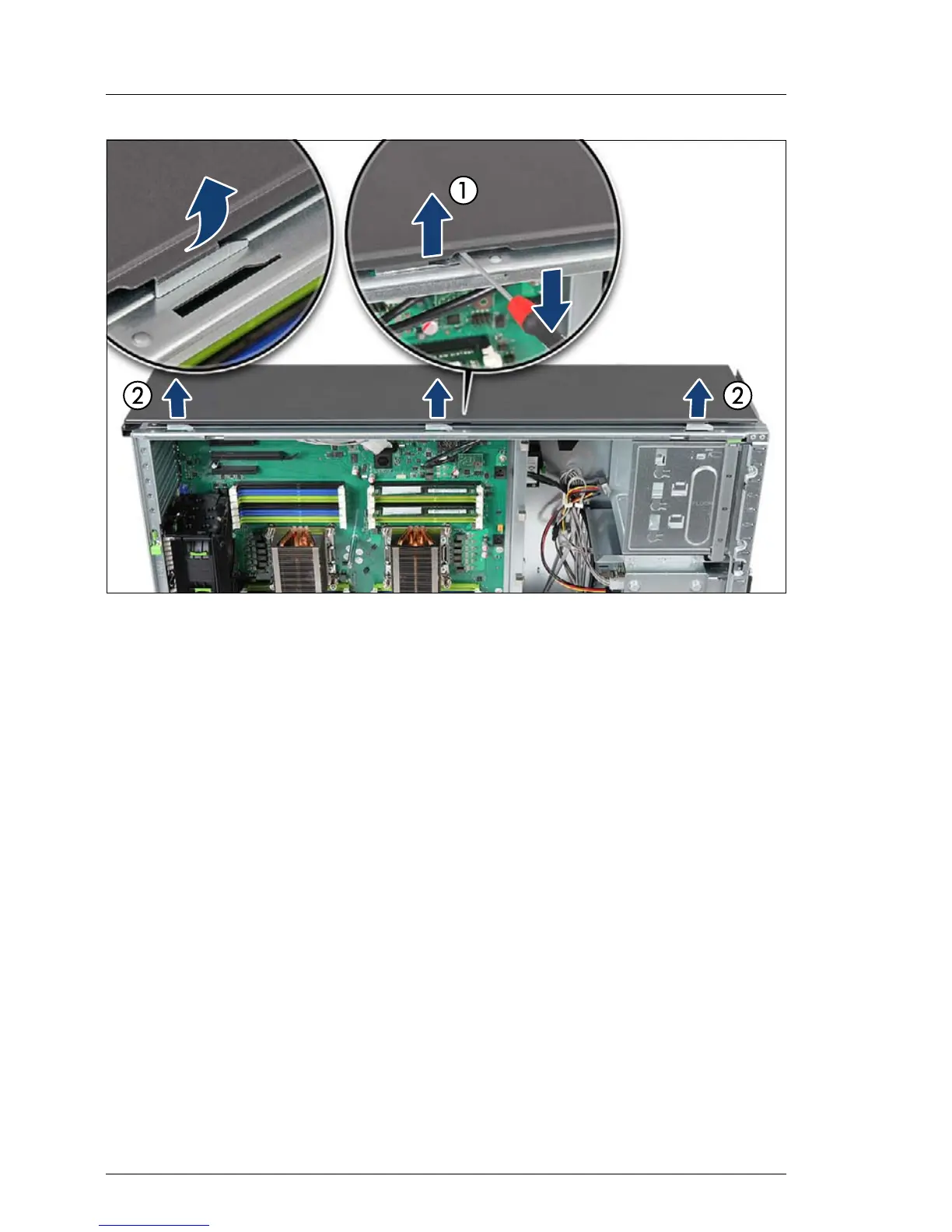

Figure 555: Removing the right side cover
(C)
Ê
Remove
the three hooks on the right s
ide cover from the sl
ot
s
on the upper
chassis edge:
Ê
Using a slotted screw driver
, slightly pry up on the middl
e hook until it
disengages (1).
Ê
Pull up on both ends of the right side cover to remove the left and right
hooks from the slots
on the upper chassis edge (2).
711
713
