Fujitsu PRIMERGY RX350 S8

766 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Cabling

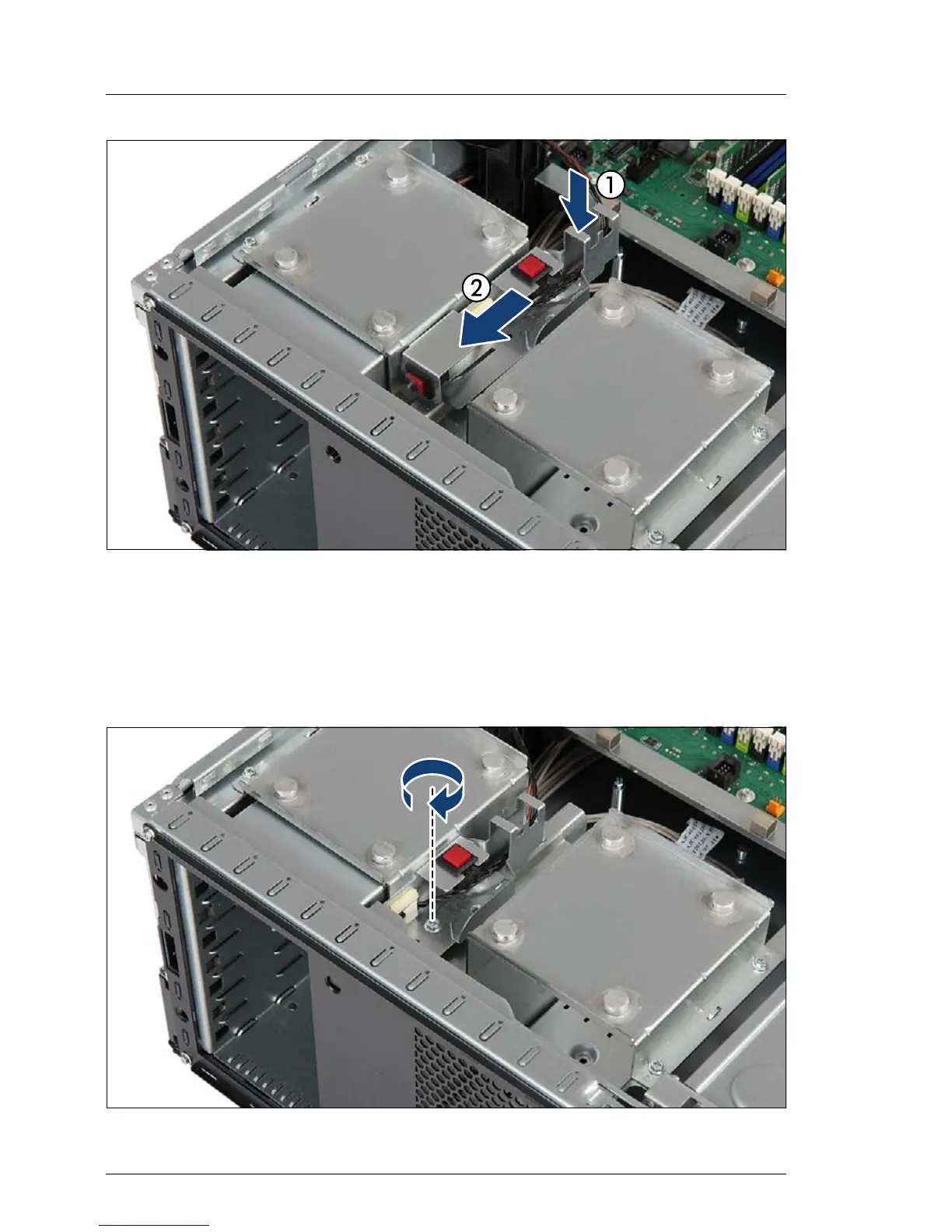

Figure 607: Installing the intrusion switch cable (A)
Ê Place the new intrusion switch holder on the HDD bay top cover as shown
(1).
Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).
Figure 608: Installing the intrusion switch cable (B)
