Ê Secure the intrusion switch holder on the HDD bay top cover with one
M3 x 4.5 mm screw.

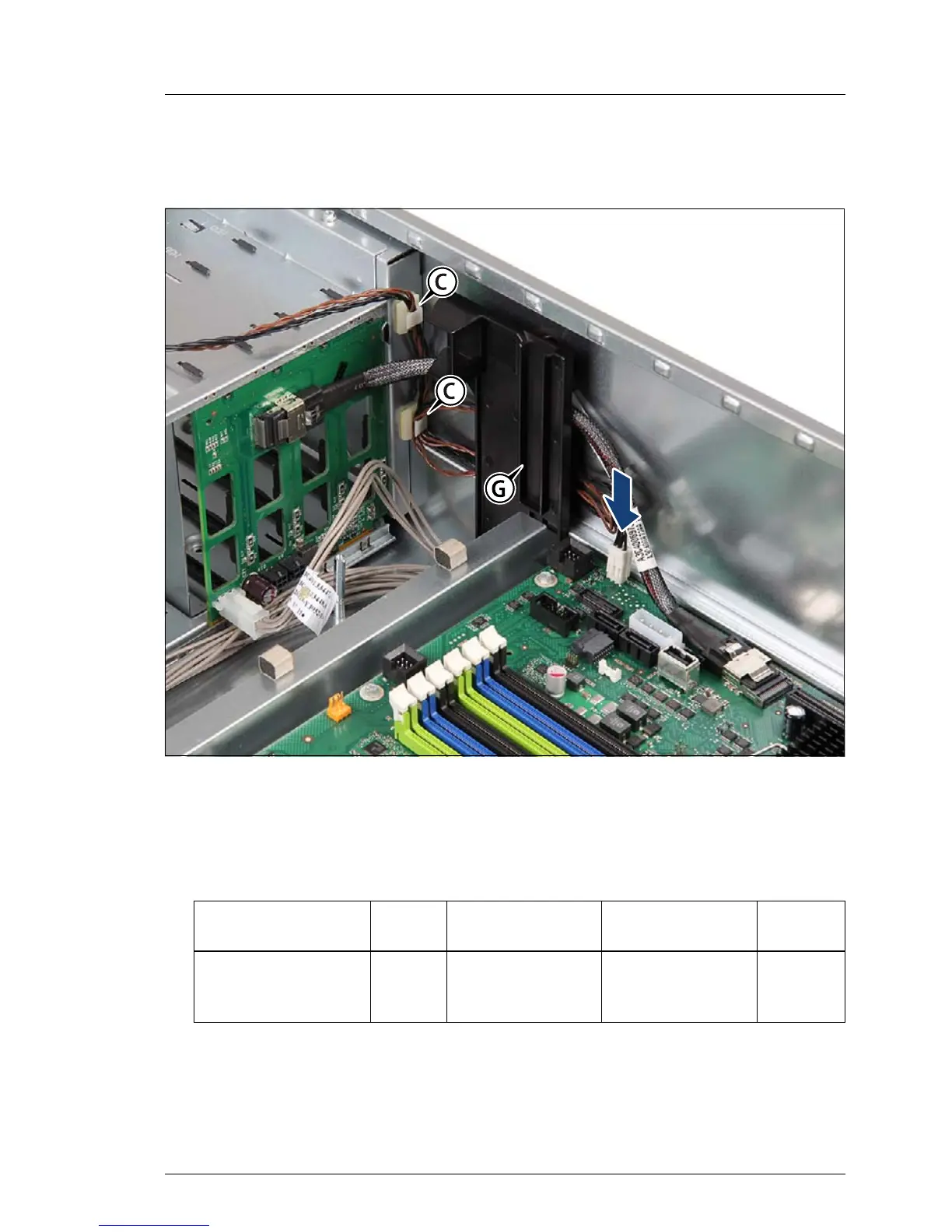

Figure 609: Connecting the intrusion switch cable
Ê Run the intrusion switch cable through the cable clamps (C) on the HDD
cage and the cable guide (G).
Ê Connect the intrusion switch cable to the system board:
Cable
(T26139-)
Cabling
list no.
from to
Cabling
plan
Intrusion switch cable
Y3922-V121
13
Intrusion switch
holder
System board
connector
INTRUSION
16.2.1
