Fujitsu PRIMERGY RX350 S8

770 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Appendix
3.5-inch HDD model

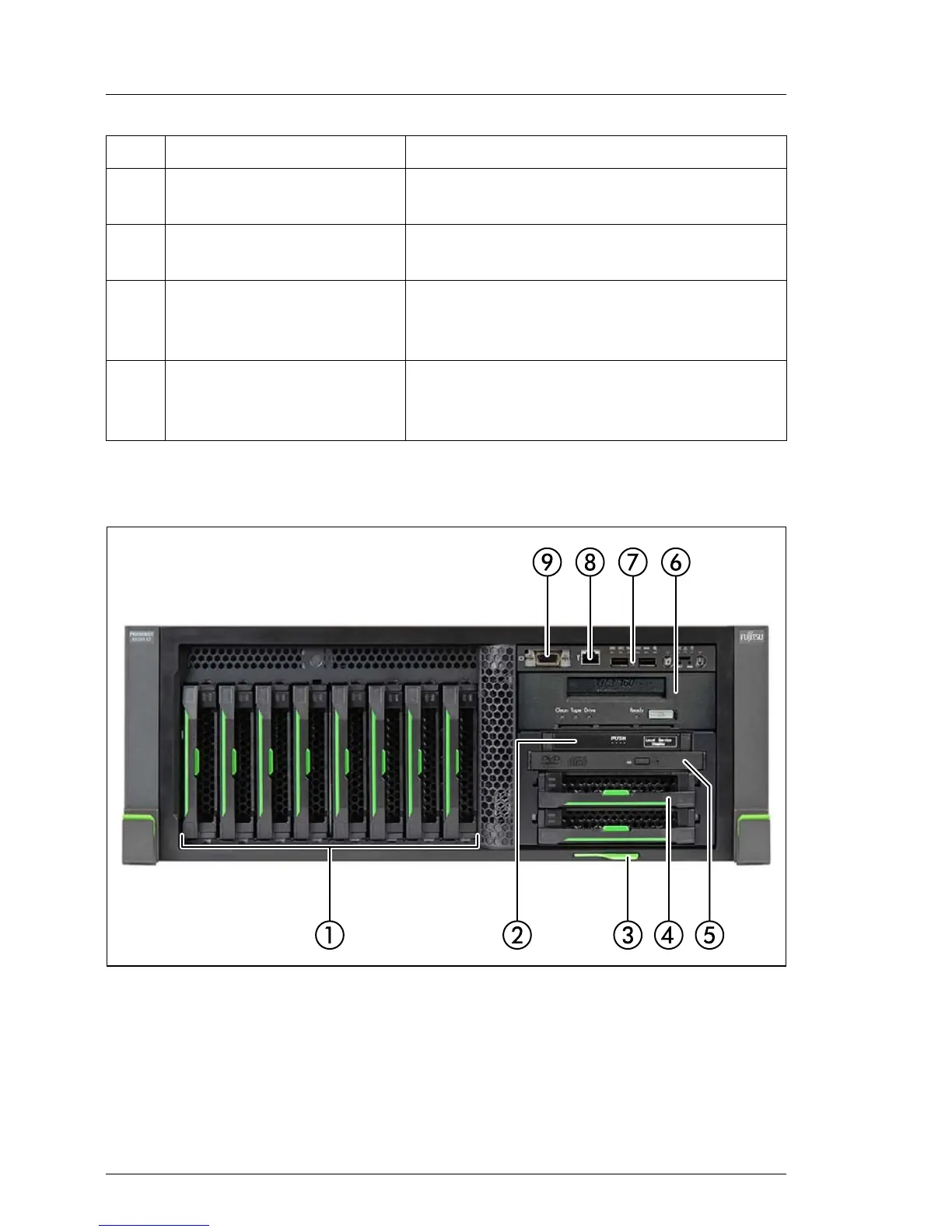

Figure 611: PRIMERGY TX300 S8 / RX350 S8 front - 3.5-inch HDD model
4
8x 2.5-inch HDD
extension box
"8x 2.5-inch HDDs / SSDs
(2 SAS backplanes)" on page 189
5
Front panel module:
2 USB connectors
"Replacing the front panel module" on
page 601
6
Front panel module:
Front Management LAN
connector (optional)
"Replacing the front LAN connector and
board" on page 630
7
Front panel module:
Front VGA connector
(optional)
"Replacing the front VGA connector" on
page 641
Pos. Component Reference
