Inficon HAPSITE Smart - 3.7 GC;MS Mode with Headspace Sampling System and Sample Loop in Portable Mode

3 - 36
IPN 074-397-P1G
HAPSITE Smart Operating Manual
3.7 GC/MS Mode with Headspace Sampling System and Sample
Loop in Portable Mode
The Headspace Sampling System is used to test liquid and soil samples. See
Chapter 13, Headspace Sampling System for more information on the Headspace
System. Refer to Section 2.6, Headspace Sampling System, on page 2-12 for
assembly instructions. Refer to Chapter 6, Methods, for additional information on
GC/MS methods.
1 Select 1. Run Method from the main menu on the front panel of the HAPSITE.
See Figure 3-47.

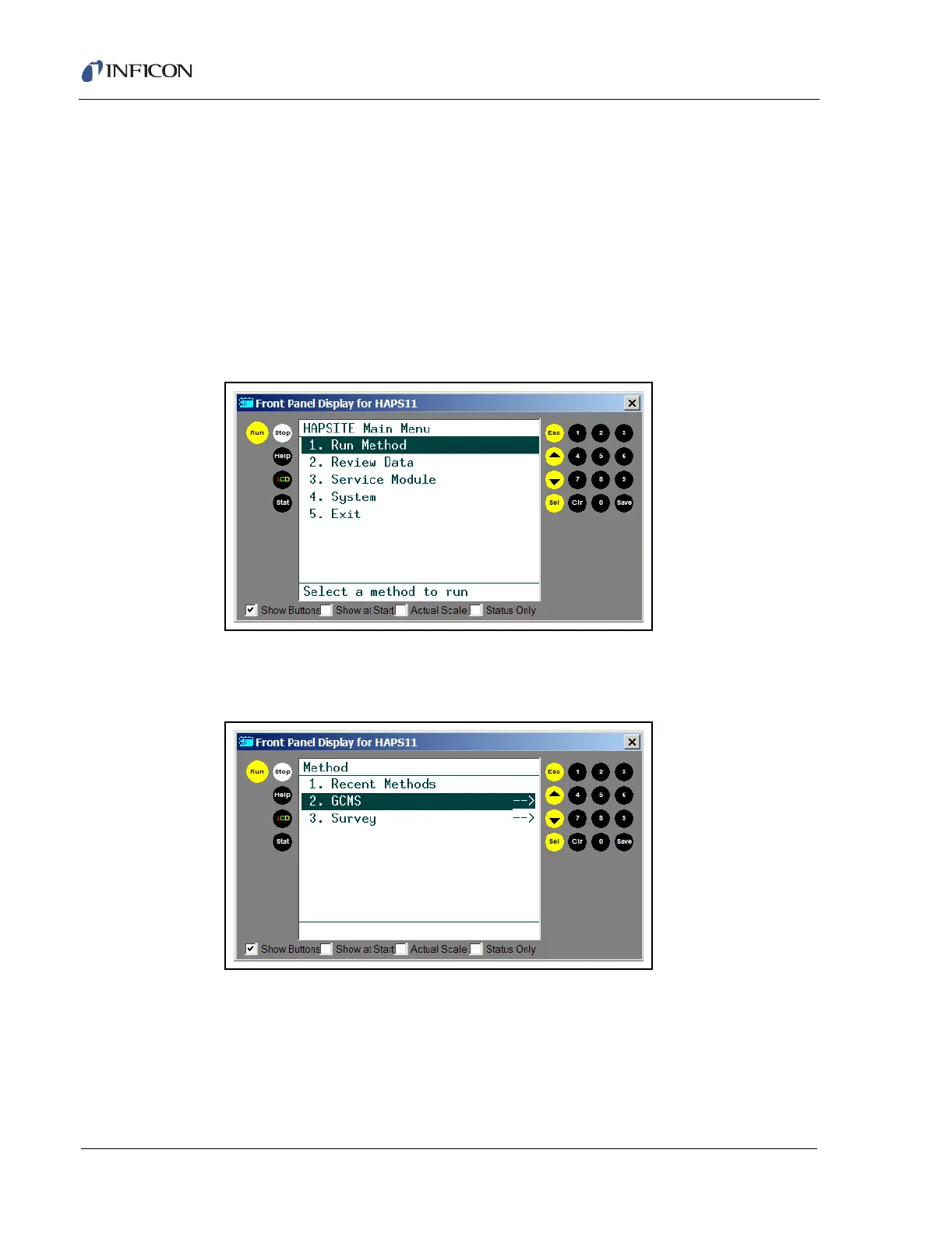

Figure 3-47 Run Method From Main Menu
2 Select GCMS from the Method menu on the front panel of the HAPSITE. See
Figure 3-48.
Figure 3-48 Selecting The GC/MS Folder
