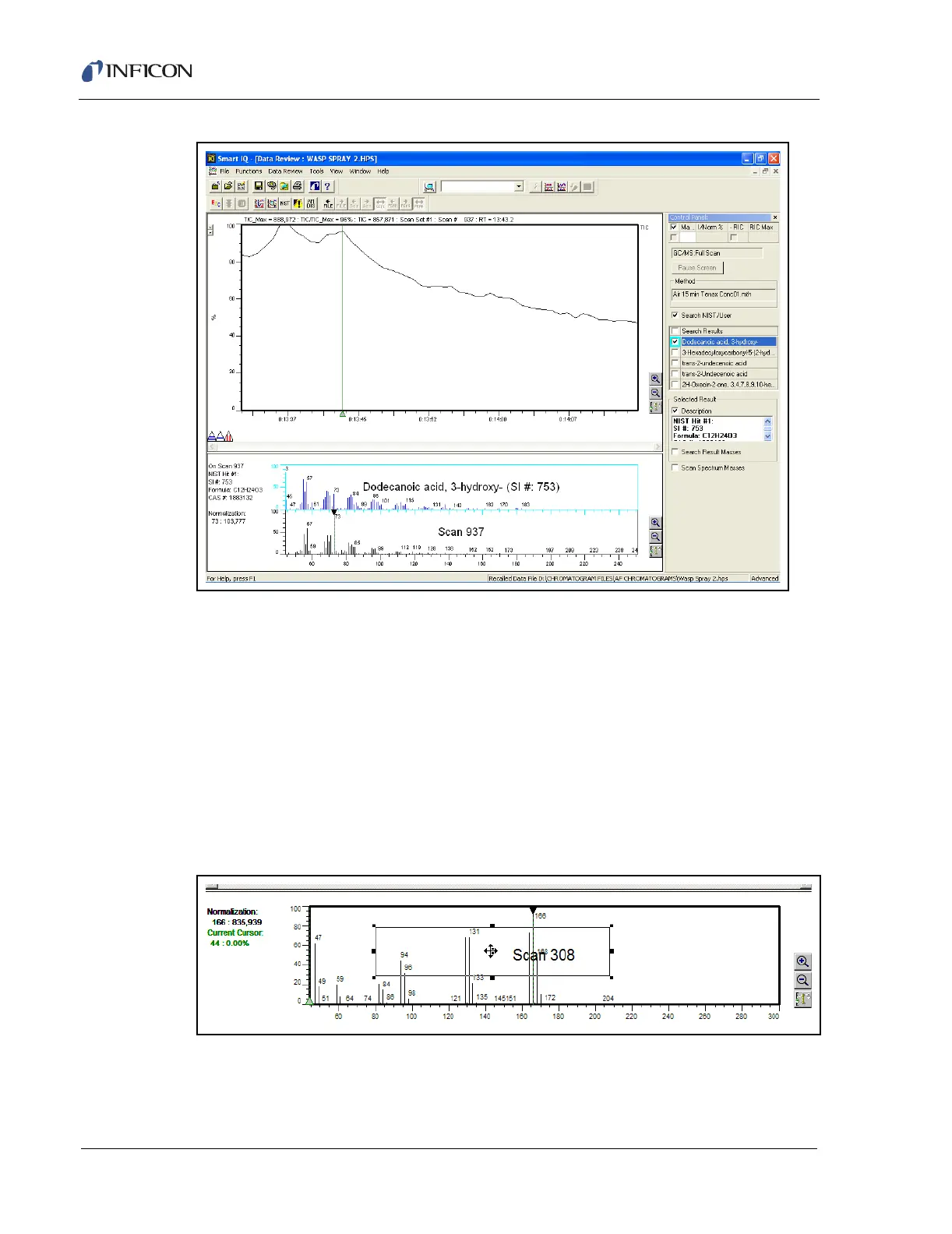

Figure 9-17 Zoomed Spectrum
3 To UNZOOM, either Click on the Magnifying Glass with the "-" inside or move
the cursor below the x-axis of the TIC window, then click the LMB.
9.6.2 Using The Zoom Spectrum Function
Zooming into a spectrum requires selection of the zoom buttons on the right side
of the spectrum window.
1 Click the zoom button, and a rectangle is displayed in the spectrum window.
2 Place the cursor in the middle of the rectangle until the cursor turns into a
four-headed arrow. See Figure 9-18.
Figure 9-18 Selecting Area to Zoom
3 Press and hold the LMB, then drag the box to the zoom location.
4 Adjust the box size to the desired zoom area.
