14 - 13
IPN 074-397-P1G
HAPSITE Smart Operating Manual
14.7.1 Attaching the HAPSITE to the Service Module using the
Smart IQ PC Software
Be sure to connect the HAPSITE to the PC using an ethernet cable before
continuing. Refer to section 2.3.6, Connect Laptop (if desired), on page 2-9, if a
connection is needed.
In the Smart IQ software, left-click on the desired HAPSITE sensor, then
double-click the Service Module icon, shown in Figure 14-14.

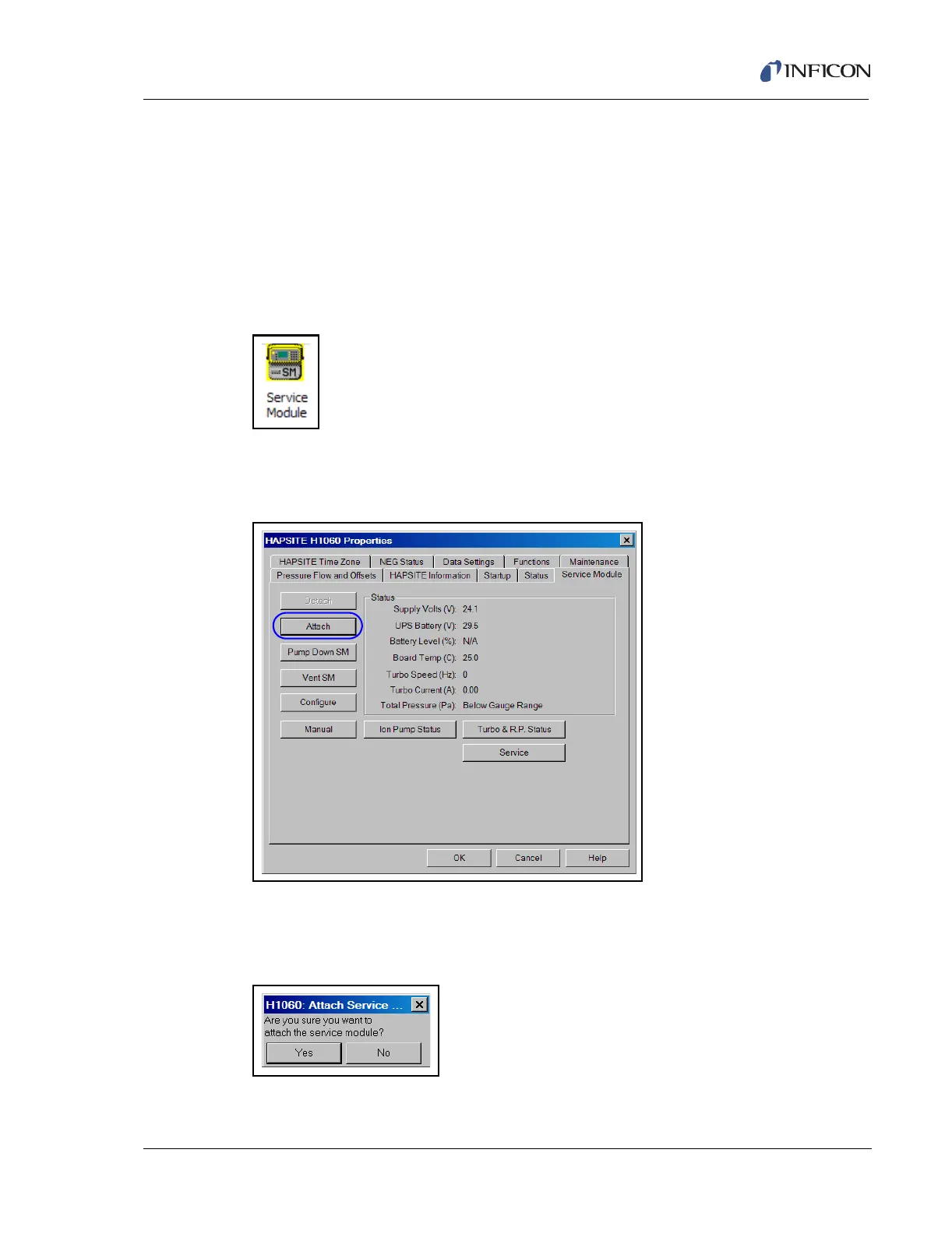

Figure 14-14 Service Module Icon in System Setup View, after Selecting HAPSITE Sensor
Double-clicking on the Service Module icon will open the Service Module tab in
the HAPSITE Properties window, as shown in Figure 14-15.
Figure 14-15 Service Module Tab Selected in HAPSITE Properties Window
In the Service Module tab shown above, select the Attach button.
A confirmation window will open. Click Yes. See Figure 14-16.
Figure 14-16 Attach Confirmation Request
To Next Page
