10 - 6
IPN 074-397-P1G
HAPSITE Smart Operating Manual

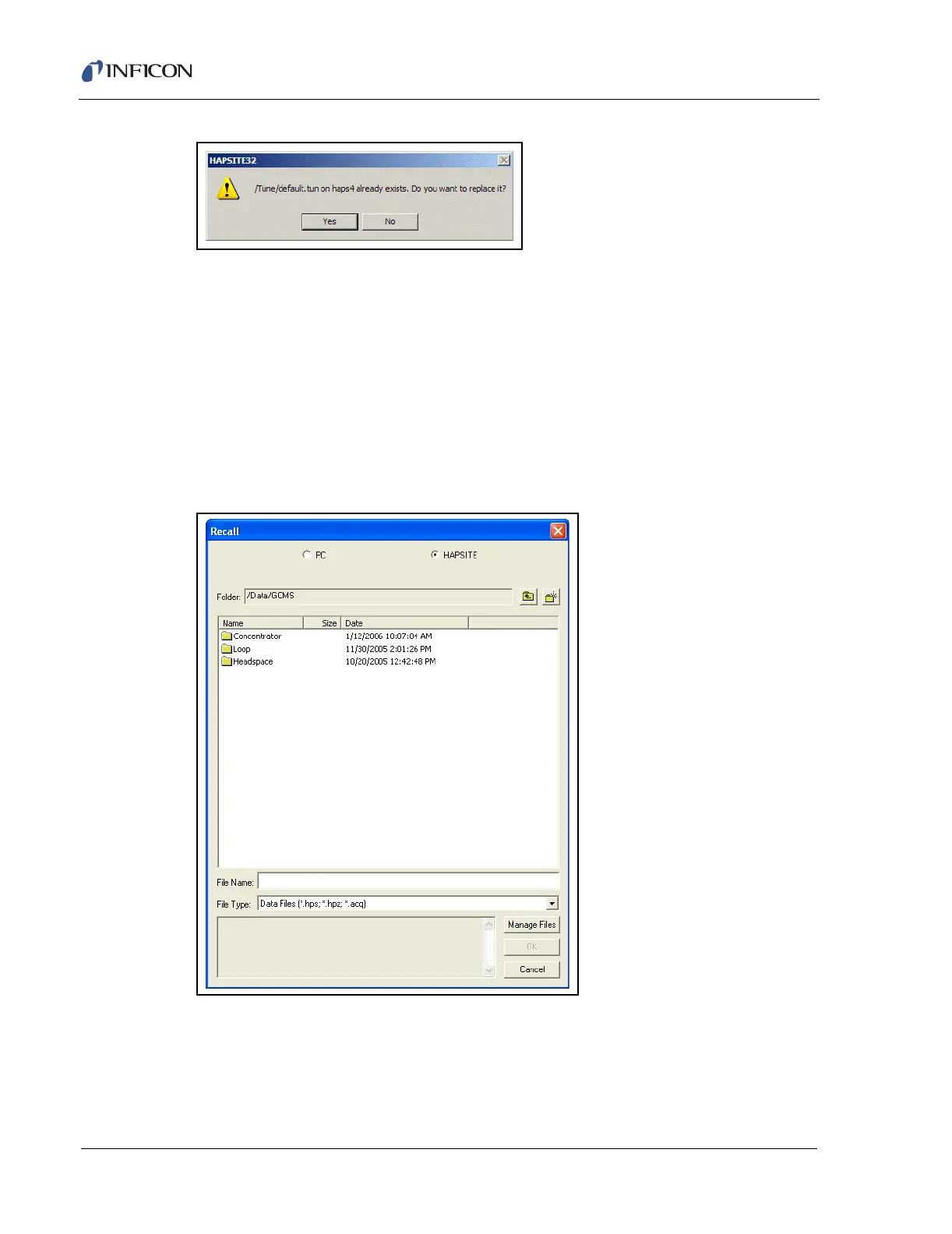

Figure 10-8 Overwrite Existing Tune File Confirm Window
To overwrite the file, select Yes, otherwise select No. If No is selected, the Save
Tune File window will appear.
10.1.5 Data Review
Data review is used to view and analyze data files. To open files, double click on
the Data Review icon in the System Setup window, or right click on a sensor and
select Data Review, or select a file from the Recent Files list in System Setup
view. The Data Review window is shown in Figure 10-9. Refer to Chapter 9, Data
Review for additional information on Data Review.
Figure 10-9 Data Review Recall Window
The window opens showing the data folder for the currently selected HAPSITE
Data Files, organized the same as method files. Data files are saved under
/Data/method_folder_name/ with which the data files were run. For
example, if the method called Default was used to run the analysis, the folder would
