4 - 17

IPN 074-397-P1G

HAPSITE Smart Operating Manual

4.10 Reviewing the Data Retrieved from the USB

Files that have been transferred to the laptop can be reviewed in the Smart IQ

software. Table 4-8 gives details on how to access the data files.

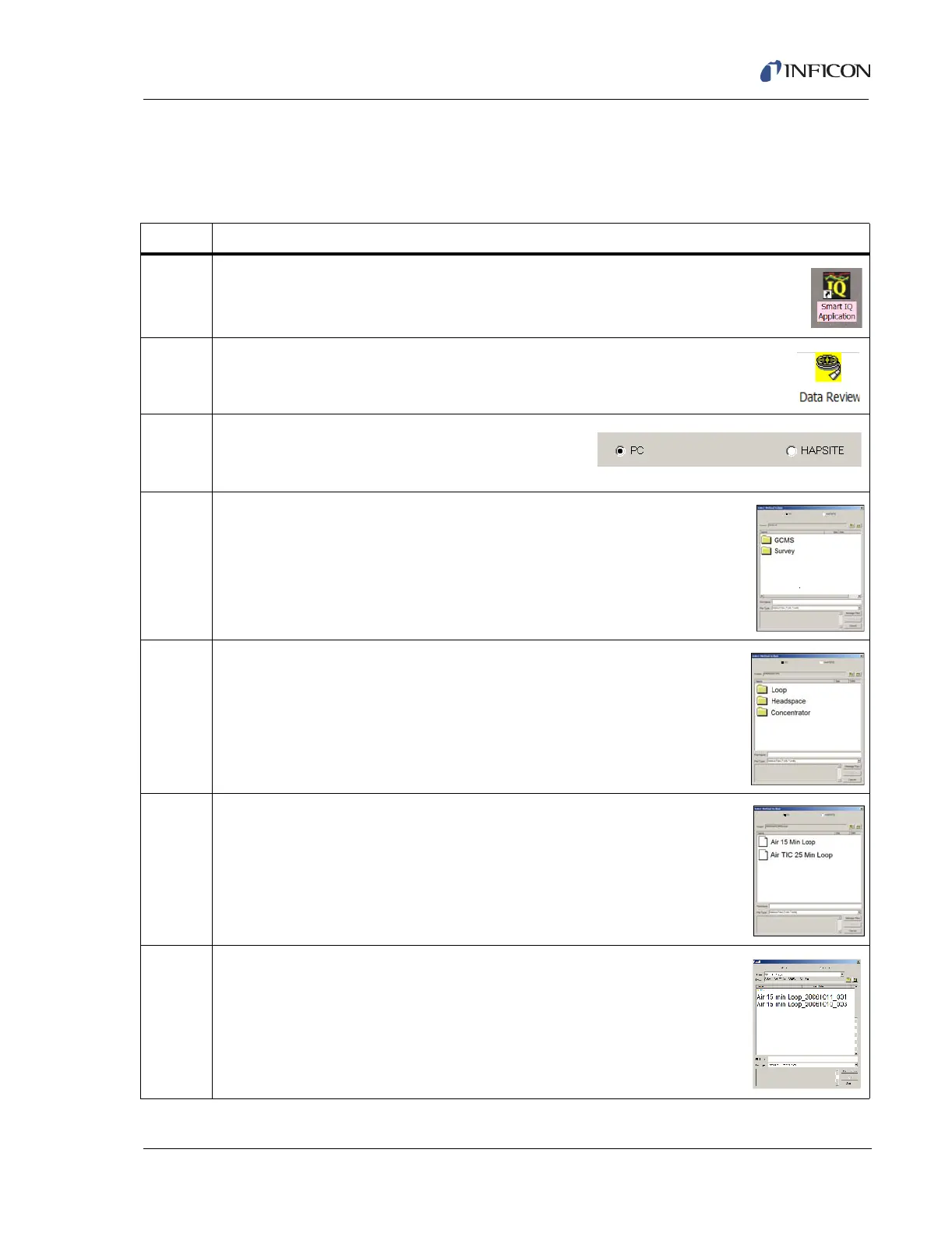

Table 4-8 Data Review from the Laptop

Step Description

1 Open Smart IQ software.

2 Double-click on the Data Review icon.

3 Designate PC in the top portion of the window.

NOTE: Any files transferred from the USB drive to

the laptop will reside on the PC.

4 Double click on the appropriate folder. (GCMS or Survey)

5 Double click on the appropriate configuration (Loop, Headspace,

Concentrator) folder.

6 Double click on the method name (Air 15 min Loop, Air TIC 25 min Loop)

folder.

7 Double click on the data file.
