12 - 6
IPN 074-397-P1G
HAPSITE Smart Operating Manual
12.2.6 Extracted Mass Peaks
Displays the mass peaks and relative percentages for the selected analyte. See
Figure 12-3.

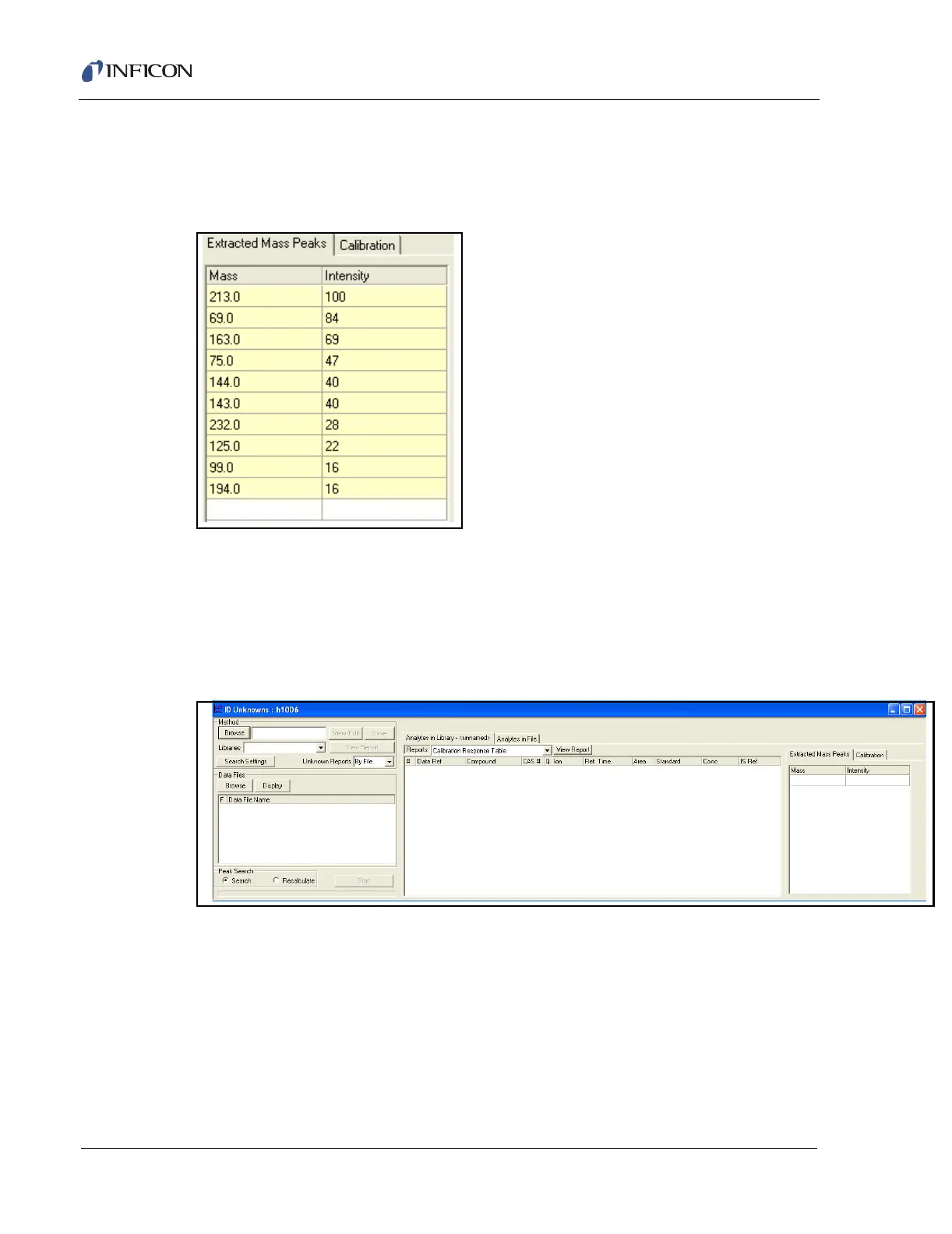

Figure 12-3 Extracted Mass Peaks
12.2.7 Calibration
Displays the calibration curve and curve statistics for the selected analyte.
12.3 Definition of Terms in the ID Unknowns Control Panel
Figure 12-4 ID Unknowns Control Panel
12.3.1 Method
Browse . . . . . . . . . . . . . . . . . . . . . . Brings up the Method selection window.
View/Edit . . . . . . . . . . . . . . . . . . . . . Opens the Method editor with the current
method.
Save. . . . . . . . . . . . . . . . . . . . . . . . . Save the current Method.
Libraries . . . . . . . . . . . . . . . . . . . . . Displays the currently saved libraries.
