Show Target . . . . . . . . . . . . . . . . . . Displays the target bar for the mass peak
center and peak width at 10% peak height.
Displays the target high and low percentage
bars for each mass peak.
Show Peak Bounds . . . . . . . . . . . . Displays the peak centroid and the target
peak width at 10% peak height.
Leave emission on at exit . . . . . . . Leaves the filament and Electron multiplier
on when exiting tune. This should not be
used except for special service procedures.
Turn Cal. Gas on at Tune start. . . . Turns ON the Calibration gas when the tune
program is started. This is checked for
normal operation.
7.5.3 Tune Control Panel

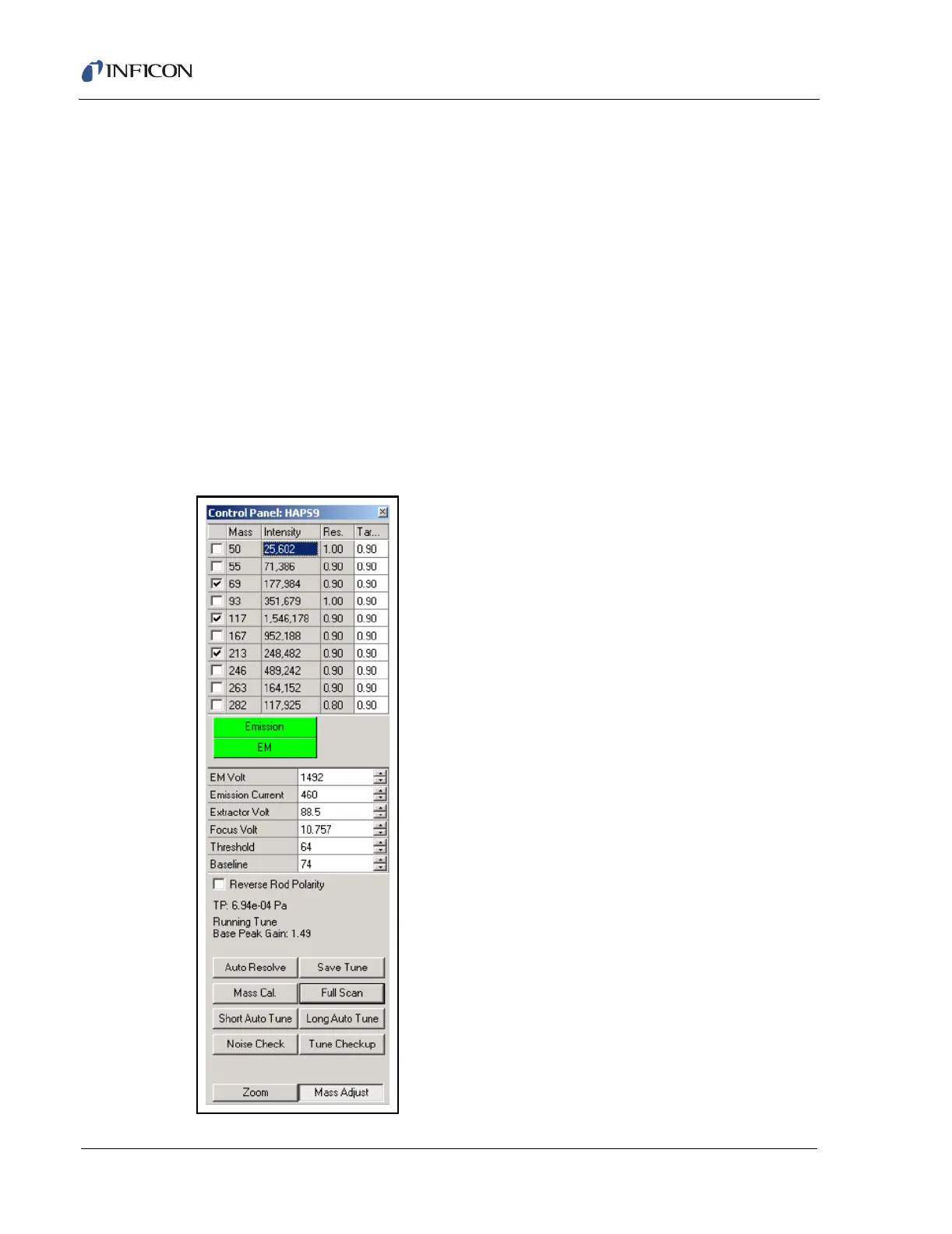

Figure 7-20 Tune Control Panel
