9 When pressure is released from the top fitting, the elbow should not move.
When gentle
upward pressure is applied to the top elbow, the elbow should not
slip on the concentration tube. If the elbow moves, the tube is not properly
seated, loosen the concentrator tube and repeat Step 4 on page 30 through
Step 8 on page 30.
10 Place the black Concentrator Cover over the concentrator tube and elbow
assembly. The cover should fit easily, excessive force is not required if the
concentrator tube is properly installed.
NOTE: The Concentrator Cover contains two metal contacts, inspect the contacts,
prior to assembly, to be sure the contacts are not bent or crimped.
11 Close the front panel.
2.9.4 Installing the Tenax or Carbopack Concentrator

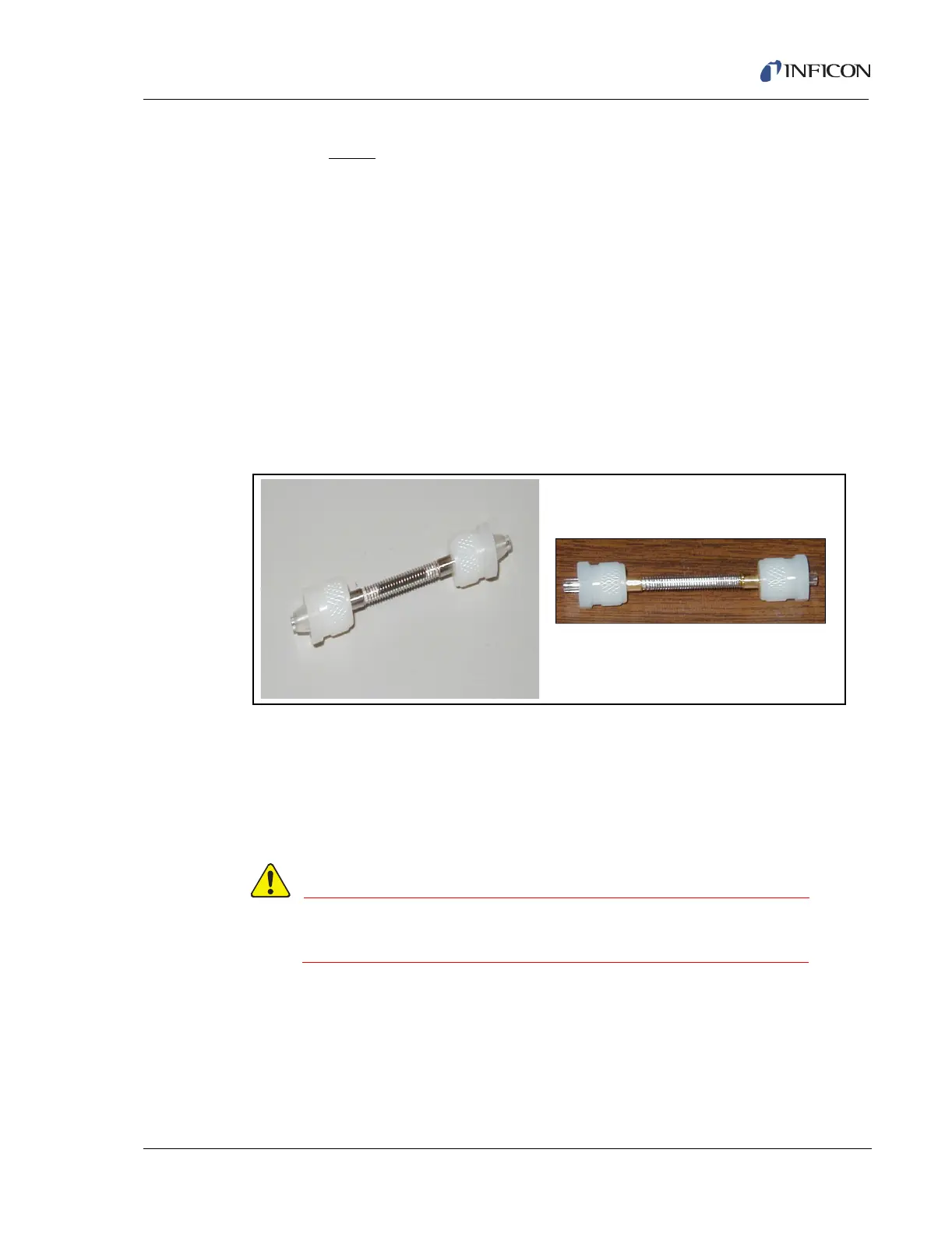

Figure 2-43 The Carbopack and Tenax Concentrator tubes
1 Refer to section 2.9.2, Removing the Sample Loop, on page 2-29 to remove
the sample loop or to section 2.9.5, Removing the Concentrator Tube, on page
2-36 to remove the currently installed concentrator tube.
NOTE: The Tenax and Carbopack concentrator tubes do not have a specific
orientation.
WARNING
The elbow fittings and nuts may be hot. If necessary, let
the elbow fittings and nuts cool down before continuing.
