14 - 18
IPN 074-397-P1G
HAPSITE Smart Operating Manual

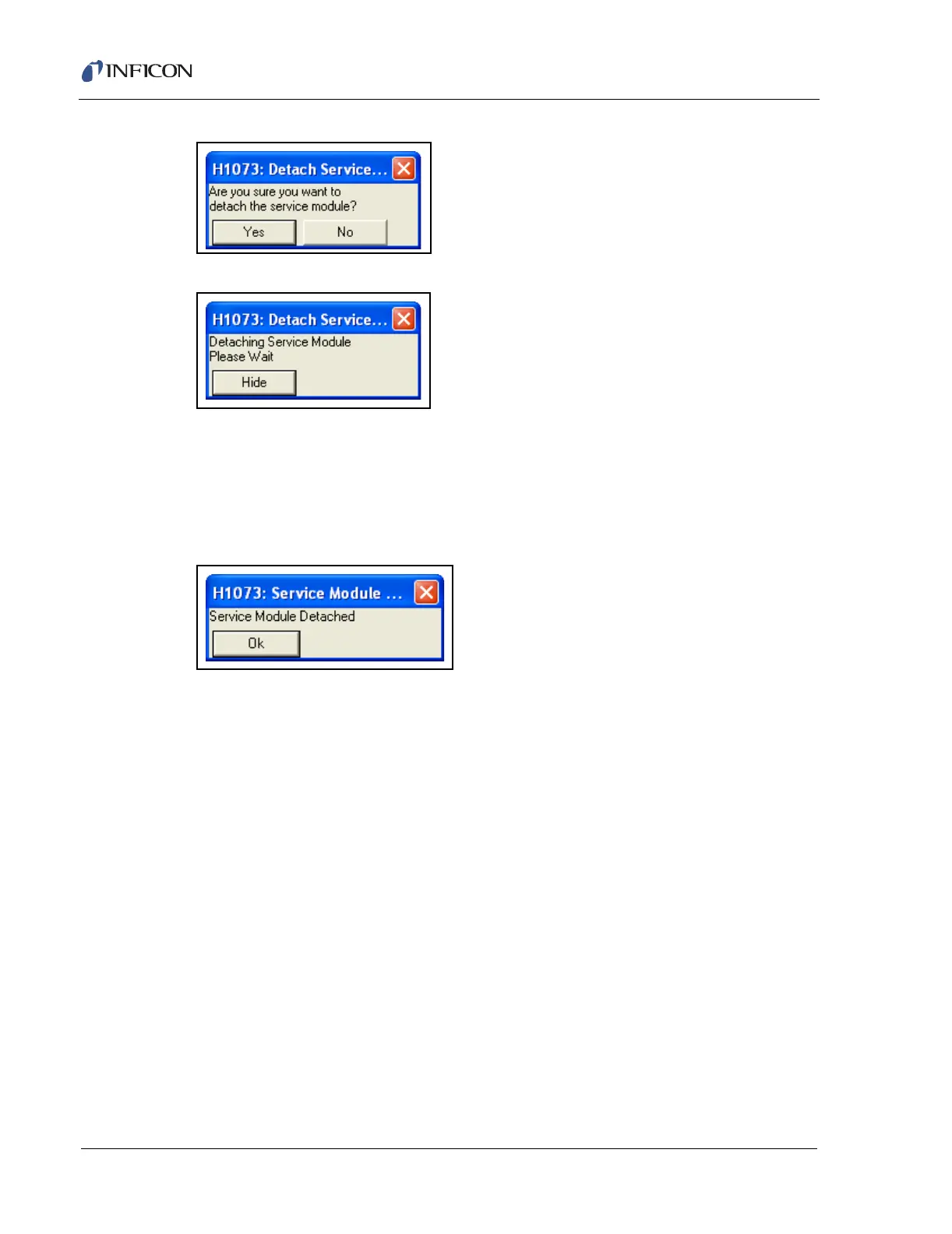

Figure 14-26 Detach HAPSITE Confirm Window
Figure 14-27 Detach In Process
The HAPSITE Vacuum Interconnect valve will close shortly after selecting Detach.
NOTE: The detach procedure typically takes about 3 to 5 minutes to complete.
NOTE: After pressing the Detach button and selecting Yes on the confirm
window, the HAPSITE Properties window can be closed.
Figure 14-28 Detach Successful
NOTE: To place the Service Module in storage see section 14.10, Storing the
Service Module, on page 14-22.
14.8.2 Using the Front Panel Display to Detach
On the HAPSITE Front Panel main menu, select 3. Service Module, as shown in
Figure 14-29.
HINT: If not already at the main menu, repeatedly press the ESC key until
HAPSITE Main Menu is displayed at the top of the screen.
