HAPSITE Smart Operating Manual
14.5 Smart IQ Software for the Service Module
The Smart IQ for the Service Module can be accessed in three ways from the
System Setup View:
 Double-click on the Service Module icon. See Figure 14-4.

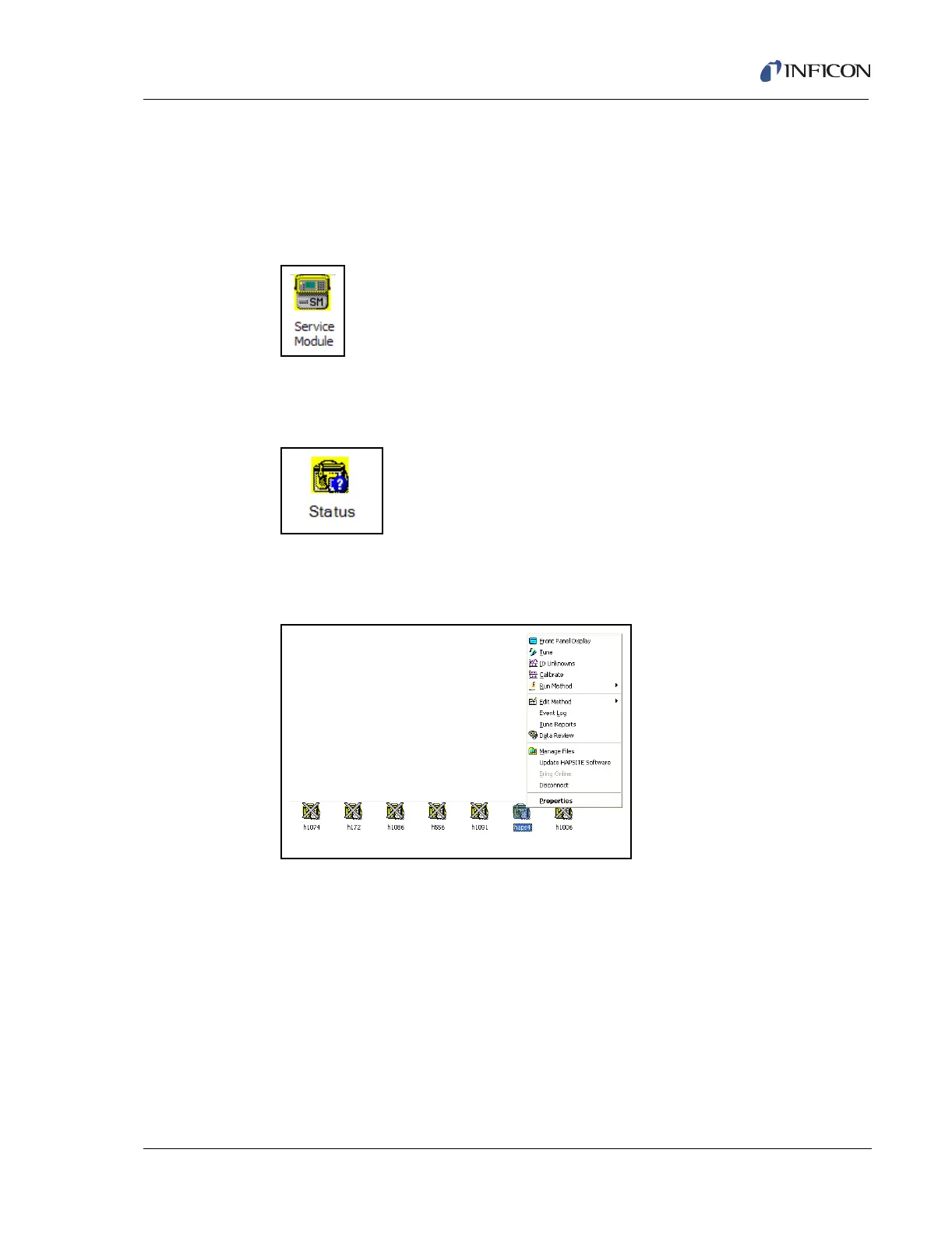

Figure 14-4 Service Module Icon
 Double-click on the Status icon. Click on the Service Module Tab. See Figure
14-5.
Figure 14-5 Status Icon
 Click on the Sensor icon with the right mouse button. Click on Properties with
the left mouse button. Click on the Service Module Tab. See Figure 14-6.
Figure 14-6 Accessing Service Module in Smart IQ from the HAPSITE Sensor Icon
