15 - 55
IPN 074-397-P1G
HAPSITE Smart Operating Manual
15.11.1 Opening the Service Module
1 If the Service Module has the SM Vacuum Seal in place and under vacuum,
vent the SM using the proper venting procedure. Refer to section 2.7.1, Setting
Up the Service Module, on page 2-18 and Chapter 14, Service Module.
WARNING - Risk Of Electric Shock
Disconnect the power cord and remove the battery from
the Service Module before proceeding!
2 With the HAPSITE disconnected, turn off the Service Module and unplug the
power supply.
3 Place the soft yellow plastic cover over the Vacuum Interconnect Valve to
protect the VI valve.
4 Turn the instrument over. Do not rest on the plastic latches.
5 In the middle of each of the four rubber feet are Phillips-head screws. Unscrew
and remove all four. The screws will stay with the rubber feet.
6 Lift the plastic housing slightly and pivot around the front edge. See Figure
15-59. The cable connecting to the lighted panel and battery door is the pivot.
The pivot does not need to be disconnected.

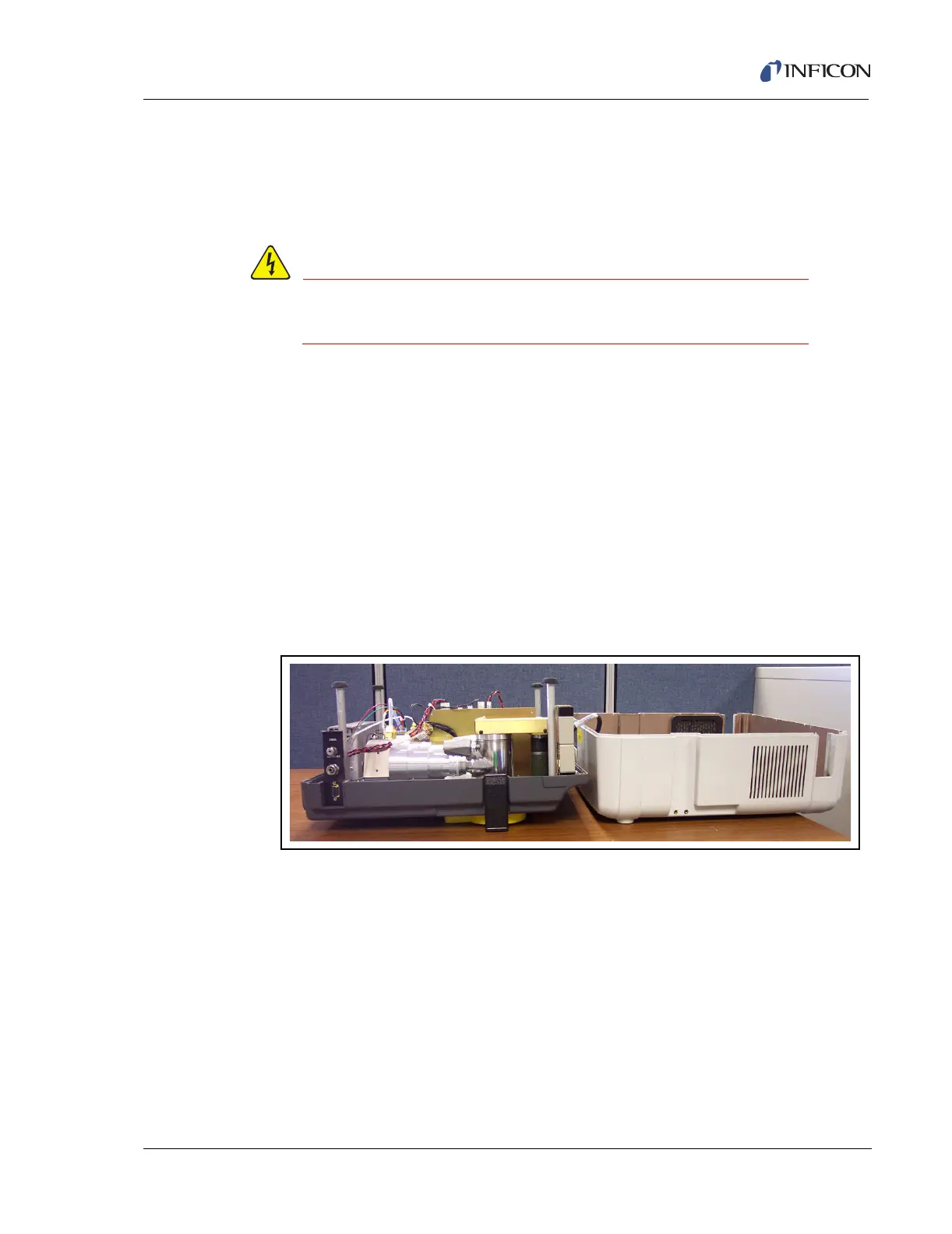

Figure 15-59 Opening the HAPSITE Service Module
