3.2.6 STAT
The STAT button on the HAPSITE keypad will display other information about the
system. Figure 3-22 will appear when the STAT button is pressed.

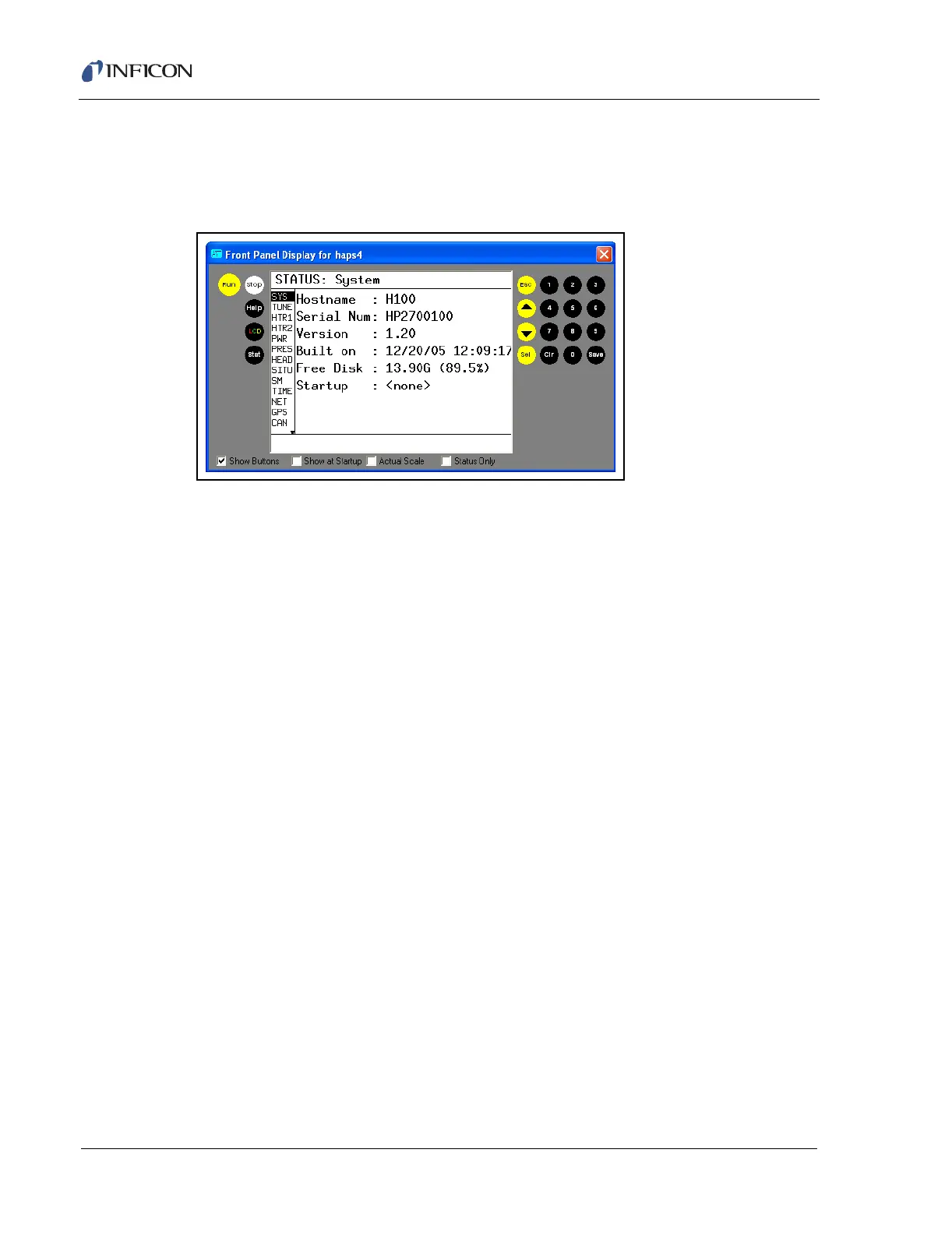

Figure 3-22 STATUS Screen with SYS (System) Selected
On the left side of the display, the status of 14 items may be monitored by pressing
the Up and Down arrow button then pressing SEL. The current selection will be
highlighted in black (SYS is selected in Figure 3-22. Alternately, the number keypad
can be used.
SYS . . . . . . . . . . . . . . . . . . . . . . . . . System; Host name; Serial Number; Version
Number; Date and Time Built; Free Disk
Space; Startup Method Information.
TUNE . . . . . . . . . . . . . . . . . . . . . . . . Tune File Name; Time Instrument Tuned;
Date Instrument Tuned; Press SEL for Tune
Report.
HTR1 . . . . . . . . . . . . . . . . . . . . . . . . Heaters Page 1; Current Column,
Membrane, Valve Oven, Sample Probe, and
NEG Heater Temperatures; Their Setpoint
Temperatures; State of Heaters-On, Off, or
In-Control.
HTR2 . . . . . . . . . . . . . . . . . . . . . . . . Heaters Page 2; Current temperatures of
Gas Chromatograph Heater, Elbow, GC Xfer
(Transfer Lines) 1 and 2; Setpoint
Temperatures; State of Heaters-On, Off, or
In-Control.
PWR. . . . . . . . . . . . . . . . . . . . . . . . . Power; Battery Power Status; Battery
Installed; Battery Charge Level.
PRES . . . . . . . . . . . . . . . . . . . . . . . . Pressures; Carrier Gas, Internal Standard,
Column, Reservoir, Total MS, SituProbe and
Headspace Nitrogen Input Pressures.
