12.2 Definition of Terms in the Calibrate Window

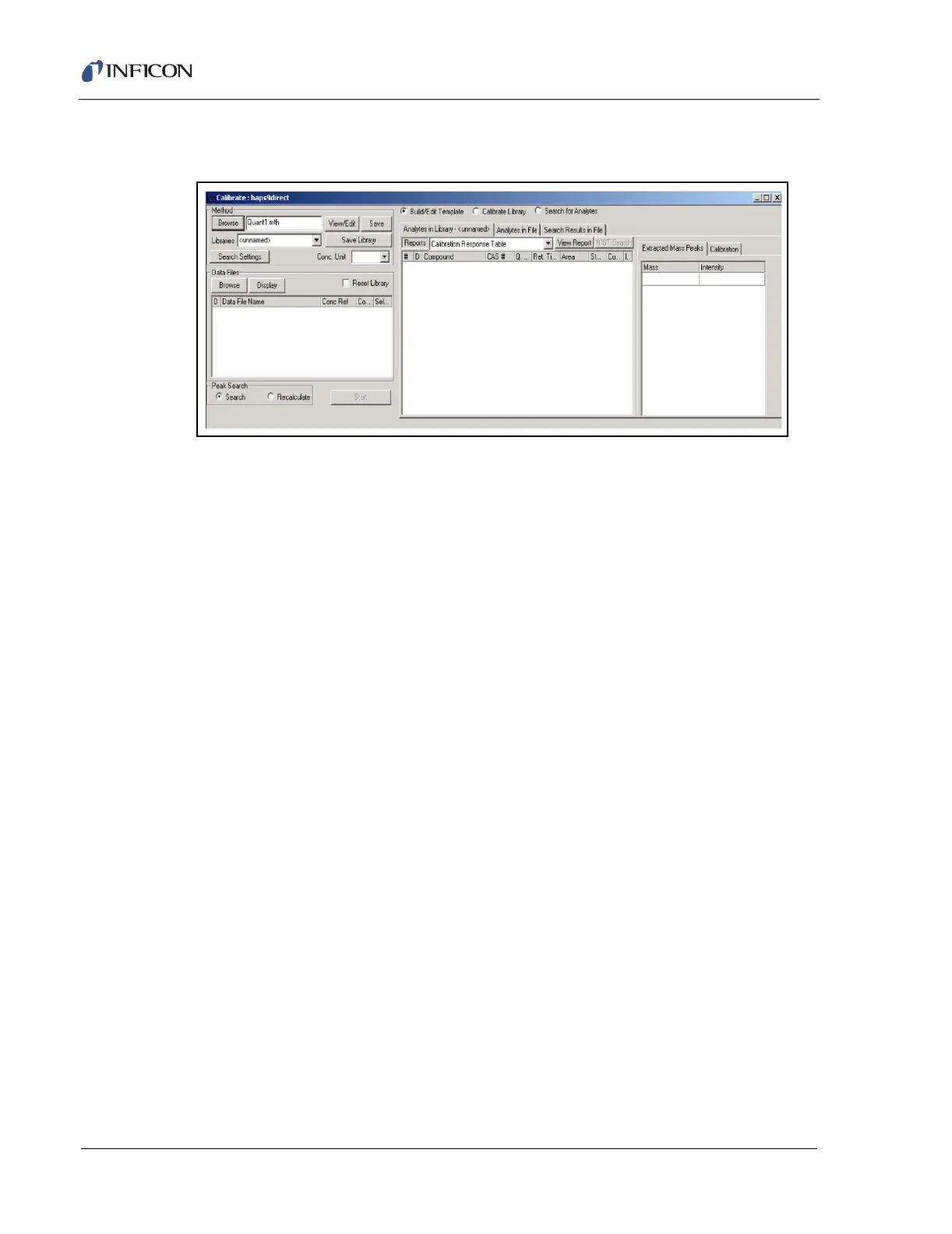

Figure 12-1 Calibrate Window
12.2.1 Method
Browse . . . . . . . . . . . . . . . . . . . . . . Brings up the Method Selection window.
View/Edit . . . . . . . . . . . . . . . . . . . . . Opens the Method Editor with the current
method.
Save. . . . . . . . . . . . . . . . . . . . . . . . . Saves the current Method.
Libraries . . . . . . . . . . . . . . . . . . . . . Displays the currently saved libraries.
Save Library . . . . . . . . . . . . . . . . . . Brings up the dialog box to save the library.
Search Settings . . . . . . . . . . . . . . . Displays the search parameter settings.
Conc. Unit . . . . . . . . . . . . . . . . . . . . Used to input or select the concentration
units.
12.2.2 Data Files
Browse . . . . . . . . . . . . . . . . . . . . . . Used to select the data files for building and
calibrating the library; when a data file is
selected the data is listed as follows:
D. . . . . . . . . . . . . . . . . . . . . . . . . Shows the data file reference number.
Data File Name . . . . . . . . . . . . . Displays the data file name and path.
Conc Ref . . . . . . . . . . . . . . . . . . Basis for calculating the concentration.
Global (all analytes are at the same
concentration) or Analyte (analytes are in file
at specific concentrations).
