Inficon HAPSITE Smart - Storing the Hot Swap Cable; Use as an Additional Battery Source

2 - 49
IPN 074-397-P1G
HAPSITE Smart Operating Manual
2.13.2 Storing The Hot Swap Cable
The Hot Swap Cable and battery have exposed electrical connections. Protect the
connections from exposure to moisture or contaminated environments by wrapping
the battery and cable connection in a protective plastic bag when not in use. See
Figure 2-62.

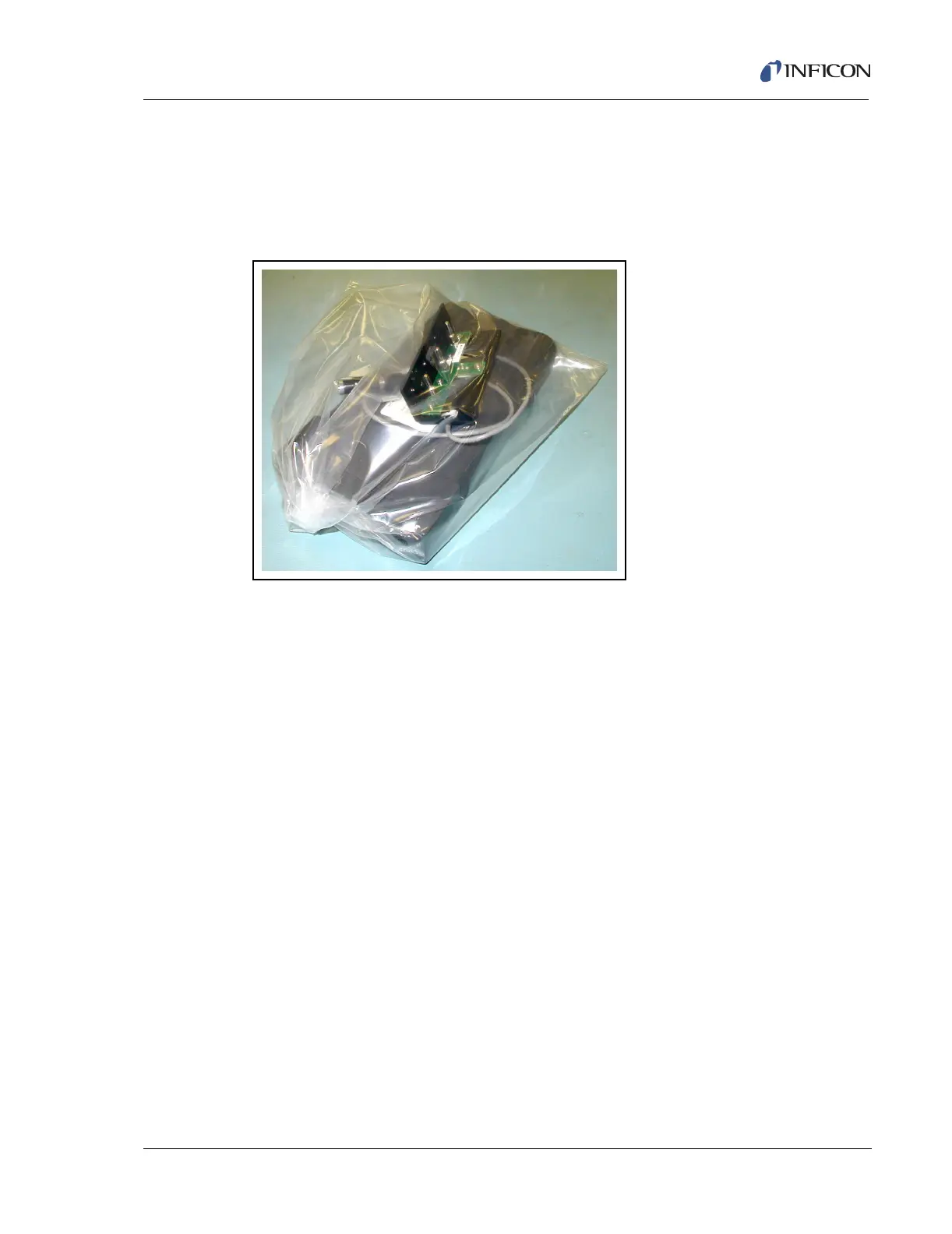

Figure 2-62 Storing
2.13.3 Use As An Additional Battery Source
When using the Hot Swap Cable and battery to provide an additional battery
source, attach the battery to the HAPSITE via the Hot Swap Cable when the front
panel shows the level of charge on the internal battery is
20%.
