5 - 18
IPN 074-397-P1G
HAPSITE Smart Operating Manual
5.4 GC/MS Mode with Tri-Bed Concentrator
This method is used for analyzing samples with concentration levels in the low part
per billion to high part per trillion range. This method is used when the loop method
fails to detect a chemical. Refer to Chapter 6, Methods for additional information on
GC/MS methods.
NOTE: The Tri-Bed concentrator must be installed before making a GC/MS run in
the Concentrator mode. Refer to Section 2.9.3, Installing the Tri-Bed
Concentrator, on page 2-29 for instructions. Once installed, the Tri-Bed
concentrator must be cleaned before sampling begins.
NOTE: The discontinued Carbopack Concentrator tube uses the same methods
outlined below. To install the Carbopack Concentrator tube refer to Section
2.9.4, Installing the Tenax or Carbopack Concentrator, on page 2-31.
1 Open Smart IQ Software by double clicking on the Smart IQ Icon. See Figure
5-8.

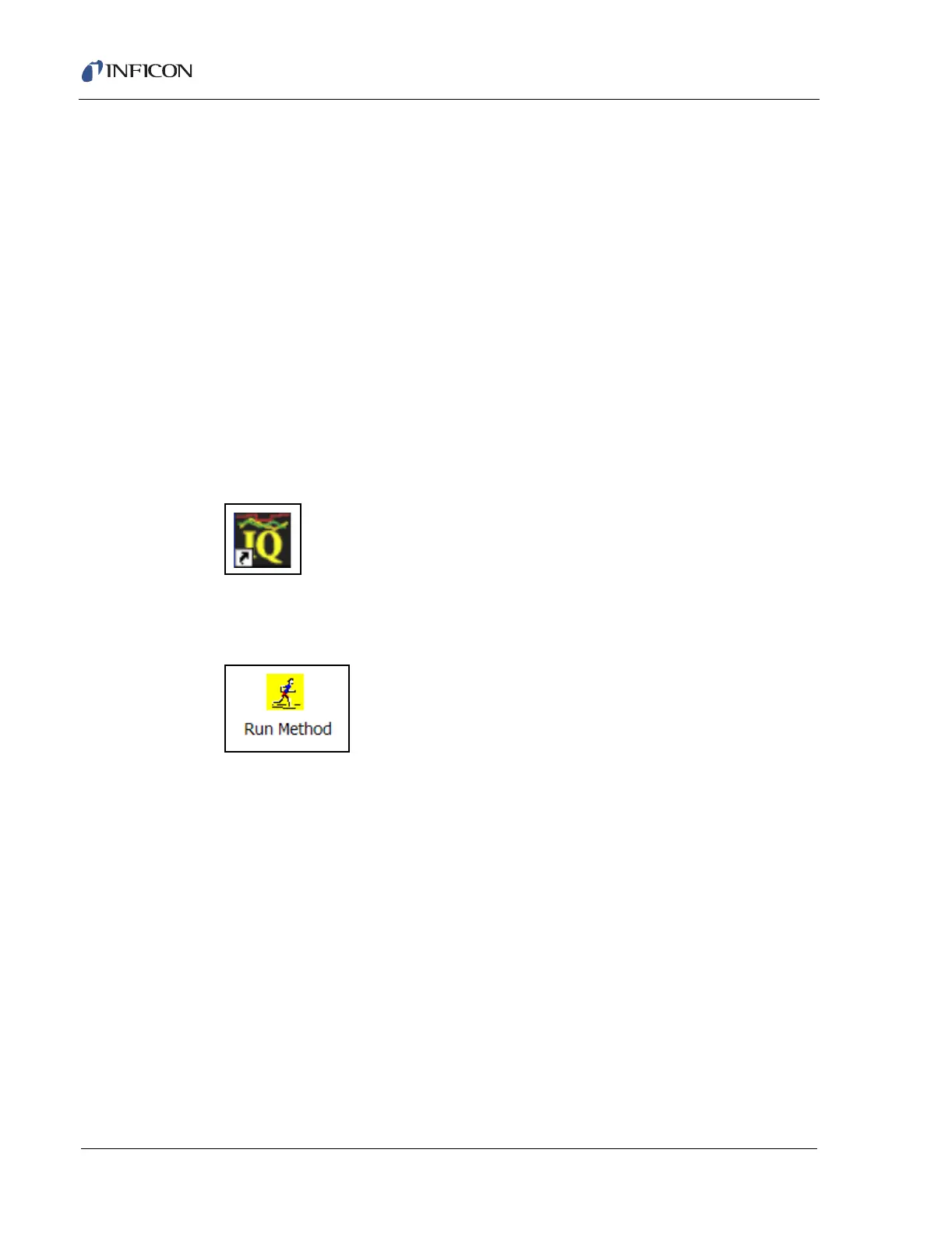

Figure 5-25 Smart IQ Software Icon
2 From the Setup Page on the laptop select the Run Method icon by double
clicking on the icon. See Figure 5-26.
Figure 5-26 Run Method Icon
3 Double-click the GCMS folder. See Figure 5-27.
To Next Page
