2 - 5
IPN 074-397-P1G
HAPSITE Smart Operating Manual
2.3.1 Attaching the Probe
To attach the probe line, plug the LEMO® connector into the port on the top of the
HAPSITE as illustrated in Figure 2-7.

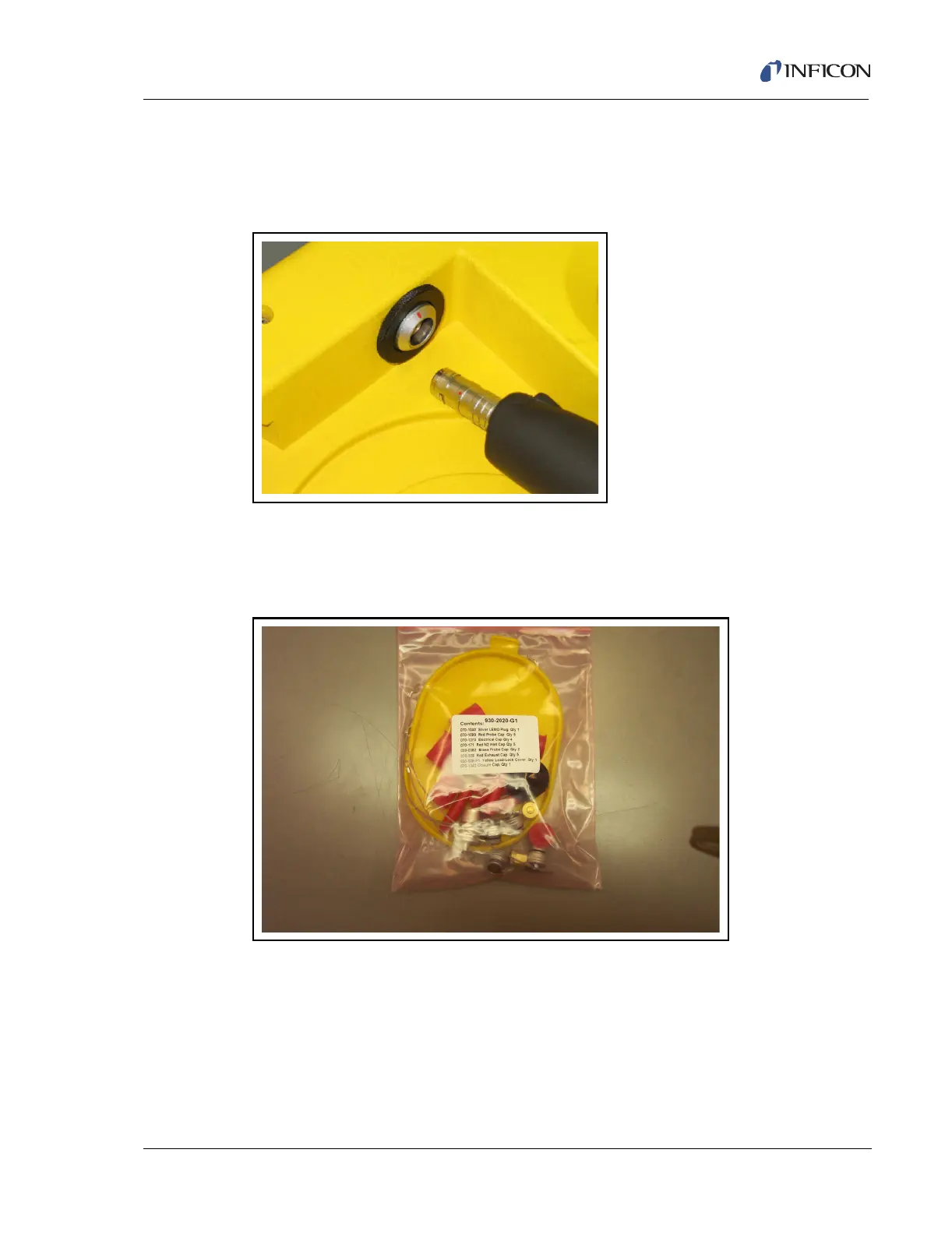

Figure 2-7 Attaching the LEMO Connector on the Probe Line to the HAPSITE
HINT: Save all of the caps to cover ports in the event the instrument needs to be
washed or decontaminated. Spare caps are provided in the Ship Kit. See
Figure 2-8.
Figure 2-8 Spare Cap Kit
