7 - 19
IPN 074-397-P1G
HAPSITE Smart Operating Manual
7.5.5 Full Scan Window
The Full scan window (see Figure 7-22) is used for display purposes to evaluate
the performance of the MS. All tune adjustments should be made using the Peak
Scan windows.

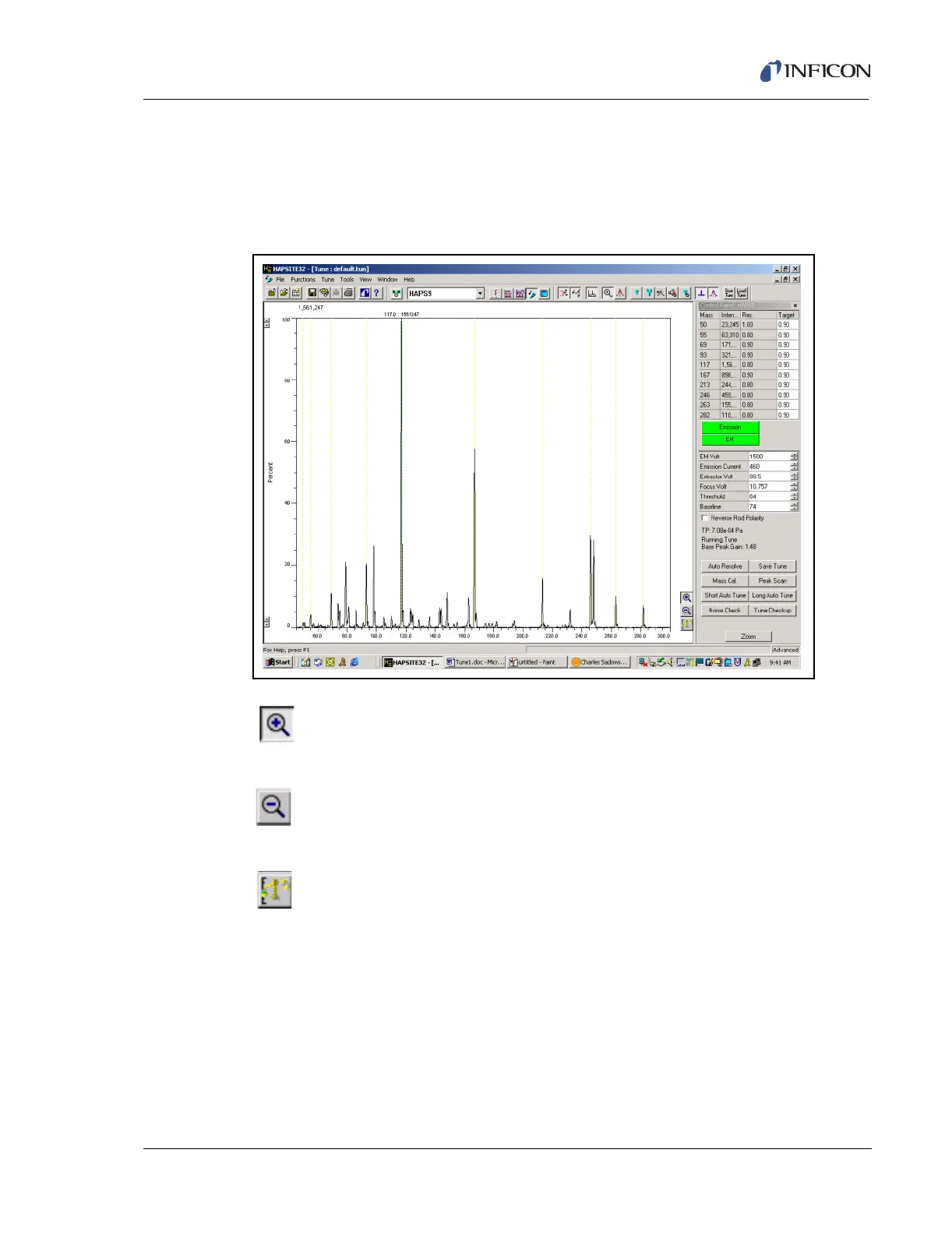

Figure 7-22 Full Scan Window and Controls
Zoom . . . . . . . . . . . . . . . . . . Enables the cursor to select a section of the
peak scan window and zoom to that section.
Zoom Out. . . . . . . . . . . . . . . Returns the window to the original X axis and
Y axis scale.
Zoom Out Y Axis. . . . . . . . . Returns the Y axis to the original scale.
Placing the mouse cursor on the x axis of the full scan window and pressing the
right mouse button will display the Set Scan Range Window, see Figure 7-23. This
allows a custom scan range to be entered and viewed.
