11 - 23

IPN 074-397-P1G

HAPSITE Smart Operating Manual

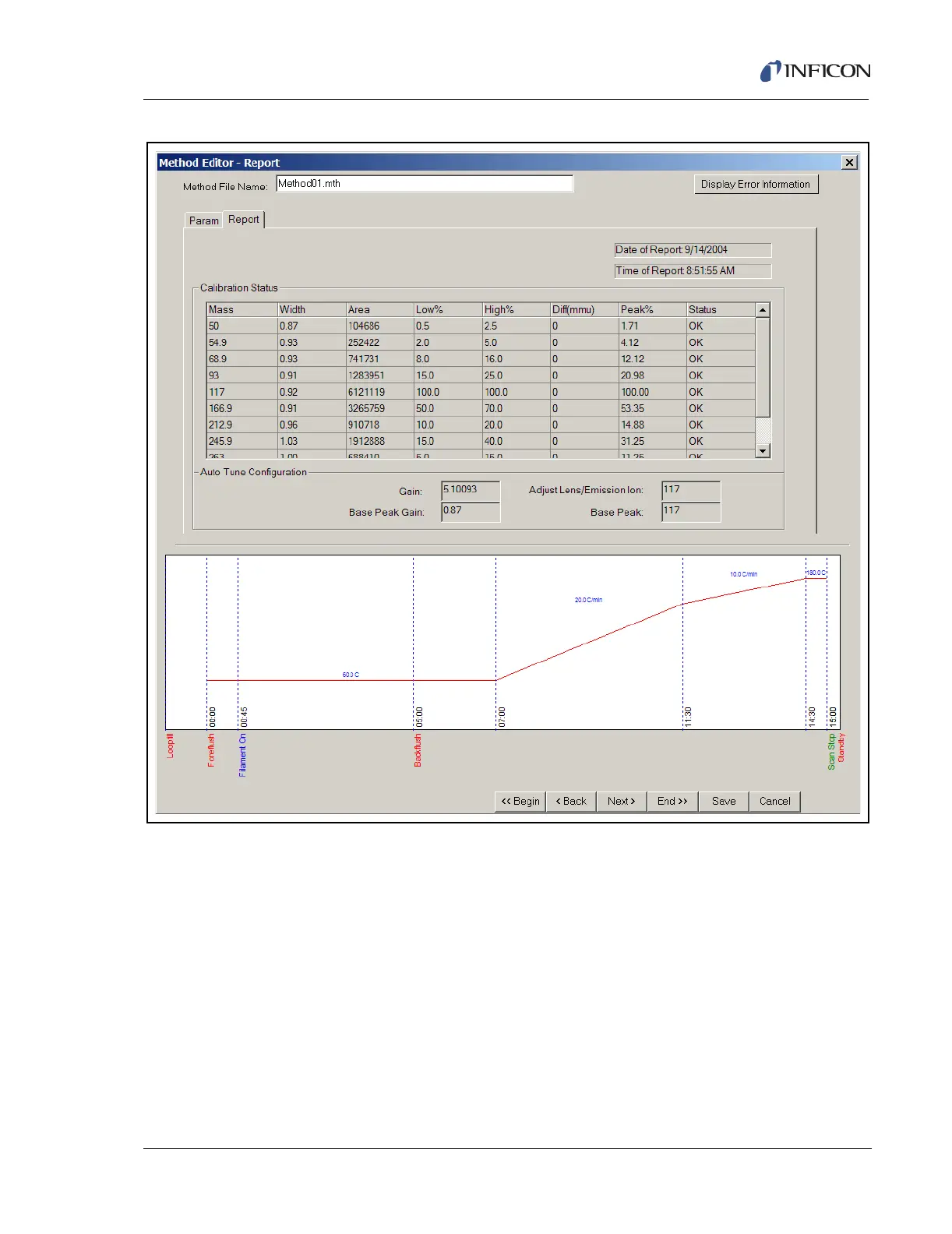

Figure 11-21 Method Editor Tune Report Page

11.6 Full Scan Page

The Full Scan page contains the mass range and other parameters of the Mass

Spectrometer operation (see Figure 11-22). The full parameter set can be assigned

a Scan Set Name for easy identification, if desired. The Filament Delay, from the

Inlet Page (see section 11.4.4, Scan Events, on page 11-18), is also shown on the

Full Scan page. Changing the Filament Delay on this page may require a review

of, and changes to, the Inlet Page.
