8 Snap on the black cover labeled Sample Loop. See Figure 2-41.

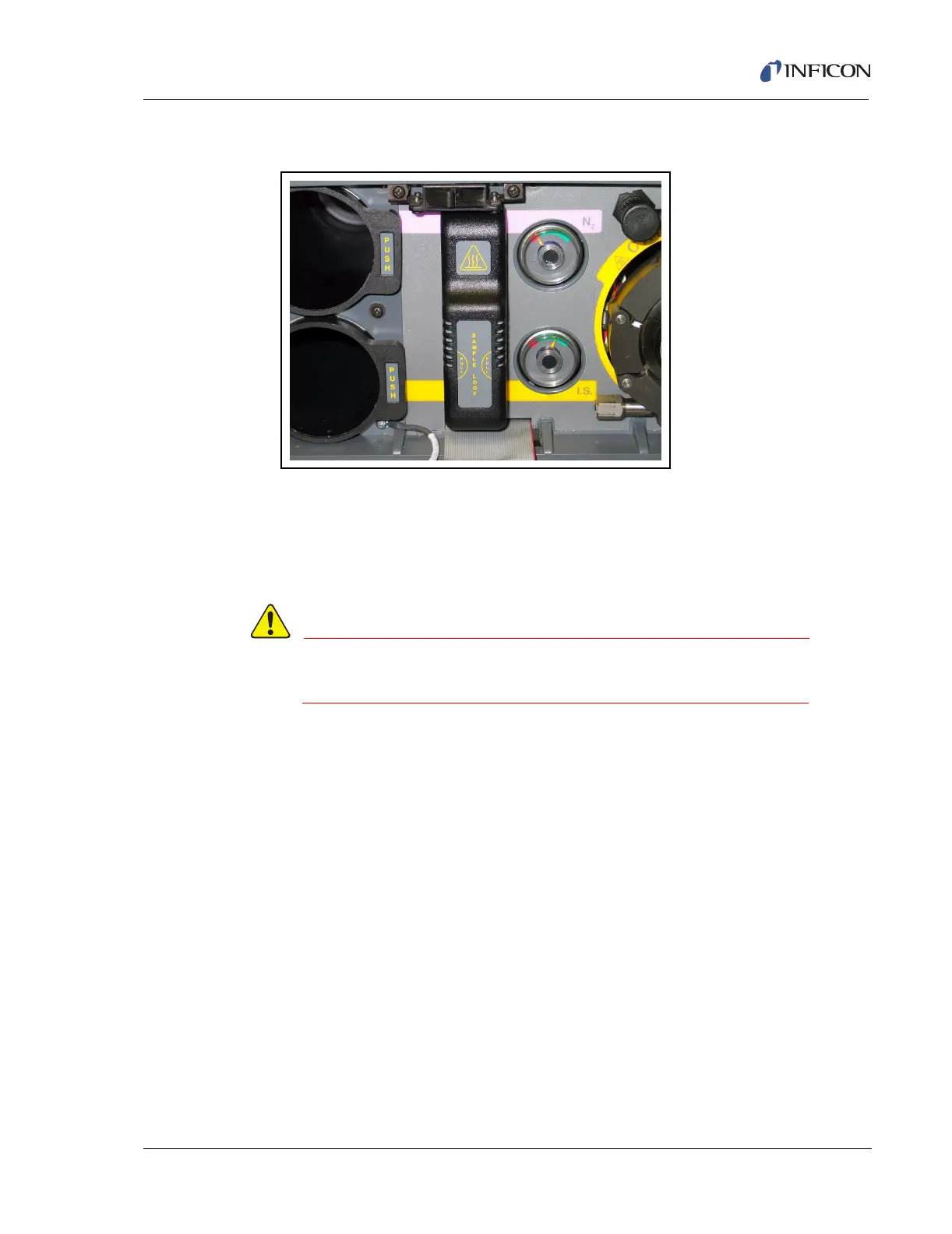

Figure 2-41 Sample Loop Cover Installed
2.9.2 Removing the Sample Loop
1 Open the front panel of the HAPSITE and remove the black cover labeled
Sample Loop.
WARNING
The elbow fittings and nuts may be hot. If necessary, let
the elbow fittings and nuts cool down before continuing.
2 Using the 7/16" open end wrench suppled by INFICON, loosen the nuts on the
top and bottom of the sample loop until it becomes free.
3 Remove the Sample Loop, being careful not to lose the ferrules on the top and
bottom. Store the Sample Loop in a safe place for future use.
2.9.3 Installing the Tri-Bed Concentrator
1 Refer to section 2.9.2, Removing the Sample Loop, on page 2-29 to remove
the sample loop or to section 2.9.5, Removing the Concentrator Tube, on page
2-36 to remove the currently installed concentrator tube.
2 Remove the Tri-Bed Concentrator tube from the storage vial. Orient the plastic
nuts and Teflon ferrules onto the glass concentrator tube by placing a nut on
each end of the tube with the threaded end facing away from the center of the
tube.
3 Place the wide end to the ferrule into the threaded end of each nut.
