Inficon HAPSITE Smart - Page 66

2 - 28
IPN 074-397-P1G
HAPSITE Smart Operating Manual

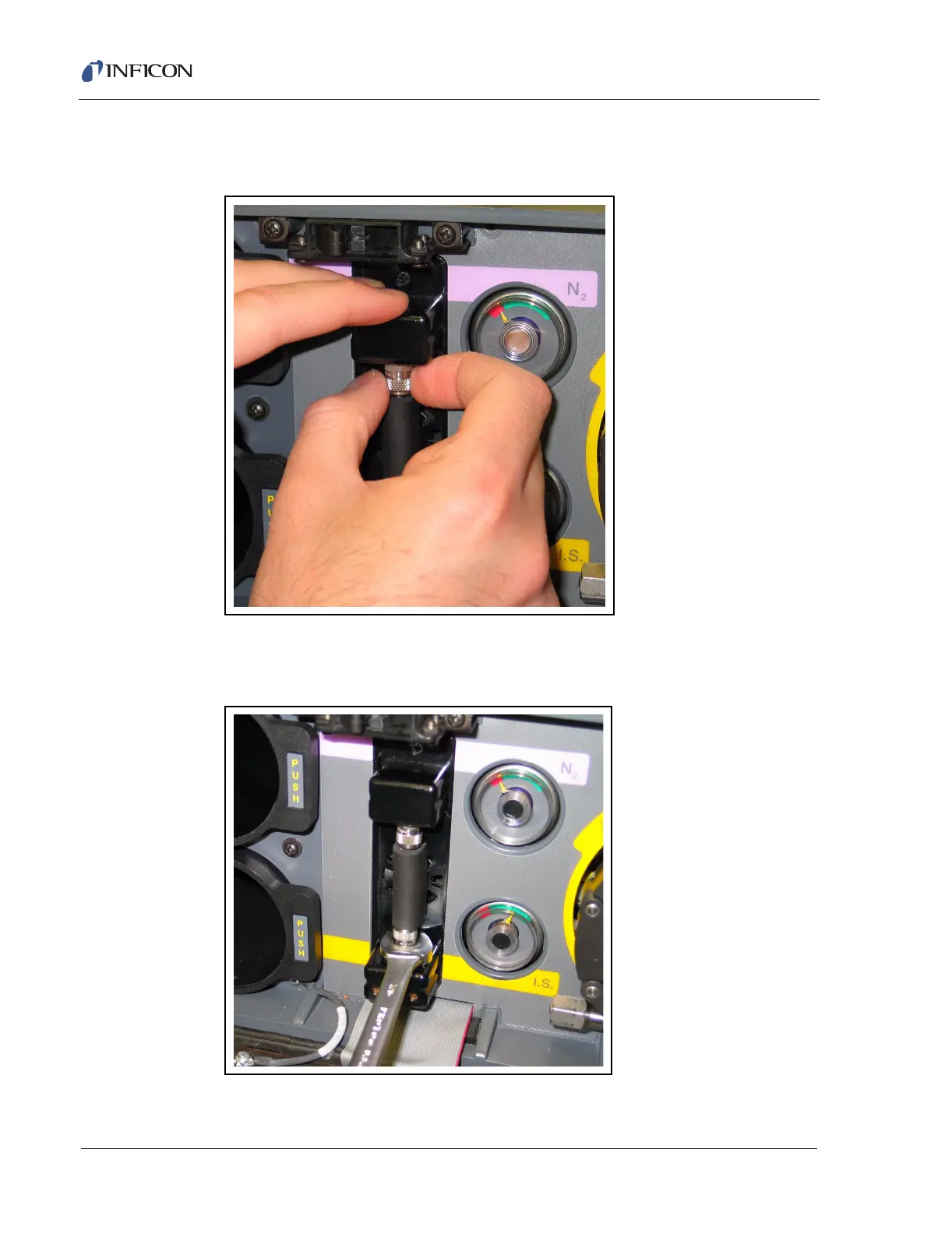

6 Continue pressing on the top elbow, and tighten the top nut finger tight. See
Figure 2-39.
Figure 2-39 Tightening the Top Nut
7 Using the 7/16" open end wrench supplied with the HAPSITE, tighten both the
top and bottom nut approximately a quarter turn. See Figure 2-40.
Figure 2-40 Wrench tighten
