7.2 Autotune
There are two versions of the Autotune program: Short and Long. The Short
Autotune program is the daily maintenance tune of the HAPSITE and is
pre-configured to run automatically at startup, after the system has been powered
OFF and ON and a method selected, or after an eight hour period of operation.
Short Autotune can also be invoked from the Manual tune function at anytime. The
Short Autotune will check if all parameters are within specification, record the dwell
statistics (Baseline/Threshold), create a Tune report and proceed to the Run
Method function. If corrections are required, the program will automatically make
the correction, measure the dwell statistics, create the report, and then proceed to
the Run Method function.
Figure 7-1 through Figure 7-4 show sample screens displayed during a Short
Autotune. The status screens will vary depending on the corrections or
adjustments required.

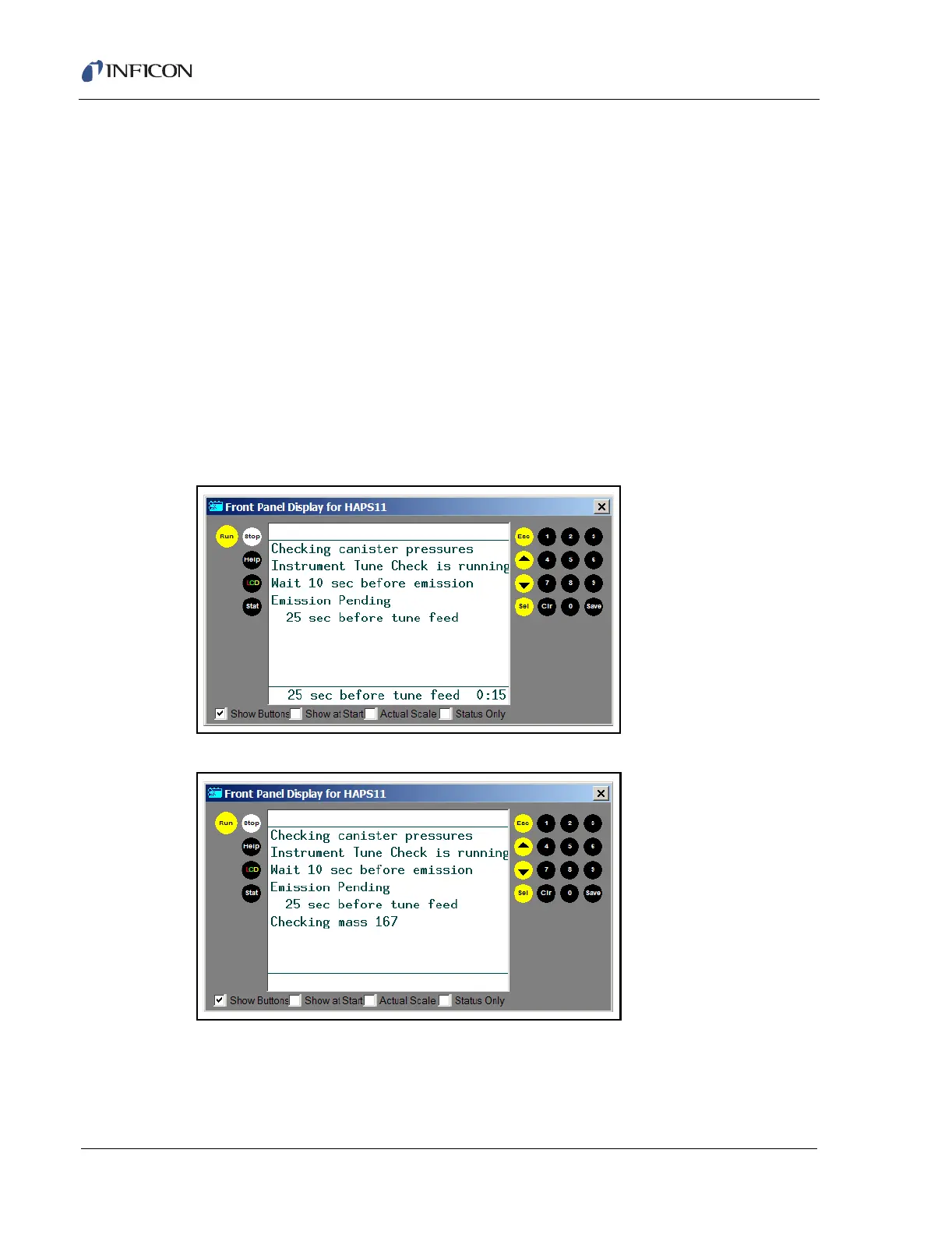

Figure 7-1 Autotune Status Screen from Front Panel as System Prepares For Autotune
Figure 7-2 Short Autotune Status Screen from Front Panel during Tune Check
