14 - 17
IPN 074-397-P1G
HAPSITE Smart Operating Manual
14.8 Detaching the HAPSITE
Detaching the HAPSITE allows the safe removal of the HAPSITE from the Service
Module. The Detach procedure ensures that the interconnect plug in the HAPSITE
is closed at the proper time, and the two pumps in the Service Module are properly
shut down.
The detach procedure can be carried out either using the Smart IQ software, or
using the HAPSITE front panel display.
14.8.1 Using the Smart IQ Software to Detach
Be sure to connect the HAPSITE to the laptop using an ethernet cable before
continuing. Refer to section 2.3.6, Connect Laptop (if desired), on page 2-9 if a
connection needs to be made.
In the Smart IQ software, left-click on the HAPSITE sensor to detach, then
double-click the Service Module icon, shown below in Figure 14-24.

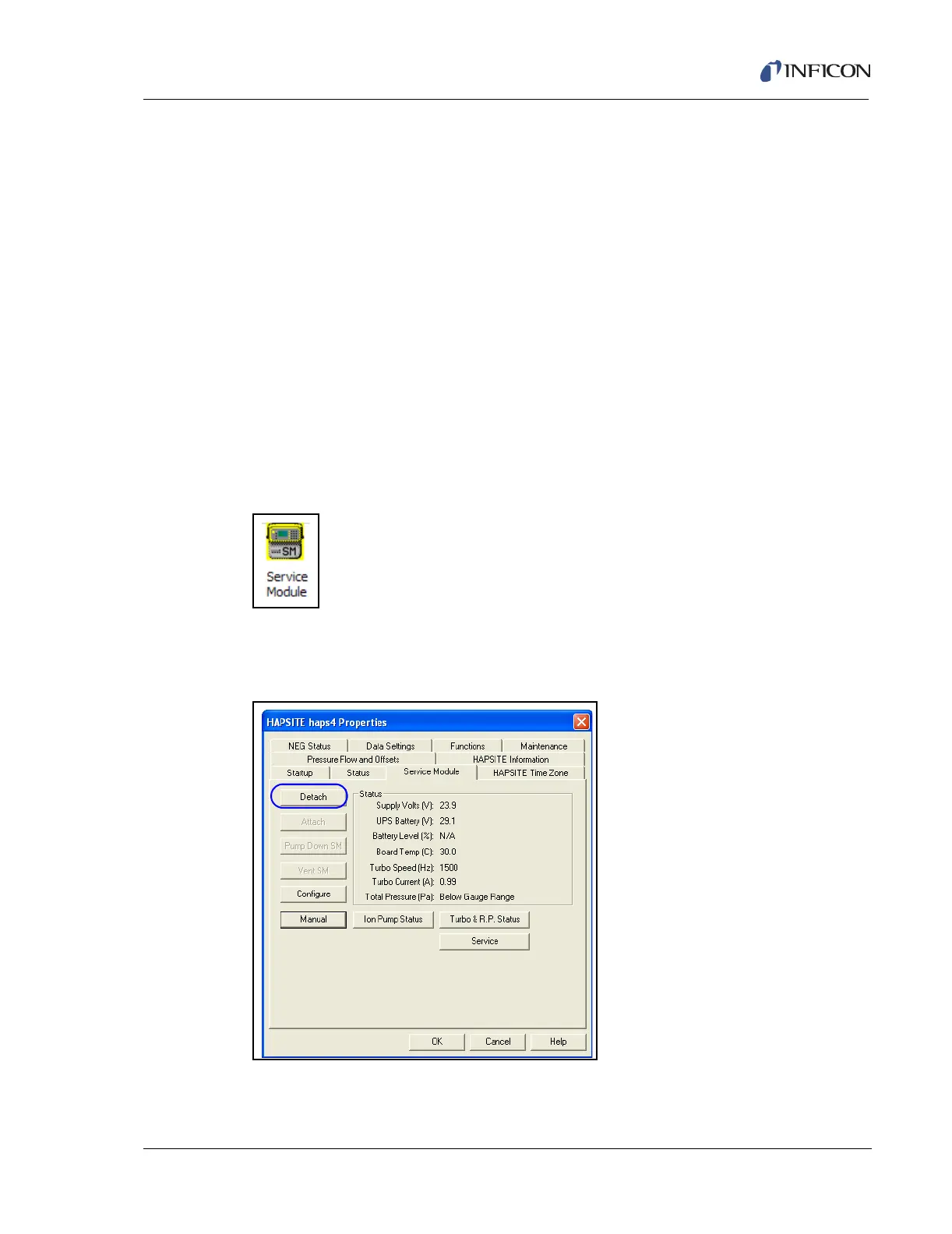

Figure 14-24 Service Module Icon
Double-clicking on the Service Module icon will open the Service Module tab in
the HAPSITE Properties window, as shown in Figure 14-25.
Figure 14-25 Service Module Tab Selected in HAPSITE Properties Window
In the Service Module tab shown above, select the Detach button. A message will
appear confirming to detach the HAPSITE, as shown in Figure 14-26. Select Yes.
