2.11.2 Battery Charger
The auxiliary Battery Charger (part number 930-470-G1) is a simple, integrated
unit which operates from AC power and charges one, two, or three HAPSITE
batteries in 15 hours or less.
CAUTION
The Battery Charger is not sealed against moisture,
debris, or contamination.

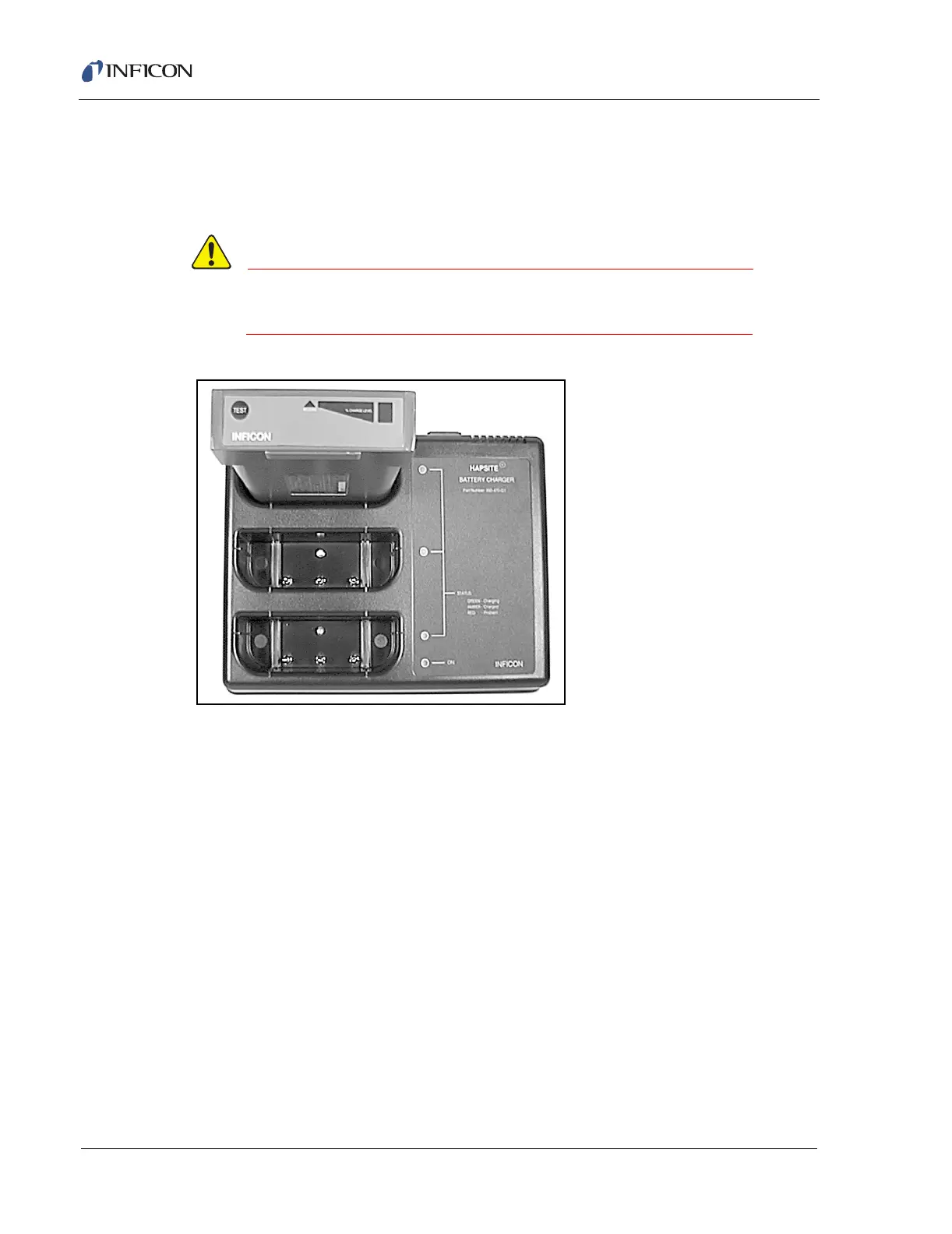

Figure 2-58 Battery Charger
The Battery Charger operates from a range of nominal AC voltages from 100 to
230 V. It will continue to operate without internal damage at a voltage as low as
90 V and as high as 253 V. The frequency can be from 50 to 60 Hz. The Battery
Charger draws 120 W when fully loaded.
The AC power connects to the Battery Charger through a Type IEC 320 male plug,
a two-wire grounded connector rated for the full range of voltages. The connector
is recessed at the right-hand side of the rear of the Battery Charger and
incorporates a pair of fuses.
The Battery Charger is designed for indoor use at ambient temperatures from 5 °C
to 35 °C (41 to 95 °F). The Battery Charger is not designed for exposure to
contaminants since decontamination is not possible.
2.11.2.1 Battery Charger Components Received
Shipment of the Battery Charger comprises the charger, a power cord, and spare
fuses.
