15.7.6 Part 5: Activation of the NEG Pump
1 Click on the Service Module tab of the Properties menu.
2 Click on the Service button. See Figure 15-42.

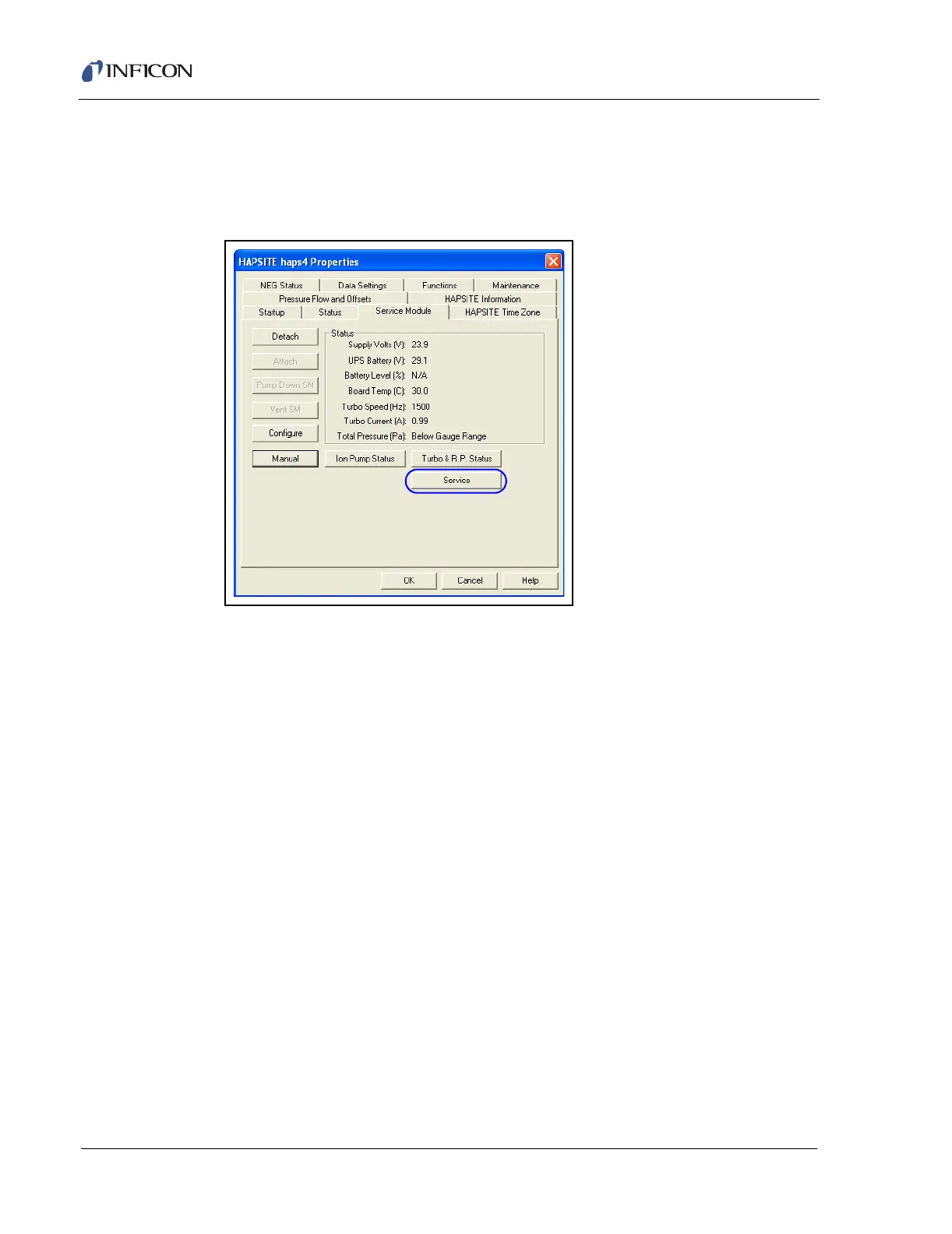

Figure 15-42 Service Button on the Service Module Tab
3 Use the Activate NEG settings below as a guideline.
HAPSITE Pump Down Time (min) = 60
 NEG Activation Power (Watts) = 30
 Activation Time (min) = 480
 NEG Run Temp (C) = 400
 Cooldown Time (min) = 720
See Figure 15-43.
