10 - 3
IPN 074-397-P1G
HAPSITE Smart Operating Manual
10.1.2 Event Log Files
Event Log Files are created automatically by the system to record system state
information (such as heating, valve changes, etc.) for future reference. These files
are created daily when running the HAPSITE using the PC software. These files
are saved on the PC. Refer to section 10.2, Saving Files to the PC, on page 10-8,
for more information.
10.1.3 Data Files
Data files are automatically saved to the HAPSITE hard drive, in a data directory
under a folder named the same as the Method used to run the analysis. For
example, in the case where a Method named Method01 was used to run the
analysis, the folder where files are saved for that method would be data\Method01\.
The default naming convention for these files is to use the method name and add
an underscore and 3 digits to the end, starting with _001. This file name would then
be incremented each time a new analysis is performed. The name may be modified
by selecting the Method Editor - Data page, shown in Figure 10-4.

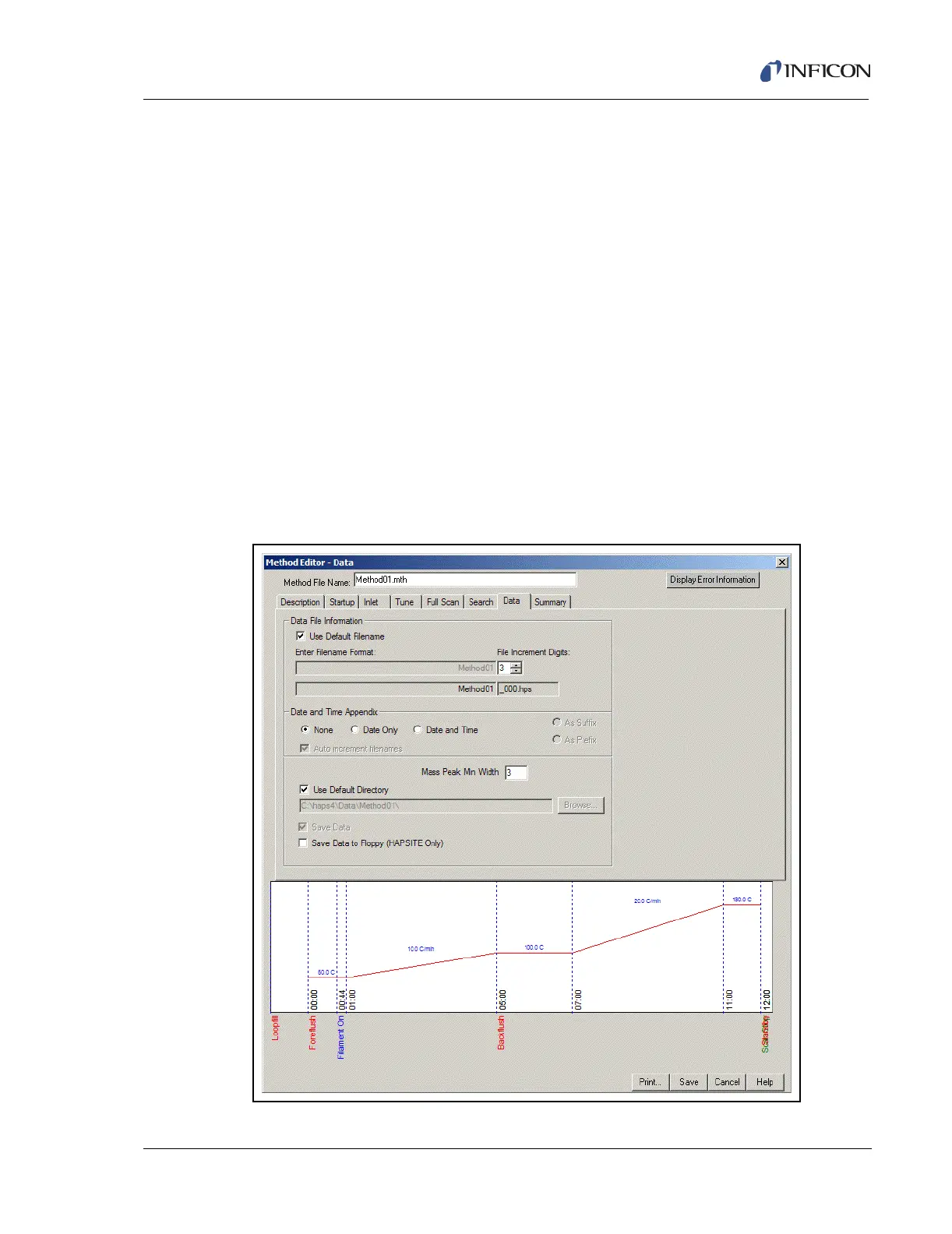

Figure 10-4 Method Editor - Data, Showing File Name Options
