Turbo Speed (Hz) . . . . . . . . . . . . . . Indicates the speed of the Turbo Pump in
hertz (equivalent to rotational speed in
revolutions per second).
Turbo Current (A) . . . . . . . . . . . . . Indicates the current draw of the Turbo Pump
in amperes.
Total Press (Pa). . . . . . . . . . . . . . . . The vacuum pressure in the Mass
Spectrometer.
14.6 Starting Up HAPSITE on the Service Module
Damage to the Turbo pump may result from moving the
Service Module while the Service Module pumps are
operating. If the Service Module must be moved and the
HAPSITE is Attached (Turbo Pump is running), first
Detach the HAPSITE. See section 14.8, Detaching the
HAPSITE, on page 14-17.
Before turning on power to the Service Module, refer to section 2.7, Service
Module, on page 2-18 for the physical setup instructions.
Power for the HAPSITE is provided through the Service Module, as long as the
Service Module is connected to power and turned on. Starting up the HAPSITE
involves opening the front panel and pressing the toggle Power button, then
releasing the button. The power button inside the front panel of the HAPSITE is
shown in Figure 14-13.

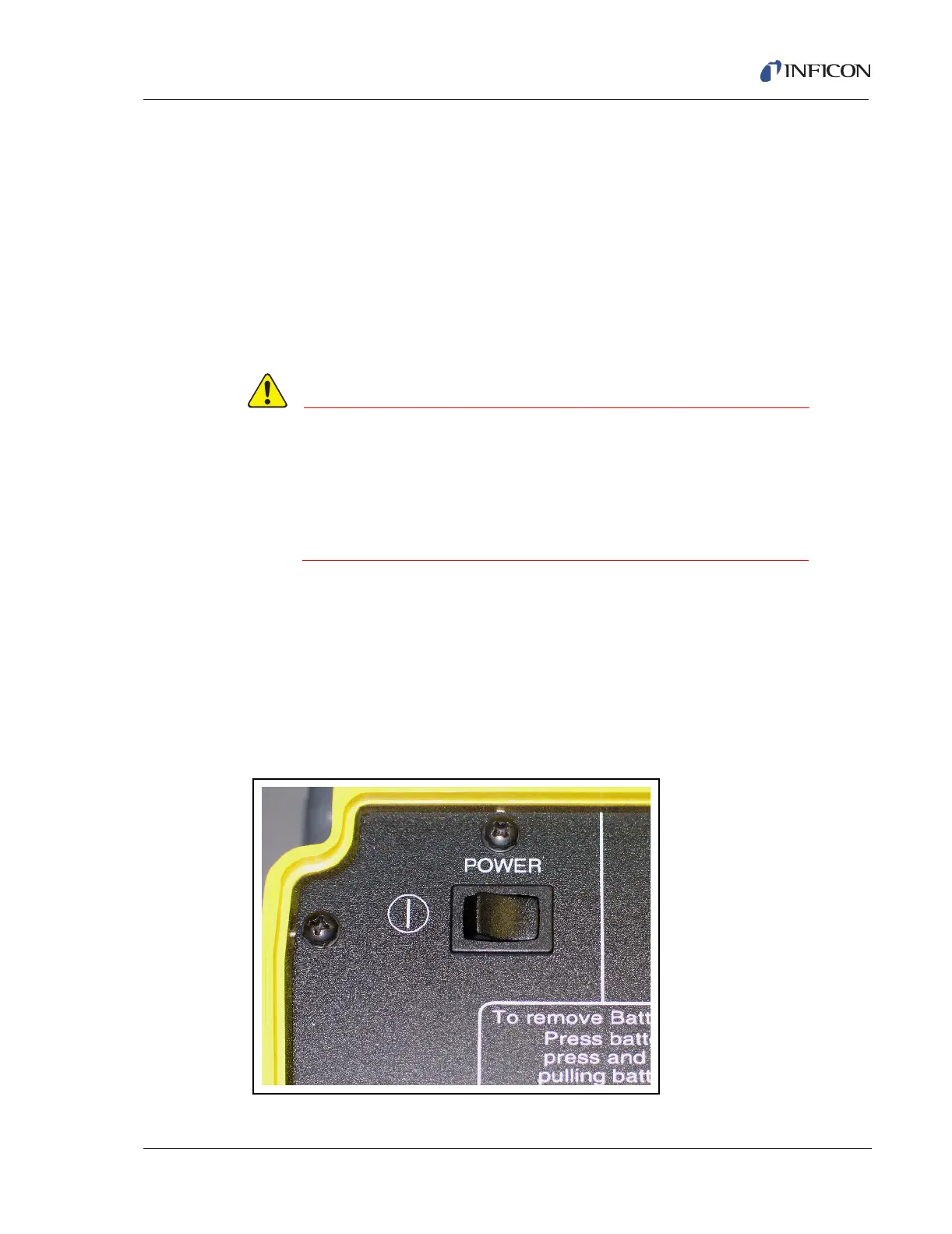

Figure 14-13 Power Button Inside HAPSITE Front Cover
