14 - 10
IPN 074-397-P1G
HAPSITE Smart Operating Manual

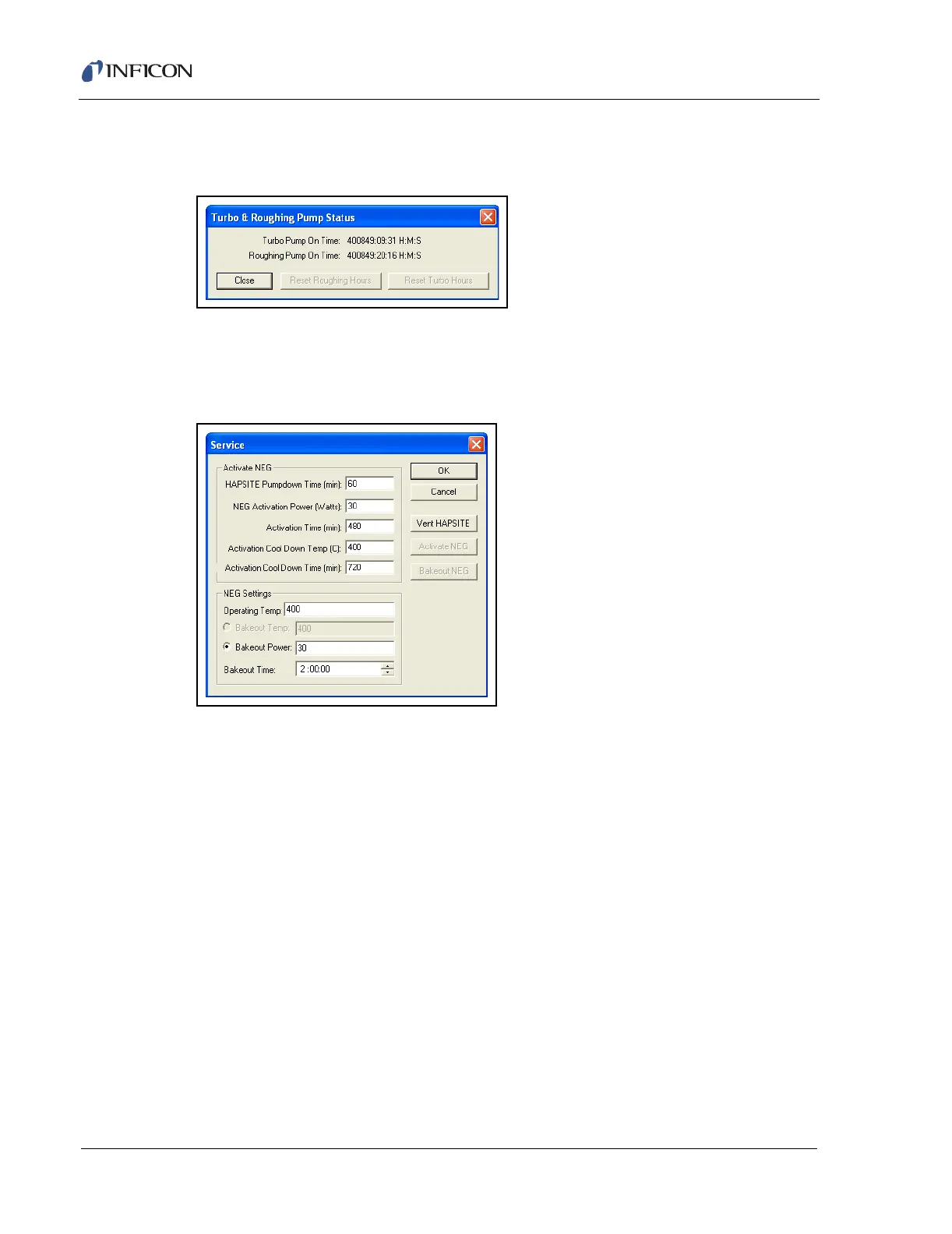

Turbo & R.P. Status . . . . . . . . . . . . Displays the Turbo & R.P. Status. See Figure
14-11.
Figure 14-11 Turbo & Roughing Pump Status Window
Service . . . . . . . . . . . . . . . . . . . . . . Contains controls to Activate NEG, Vent
HAPSITE and Bakeout NEG. See Figure
14-12.
Figure 14-12 Service Window
The following status items are reported:
Supply Volts (V) . . . . . . . . . . . . . . . The voltage being supplied to the HAPSITE
(normally about 24).
UPS Battery (V) . . . . . . . . . . . . . . . The Uninterrupted Power Supply (UPS)
voltage, nominally 24 V.
Battery Level (%) . . . . . . . . . . . . . . Displays the charge percentage of the
HAPSITE battery (inserted in the battery
compartment of the Service Module), as a
percentage of the nominal design capacity.
Displays “No Battery" if a battery is not
present.
Board Temp (C) . . . . . . . . . . . . . . . Displays the temperature near the processor
board in the Service Module in degrees
centigrade.
