12 - 9

IPN 074-397-P1G

HAPSITE Smart Operating Manual

12.3.6 Extracted Mass Peaks

Displays the mass peaks and relative percentages for the selected analyte. See

Figure 12-6.

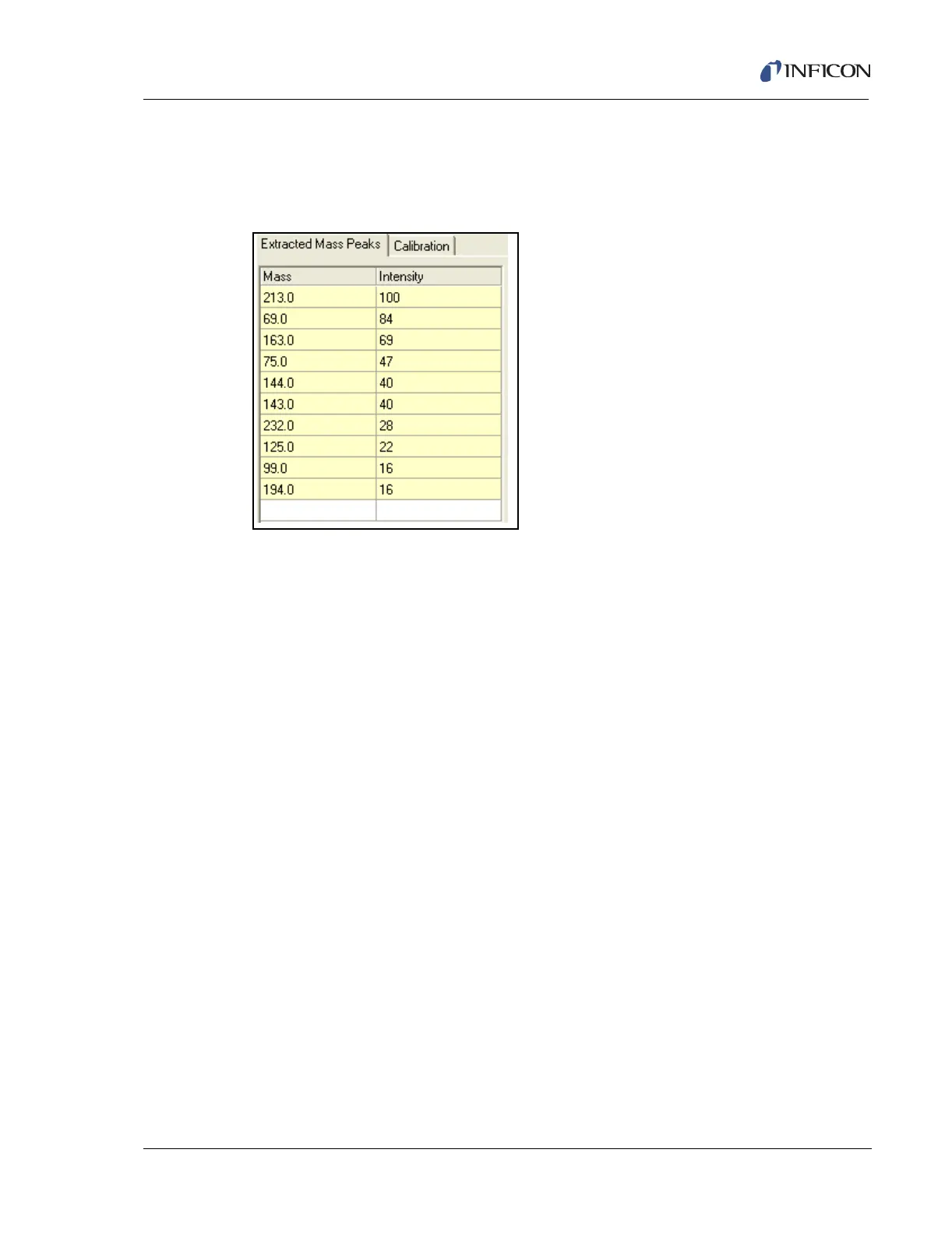

Figure 12-6 Extracted Mass Peaks

12.3.7 Calibration

Displays the calibration curve and curve statistics for the selected analyte.
