14 - 16

IPN 074-397-P1G

HAPSITE Smart Operating Manual

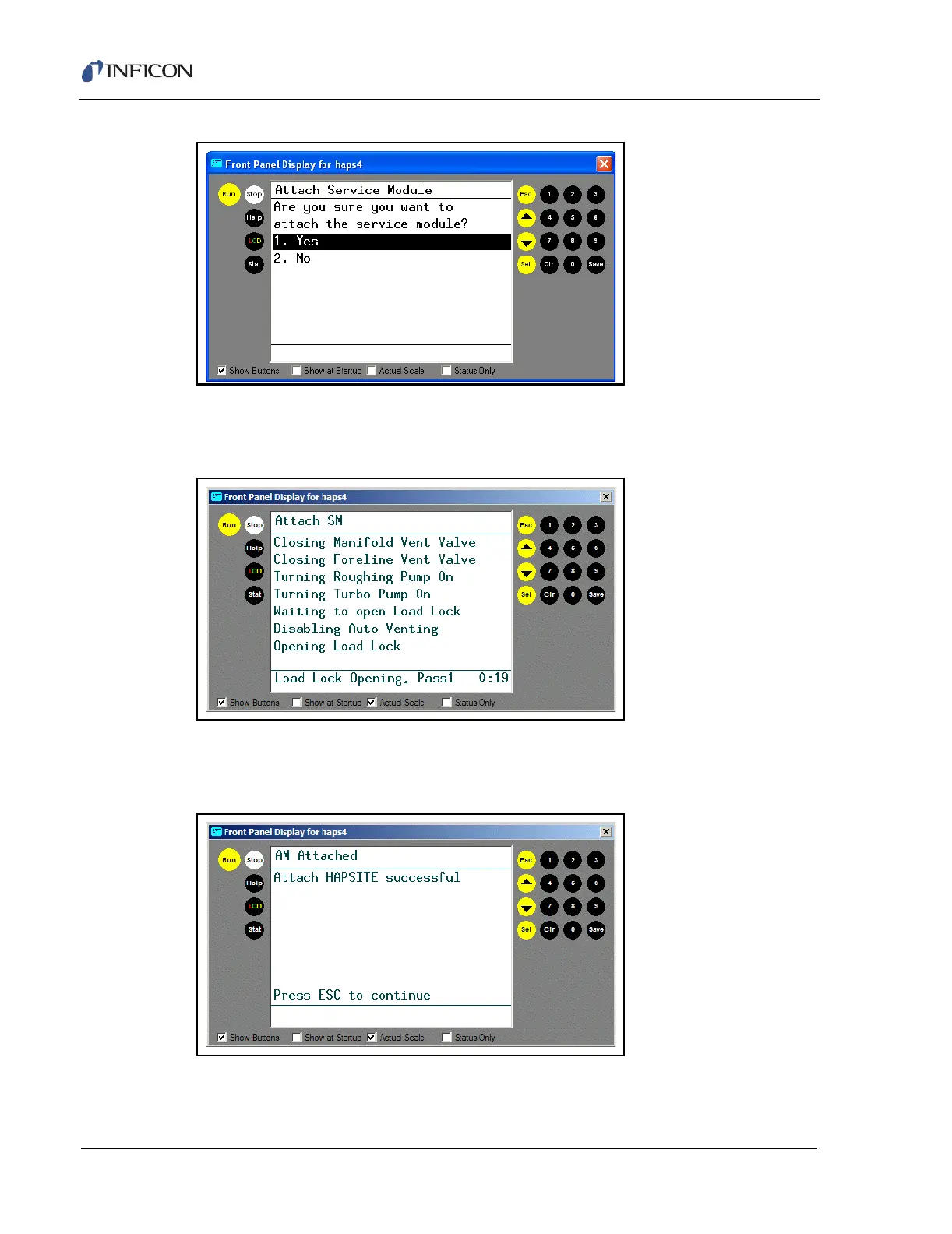

Figure 14-21 Service Module Attach - Confirm Screen

The current status of the system will be displayed and updated, as shown in Figure

14-22.

Figure 14-22 Attach HAPSITE Status

Once the Attach SM operation has completed, the system will show the Attach

HAPSITE successful screen shown in Figure 14-23.

Figure 14-23 Attach HAPSITE Successful
