14 - 19
IPN 074-397-P1G
HAPSITE Smart Operating Manual

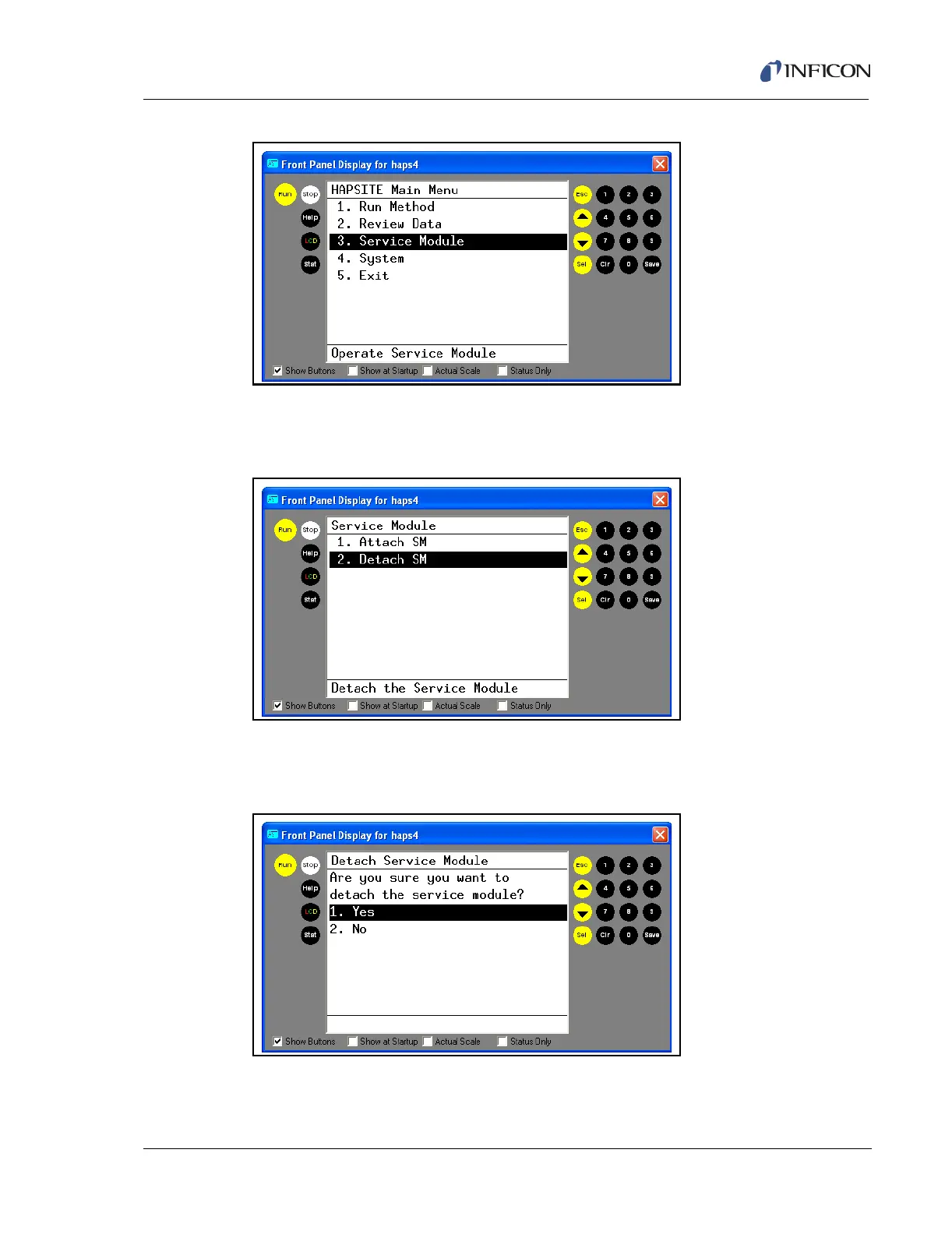

Figure 14-29 HAPSITE Front Panel - Main Menu Listing Menu Item 3. Service Module
The resulting screen, shown in Figure 14-30, has two options: 1. Attach SM and
2. Detach SM.
Figure 14-30 Service Module Screen on HAPSITE Front Panel Display
Select number 2. Detach SM. The screen shown in Figure 14-31 will appear asking
to continue the Detach. Select 1. Yes, to continue with the detach.
Figure 14-31 Service Module Detach - Confirm Screen
The current status of the system will be displayed and updated, as shown in Figure
14-32.
